LEGRAND X-light 180 Manual

Emergency lighting luminaires with LEDs

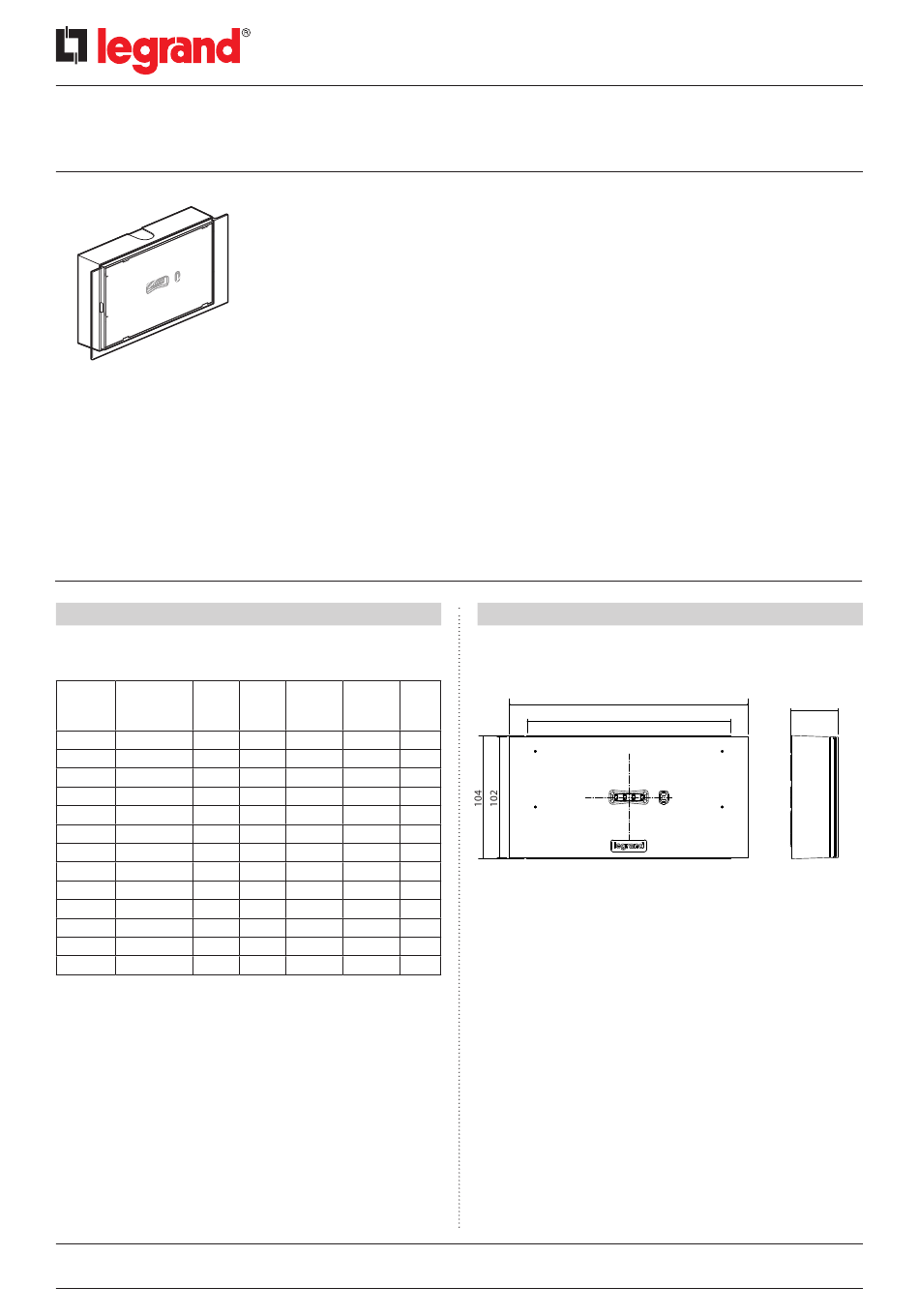

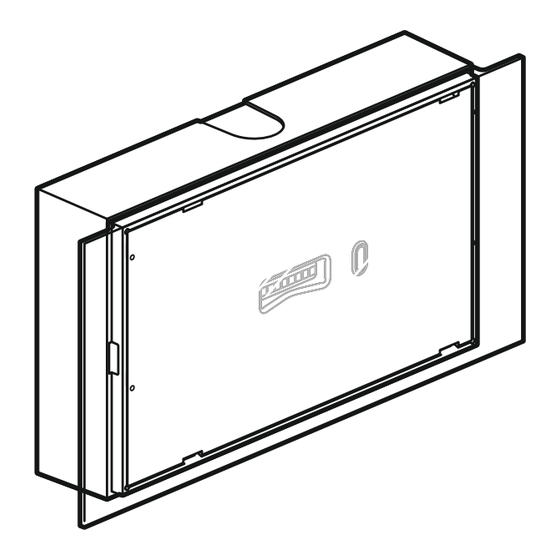

X-light 180
230 V standard
1. DESCRIPTION
IP 42 - IK 07 emergency lighting luminaires with LEDs
Class II: 0
Cat. No. Flux/ Mode M pwr
standby
power
6 600 51 70 lm/1 hr NM
6 600 52 100 lm/1 hr NM
6 600 53* 100 lm/1 hr NM
6 600 54 200 lm/1 hr NM
6 600 57 200 lm/2 hrs NM
6 600 59 100 lm/3 hrs NM
6 600 60* 100 lm/3 hrs NM
6 600 72 100 lm/1 hr M/NM
6 600 74 200 lm/1 hr M/NM
6 600 75 350 lm/1 hr M/NM
6 600 77 200 lm/2 hrs M/NM
6 600 79 100 lm/3 hrs M/NM
6 600 80* 100 lm/3 hrs M/NM
* products supplied with label
Technical data sheet: S000118530EN_5
NM pwr Batteries No. of
cons. cons. LEDs
(W) (W)
- 1.45 Ni-Cd 2
- 1.45 Ni-Cd 2
- 1.45 Ni-Cd 2
- 2.2 Ni-Cd 4
- 0.4 Ni-MH 6
- 1.9 Ni-Cd 4
- 1.9 Ni-Cd 4
2.2 0.8 Ni-Cd 4
2.4 1 Ni-Cd 4
1.9 0.4 Ni-MH 8
1.9 0.4 Ni-MH 6
2.5 1 Ni-Cd 4
2.5 1 Ni-Cd 4
Updated: 07/09/2023
Cat. No(s): 6 600 51/52/53/54/57/59/60/72/
74/75/77/79/80
CONTENTS
1. Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
3. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
4. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
5. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
6. Compliance and approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
7. Equipment and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1. DESCRIPTION (CONTINUED)
• Dimensions
202
172
• Technical characteristics
Power supply: 230 V± - 50/60 Hz
Equipped with screw terminals 2.5 mm
Class II: 0
Operating temperature: 0°C to +40°C
Connection to remote control 0 039 00/01 for setting to rest mode during
intentional mains power breaks.
Remote control input terminals protected against connection errors.
Conforming to standards: UNE EN 60598-2-22: 2014 + AMD: 2020
Awarded ENEC EN 60 598 2-22 quality mark and AENOR quality mark
(Made in Spain only).
Product for surface mounting on walls or ceilings and flush mounting in
ceilings with accessory 6 601 95/95BK.
Page
40
max. (draw-out connector).
2
