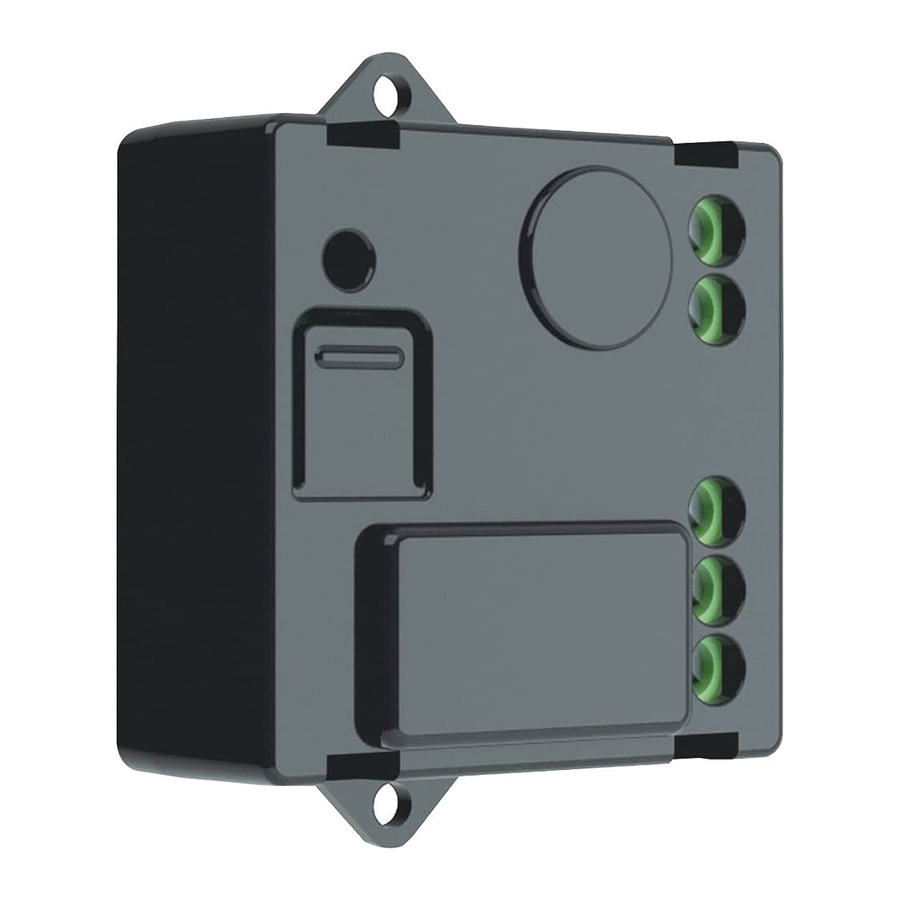

Connected lighting micromodule
In default mode (on/off), this switch works with the following types of bulb:
R | L | |||||
100-240 | 1 x 1.5 mm2 | LED | ||||
240 VAC | Max. | 300 W | (*)100 W | 250 VA | 250 VA | 250 VA |
100 VAC | Max. | 150 W | (*)50 W | 125 VA | 125 VA | 125 VA |
(*) Or 10 bulbs max. For comfortable lighting, we recommend using bulbs of the same type and make.
(**) Use only transformers intended for operation with electronic switches. Take account or transformer losses for power calculations. Transformers should be charged to over 60% of their rated power.
To install or replace a remote switch, only use the product:
Connected lighting micromodule
You can keep the existing push buttons or replace them with wireless controls.
Do not use: a connected switch (with dimmer option) to control a connected lighting micromodule. |
To control your micromodule:
At least one wireless lighting switch from the «... with Netatmo" connected ranges must be paired with it.
To create your wireless lighting two-way switch:
Add one or several wireless lighting switches from the «... with Netatmo" connected ranges.
Safety instructions
This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product's specific mounting location. Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees. Use only Legrand brand accessories.
Install the connected lighting micromodule
The «... with Netatmo» connected lighting micromodule can be easily installed in a ceiling light or in wall lights.
Make sure that the power is off before continuing with the installation.
Frequency bands: 2.4 - 2.4835 GHz
Power level: < 100 mW
N (neutral) = blue
L (live) = any except blue and green/yellow
(earth) = green/yellow
To add a connected product to your connected installation, you should follow the instructions:
LEGRAND - Pro and Consumer Service - BP 30076
87002 LIMOGES CEDEX FRANCE • www.legrand.com
SIMPLIFIED EU DECLARATION OF CONFORMITY
The undersigned,
Legrand
declares that the radio-electric equipment referred to in these instructions complies with directive 2014/53/EU.
The full text of the EU declaration of conformity is available on the following website:
www.legrandoc.com
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Download LEGRAND 0 648 88 - Connected Lighting Micromodule Quick Start Guide
