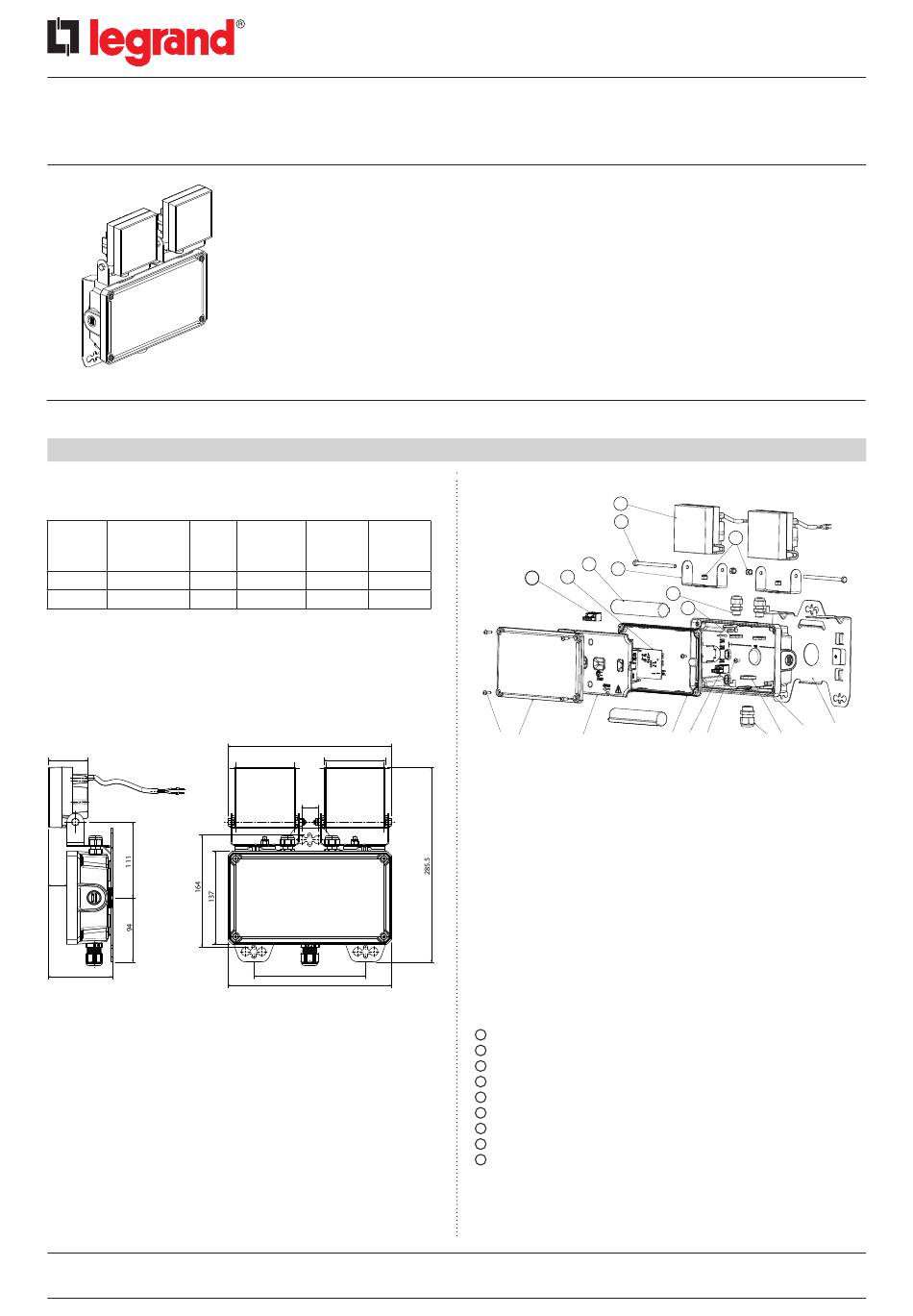

Standard IP65 spotlight unit
1. DESCRIPTION
Background/emergency evacuation spotlight units IP 65 - IK 07 - Class II
Cat. No.
Flux/
Mode
Battery life
6 614 62 1500 lm/1 hr
NM
6 614 63 2500 lm/1 hr
NM
• Dimensions
57.2
27
93.5
Product volume: 6.4 dm
3
• Technical characteristics
Product for surface mounting on walls or ceilings
LED spotlight units
Fitted with 1x2.5 mm² automatic connection terminals
Remote control input terminals protected against connection errors
Power supply: 230 V± - 50/60 Hz
Operating temperature: 0°C to +35°C
Built-in remote control function allows it to be set to rest mode from
the electrical panel if the lighting circuit is switched off intentionally.
Technical data sheet: S000124877EN_2
NM pwr
Batteries
Product
cons. (W)
weight
(kg)
0.9
LiFePO4
2.12
0.9
LiFePO4
2.38
240
89
24
164
240
• Materials
13
12
11
Metal plate
Weatherproof box: Black polycarbonate, self-extinguishing
850°C 30 s
PG13.5 cable gland locknut, black
Cable gland: polyamide self-extinguishing 850°C 30 s
M4x8 screw
Connector
‡
Transparent seal: UV SEBS
ˆ
Reflector: black polycarbonate, self-extinguishing
850°C 30 s
‰
Diffuser: transparent polycarbonate, self-extinguishing
850°C 30 s
Š
Pozidrive screw
Connector
11
Circuit board
12
Battery
13
PG9 cable gland locknut, black
14
Cable gland: polyamide self-extinguishing 850°C 30 s
15
Metal clamp
16
M6 x 110 screw
17
Spotlight
18
M6 nut
19
Updated:
Cat. No(s): 6 614 62/63
CONTENTS
1. Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
3. Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
4. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
5. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
6. Compliance and approvals . . . . . . . . . . . . . . .6
7. Equipment and accessories. . . . . . . . . . . . . . .6
18
17
19
16
15
14
Created: 16/04/2024
Page
