HP-4 Indirect/Direct Installation Instructions
Regressed Luminaires
Use Same Instructions
Overview
NOTES
If luminaire contains a sensor refer to the Sensor Addendum.
•
All power connections should be installed according to
•
local/national codes by a Certified Electrician.
This installation requires proper support as each luminaire
•
is being installed.
DO NOT attempt to join luminaires together on the floor.
•
Damage may result when lifted.
HELPFUL
0-10V
Effortless
Universal &
VIDEOS
Dimming
Access
Robust Joints
Step 1
Suspension & Mounting
Page 2
Step 2
Identification & Preparation
Step 3
Page 3
Page 4

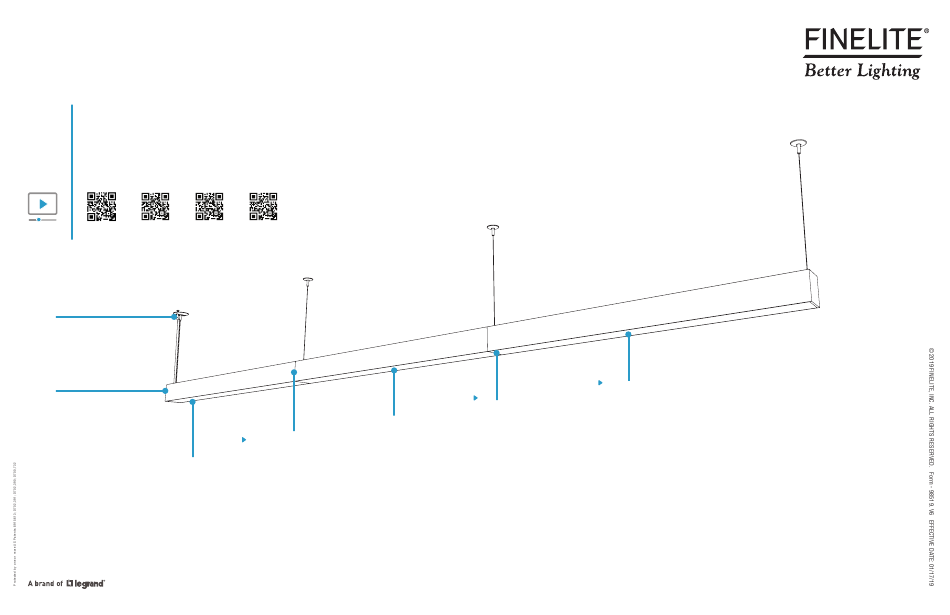

This is a hypothetical build to show the capabilities of this luminaire family and mount type. Your build may vary.
Simple
Plug-Together
Wiring
Step 5
Step 4
Page 6
Page 5
Step 7
Closing Luminaires
Step 6
Page 8
Page 7
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
1 of 8
Advertisement
Table of Contents
Related Manuals for LEGRAND Finelite HP-4
Summary of Contents for LEGRAND Finelite HP-4
-
Page 1: Table Of Contents
HP-4 Indirect/Direct Installation Instructions Regressed Luminaires Use Same Instructions Overview NOTES If luminaire contains a sensor refer to the Sensor Addendum. • All power connections should be installed according to • local/national codes by a Certified Electrician. This installation requires proper support as each luminaire •... -
Page 2: Step
HP-4 Indirect/Direct Installation Instructions Step 1 - Mounting & Suspension Mounting Options Option 1 T-Bar Mounting - GridBox™ and Caddy Clips GridBox™ Install GridBox™ and electrical conduit at feed locations. • (provided) Caddy Clip Install caddy clips at mounting point locations. •... - Page 3 HP-4 Indirect/Direct Installation Instructions Step 2 - Identification & Preparation A. Identify Luminaires B. Remove Downlight Diffuser C. Remove Uplight Diffuser C. Remove Uplight Diffuser Protective Bag Protective Bag Arrange luminaires in order according to ID# at their install locations. CAUTION Downlight Diffuser Uplight Diffuser...
-
Page 4: Mounting Starter To Structure
HP-4 Indirect/Direct Installation Instructions Step 3 - Mounting Starter to Structure A. Mount Starter to Structure B. Make Electrical Connections WIRING LEGEND Mounting Bolt (see options, p.2) Black Line Voltage White Neutral Line Voltage Green Ground Support Canopy (provided) Grey Dimming 0-10V DC Purple... -
Page 5: Joining Luminaires
HP-4 Indirect/Direct Installation Instructions Step 4 - Joining Luminaires A. Mount Joiner/Ender to Structure B. Join Luminaires Once luminaires are aligned together, DO NOT attempt to join joiner luminaire is not yet secure. luminaires together on the floor. Ensure it does not slide off as it rests Damage may result when lifted. -
Page 6: Opening Luminaires
HP-4 Indirect/Direct Installation Instructions Step 5 - Opening Luminaires Release Downlight Backplates Putty Knife Option Backplate Backplate Clip Putty Knife Joiner/Ender Starter Flathead Screwdriver Option Backplate Backplate Clip Flathead Screwdriver Downlight Backplate • NOTE: For independent luminaires, backplates do not need to be released. Release the backplates from clips by sliding the blade of a putty knife behind backplate edges. -
Page 7: Securing Luminaire Joints
HP-4 Indirect/Direct Installation Instructions Step 6 - Securing Luminaire Joints A. Secure Joint with Yoke Brackets B. Make Electrical Connections IN ALIGNMENT CORRECTLY INSTALLED Cross Section View Luminaire Joint Luminaire Joint Joiner/Ender Plug-Together Wiring Starter Joiner/Ender Aligner Sleeve Aligner Sleeve Level Luminaires Joiner/Ender... - Page 8 HP-4 Indirect/Direct Installation Instructions Step 7 - Closing Luminaires A. Release Uplight Backplate B. Crimp Cables C. Final Step - Replace Backplates & Diffusers Uplight Backplate #8-18 x 1/4" Screw (provided) Aircraft Cable Uplight Backplate ID: 3 Safety Crimp (provided) ID: 2 ID: 3 ID: 1...
