Rath Command Center Installation & Operation Manual page 6

Option 2: 64-128 Zone VoIP Systems
• On top of each RJ45 interface there is a label indicating connection:
• S01-S_ is the port used for connecting HARDWIRED Emergency Phones
IP EMERGENCY PHONES DO NOT CONNECT TO THE DISTRIBUTION MODULE
• TD (1-2)(3-4) with a dot under the D is the port used for connecting Command Center Phone(s)
• TD (1-2)(3-4) with a dot under the T is the port used for outside Telco Line
• Plug the supplied RJ45 pigtail cables into the RJ45 interface connections following the wiring chart and pin-out
color scheme below
• Refer to the top of the cards to see what type of RJ45 interface and number of extensions
• The system uses T568-A for pin-out wiring
• The first card installed will always be:
• Port 1: (S01-S04) Connection for 4 HARDWIRED Emergency Phones
IP EMERGENCY PHONES DO NOT CONNECT TO THE DISTRIBUTION MODULE
• Port 2: (S05-S08) Connection for 4 HARDWIRED Emergency Phones
• Port 3: (S09-S12) Connection for 4 HARDWIRED Emergency Phones
• Port 4: (S13-S16) Connection for 4 HARDWIRED Emergency Phones
• Port 5: (D1-2) Connection for up to 2 Command Center Phones
• Port 6: (T1-2) Connection for up to 2 Outside Telco Lines

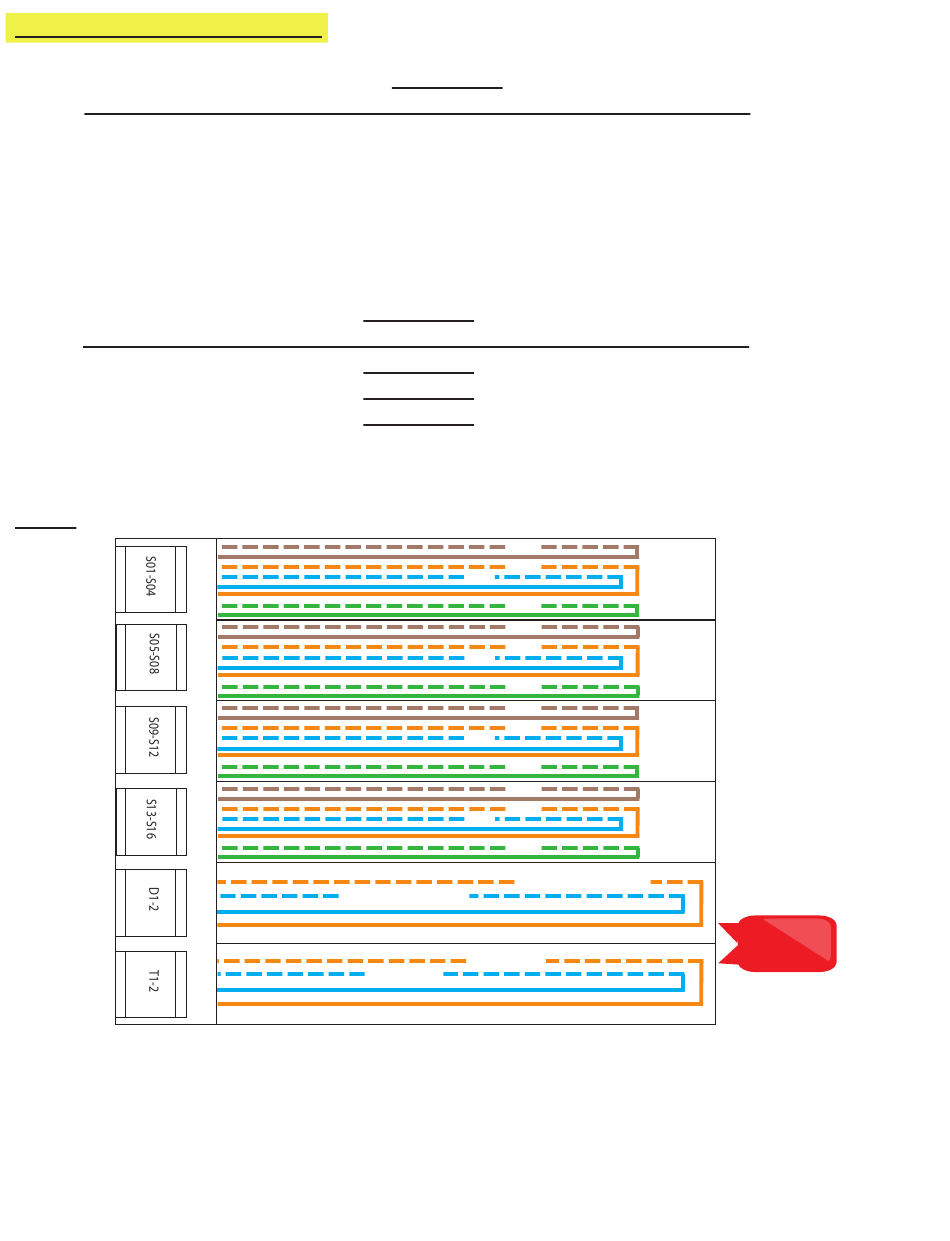

Card 1:
Once all RJ45 connections are made, connect twisted, shielded pairs onto the pigtail sides of the wiring harnesses.
7. Turn on the 120vac power supply (if not already done).
8. Turn on the Distribution Module.
2004
2002
2001
2003
2008
2006
2005
2007
2012
2010
2009
2011
2016
2014
2013
2015
COMMAND CENTER 1
TELCO LINE 2
TELCO LINE 1
PHONE 4
PHONE 2
PHONE 1
PHONE 3
PHONE 8
PHONE 6
PHONE 5
PHONE 7
PHONE 12
PHONE 10
PHONE 9
PHONE 11
PHONE 16
PHONE 14
PHONE 13
PHONE 15
COMMAND CENTER 2
Note: Do not use
the green and
brown pairs
Page 6
