Advantech PCE-2029 Startup Manual

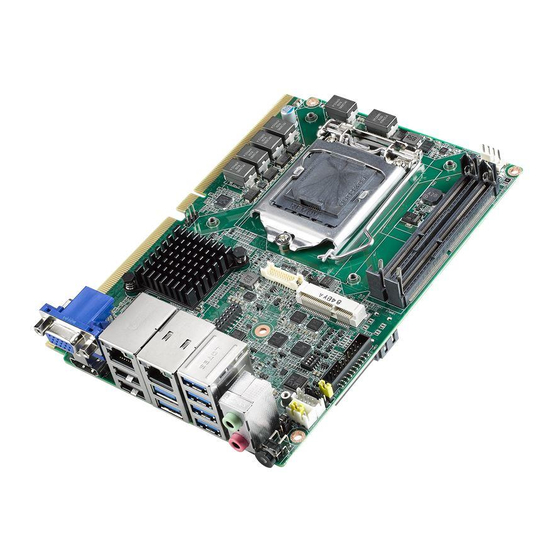

PCE-2029/2129 Compact Industrial Computer System
with 6th/7th Gen Intel® Core™ i CPU Socket (LGA 1151)
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
• PCE-2029/2129 Startup Manual
• Warranty card
• I/O bracket
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note:
Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded at:
www.adobe.com/Products/acrobat/readstep2.
html (Acrobat is a trademark of Adobe)
Specifications
Standard Functions
• CPU: LGA1151 6th and 7th Generation Intel® Core™ i7/
i5/i3/Celeron/Pentium
Note:
Intel 7th generation processors only support
Windows 10 (64-bit).
• BIOS: AMI 128 Mb SPI BIOS
• Chipset:
- PCE-2029 : Intel® H110 chipset
- PCE-2129 : Intel® Q170 chipset
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
https://advt.ch/dd116
This manual is for the PCE-2029/2129 series Rev. A1.
Part No. 2041202901
Printed in China
Specifications (Cont.)
• System memory: Supports dual channel DDR4
SODIMM-2133/2400 MHz, 16 GB per slot without ECC
function; Max. capacity is 32GB
Note:
• SATA interface: 2 on-board Serial ATAIII connectors
support data transmission rate up to 600 MB/s. All two
SATAIII ports support Advanced Host Controller Interface
(AHCI) technology. Q170 can support RAID 0, 1, 5, 10.
• LPC interface: Advantech-designed LPC connector sup-
ports TPM module
• Serial ports: 4 serial ports: COM1, COM2 are RS-
232/422/485, COM3,COM4 are RS-232 with BIOS menu
options
• Watchdog timer: 1~255 sec/min timer level intervals
• USB 3.0/2.0: 8 USB ports:
- PCE-2129 : 1/2/3/4/5/6 are USB 3.0, 7/8 USB2.0
- PCE-2029 : 1/2/3/4 are USB 3.0, 5/6/7/8 USB2.0
Graphics
• Q170: Intel® HD Graphics 530, supports DirectX 12
• H110: Intel® HD Graphics 510, supports DirectX 12
Ethernet interface
• Interface: 10/100/1000 Mbps
• Controller:
- PCE-2129 : LAN1: Intel
- PCE-2029 : LAN1: Intel
Audio
• Line-out
• Mic-in
Storage
• SATA x 2
• mSATA x 1
-
PCE-2129 : mSATA/MiniPCIe by Hardware Auto dection
-
PCE-2029 : mSATA
Mechanical and Environmental
• Dimensions (L x W): 180 x 127 mm (7.08" x 5")
• Power Consumption:
Intel Core Intel i7-7700@ 3.60Ghz DDR4 16G x 2
Maximum: +19V at 7.95A , +24V at 6.28A
• Operating temperature: 0 ~ 45° C (depending on CPU)
• Weight: 0.38 kg (weight of board)
2nd Edition
June 2019
Due to the inherent limitations of PC architecture,
the system may not fully detect 64 GB RAM
when 64 GB RAM is installed
I219LM, LAN2: Intel® i210AT
®
I219V, LAN2: Intel® i210AT
®
PCE-2029/2129 Startup Manual 1
