2.2 MIC-3665 Connector Locations

P11/P21/P31: CompactPCI PMC connector
!
CN1/CN2: RJ-45 10/100/1000Base-T/TX connector
!
CN3/CN4: Fiber LC Interface 1000Base-X connector
!
LED1/LED2: LED Activity/Speed (for RJ-45)
!
JP1: Pin connector for LED Activity (for Fiber)
!

2.3 Card Installation

The MIC-3665 is a PCI bus master PMC module. It can be installed only in a
CompactPCI™ board which supports PMC interface. Improper installation of a card
can easily damage the backplane of the chassis. The MIC-3665 install guide helps
you to install and remove the module easily and safely. Follow the procedure below
to install the MIC-3665 into a PMC carrier:
To install a card:
1. Shut off the system power
2. Connect the MIC-3665 to the CPU's PCI mezzanine connector and attach it with
the four screws.
3. Connect the Ethernet Category 5 cable to the RJ-45 connector (or LC cable to the

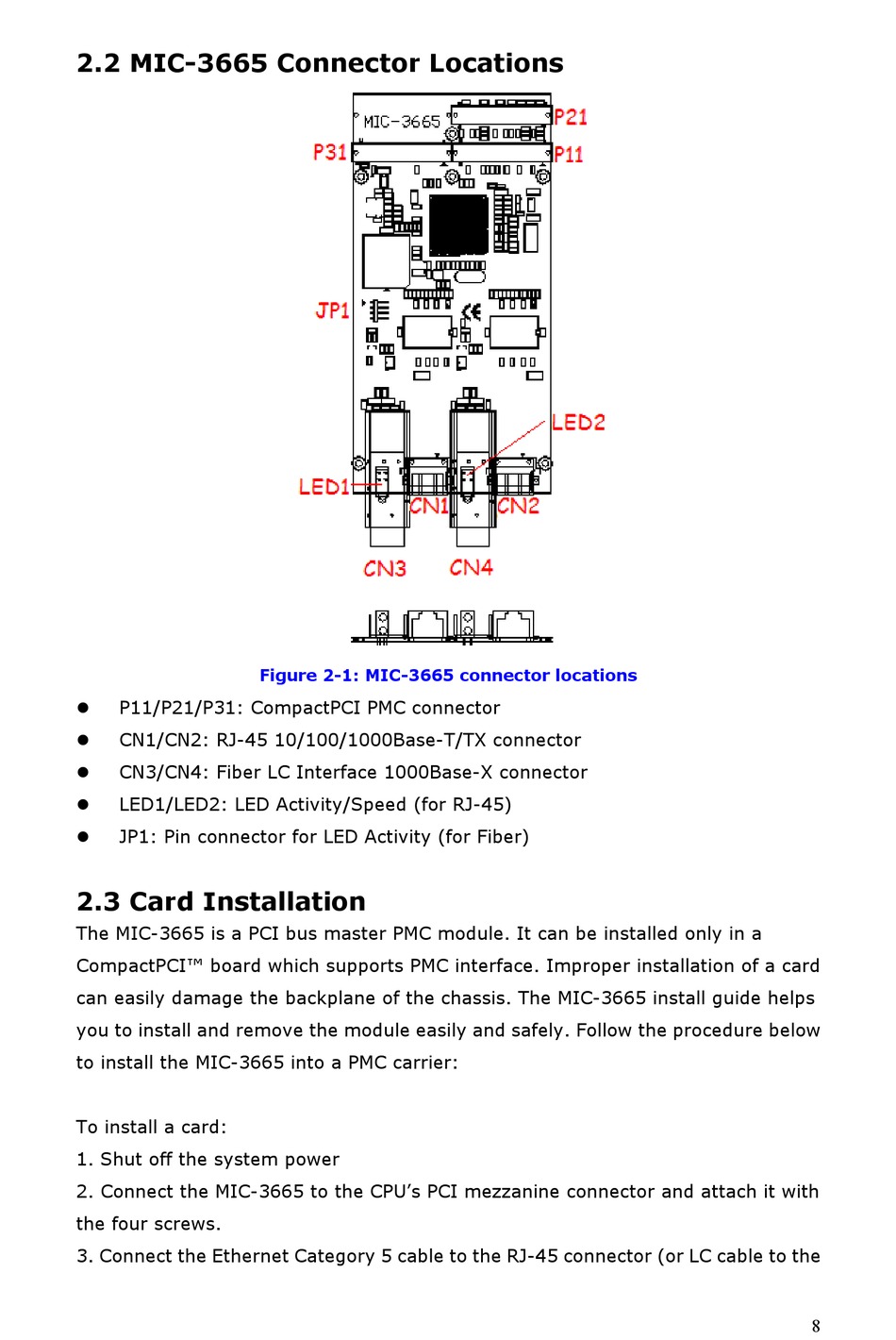

Figure 2-1: MIC-3665 connector locations
8
