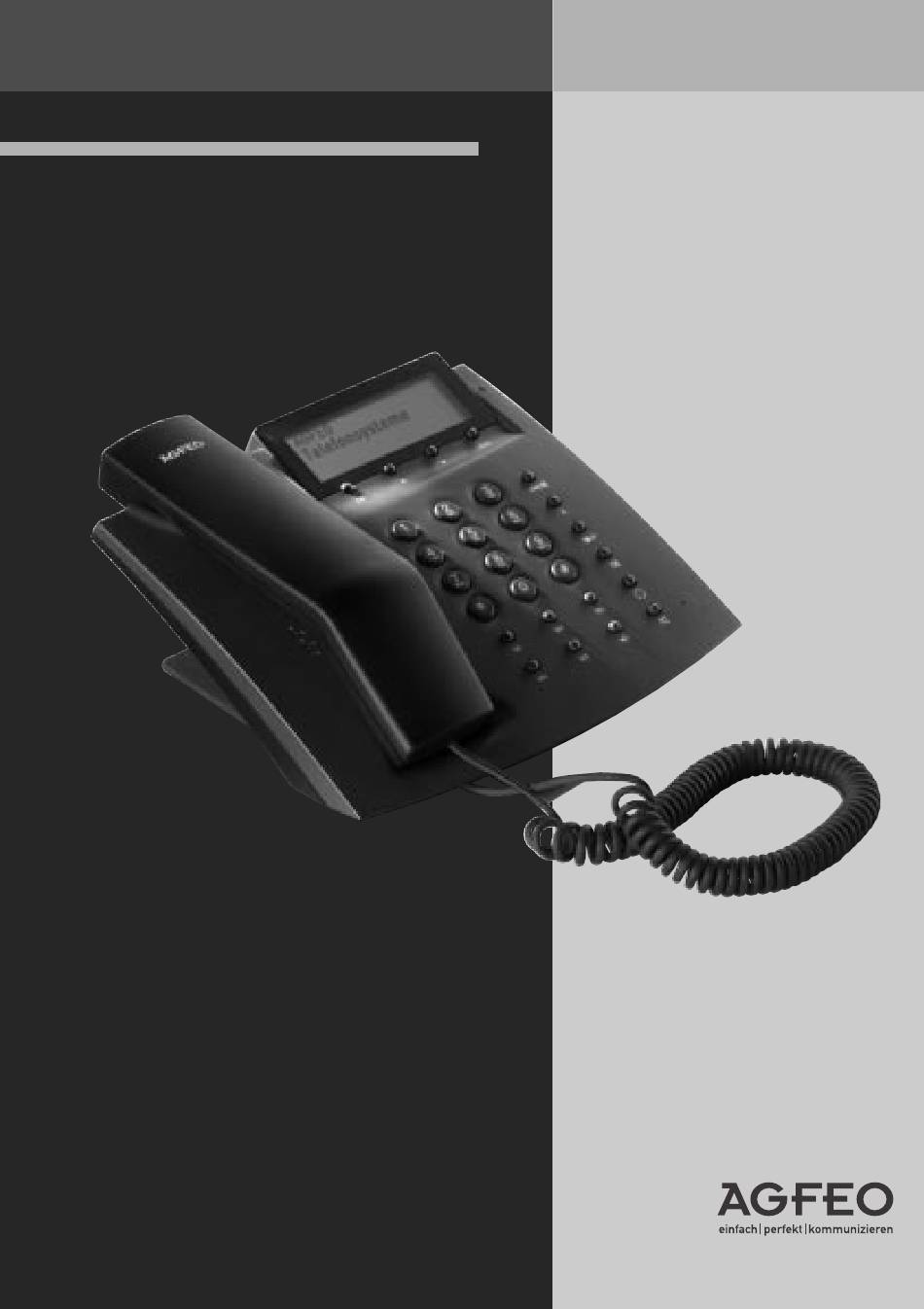

  • Page 1 Comfort Telephone Users Guide AGFEO T 15 Comfort Telephone...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ........................2 Accessories and Content ......................3 ComfortTelephone T 15 ......................3 AGFEO T 15 Buttons ........................4 AGFEO T 15 Buttons ........................5 AGFEO T 15 Display ........................5 Installation ..........................6 To make a call ..........................7 On-Hook Dialling ........................

  • Page 3: Accessories And Content

    Accessories and Content Following items are included in the package of the AGFEO T 15 Comfort Telephone: - Phone base unit - Handset with coil cord - Line cord - AC adaptor - This manual ComfortTelephone T 15 Handset Base unit...

  • Page 4: Agfeo T 15 Buttons

    AGFEO T 15 Buttons Function buttons Description To enter the digits 0-9 To enter * To enter # To confirm an action This button functions as CALL BACK when brwosing incoming calls. Please refer to "Operation of Call Back Function" for details.

  • Page 5: Agfeo T 15 Buttons

    AGFEO T 15 Buttons Function buttons Description To scroll up/down when browsing selections, and to move the cursor to left/right when editing a record. To select the speaker volume from low to high (i.e. Level 1- Level 4) To select ringer level (Off/Low/High) Telephone Line Jack for line cord plug in.

  • Page 6: Installation

    Installation Refer to the Main Diagram section and: 1. Remove the bottom plate by unscrewing the screws. 2. Connect the coil cord to the jack on the base unit. 3. Install batteries: i) Remove the battery compartment door by unscrewing the screw. ii) Insert 4 fresh AA size batteries by observing the +/–...

  • Page 7: To Make A Call

    Language Selection In the state of On-hook, do as follows: – Press and hold DELETE button( – While keeping on pressing DELETE button, press and hold CALL BACK button( – Continuous to keep DELETE and CALL BACK buttons being pressed together, press arrow up until current language setting shown on display.

  • Page 8: Redial

    The call back feature will not dial the phone number if the selected call record phone number is blocked or not available. VIP-Function The VIP Function of your AGFEO T15 signalizes an incoming call from a preset VIP-Number with a "beep" tone. To set a number from the Caller ID memory as VIP - Press and buttons to select the number you want to store as a VIP call.

  • Page 9: One-Touch Memory

    One-Touch Memory One-Touch Memory provides you with the easiest way to make a call to a frequently used number. Storing a phone Number - Enter the Number with receiver on hook. - Press and hold the One-Touch Memory button (M1...M3) , untill the display shows "SAVE OK".

  • Page 10: Two-Touch Memory

    Two-Touch Memory Besides the One-Touch Memory, the AGFEO T 15 is also equipped with 10 Two-Touch Memory banks. Storing a number - Press STORE button ( ) once and the display shows “-->” . - Enter the desired phone number. You may enter * or # buttons into the dialling sequence just like the way you usually make calls to the desired phone number after you have picked up the handset.

  • Page 11: Phonebook

    Phonebook The AGFEO T 15 provides you with a built in phone book with 70 Store Positions. Make a new entry - Press and hold PHONE BOOK button ( ) for about 3 seconds - Enter the phone number for the entry (maximum 18 digits). “ TOO LONG” will appear on the display if more than 18 digits are entered.

  • Page 12: Entering Names With Alphanumeric Keypad

    Dialling a Phonebook Number - Press PHONE BOOK button ( ) and use the arrow keys to find the desired number. - Select a record in the Phone Book. - Use the arrow keys to view the whole number if the display is not showing your full phone book memory.

  • Page 13: Operation Of Caller Id

    Operation of Caller ID Caller ID shows and records caller’s available phone numbers when it rings. Caller ID function only works if your phone line is provided with Caller ID function. In most countries, Caller ID function must be paid and subscribed separately from normal phone function. For details, please consult your phone service provider.

  • Page 14: Declaration Of Conformity

    Declaration of Conformity...
  • Page 16 Ident no. 556 246 Subject to change without notice. AGFEO GmbH & Co. KG No liability can be accepted for Gaswerkstr. 8 errors contained in this document. D-33647 Bielefeld Printed in Germany Internet: http://www.agfeo.de 0034...
