MOUNTING INSTRUCTIONS
Important
Antenna gain and terminating unused antenna connectors on the access point
It is essential for unused antenna connectors on the access point to be terminated with the supplied
rod antenna. The terminating resistor supplied with the adapter AirLancer AN-RPSMA-NJ is suitable
for use with indoor access points. In addition, you must disable the unused antenna connectors in
LCOS (changing the antenna grouping of the respective WLAN module), and configure the antenna
gain of the antenna. The settings can be found in LANconfig at:
Configuration > Wireless LAN > General > Physical WLAN settings > Radio

Operating mode

3x3 MIMO

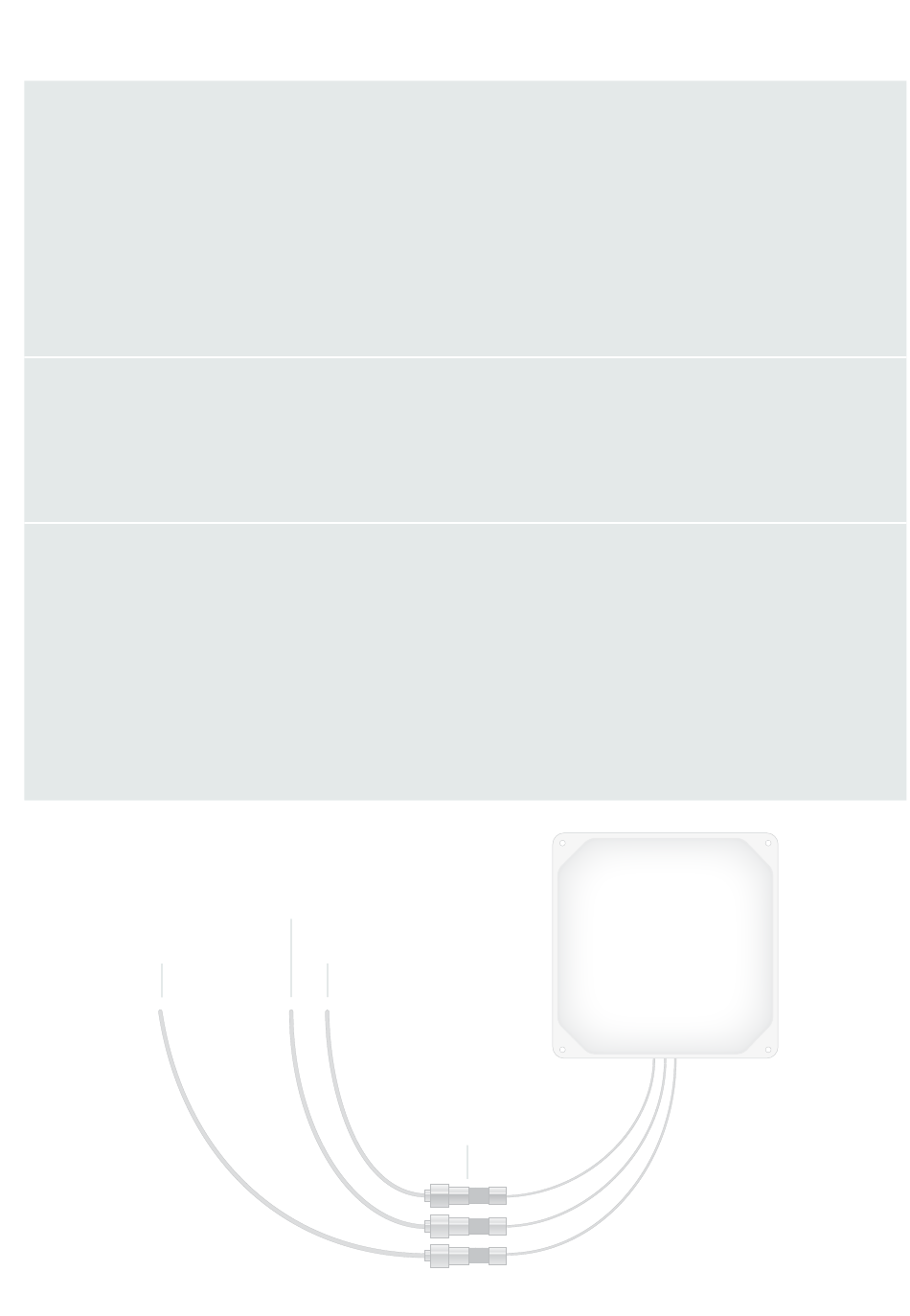

In the 3x3 MIMO operating mode, all three antenna connectors are connected to the same WLAN
module of the access point.
Operating mode
2x2 MIMO & 1x1 MIMO
Apart from its standard operation as a 3x3 MIMO antenna, this antenna can also be used by two
different WLAN modules. For this purpose the connectors marked with -45° and +45° are connected
with the first WLAN module, and the middle connector is connected to the second WLAN module.
The two WLAN modules should not be operated in the same frequency band. Please note that in
this operating mode at least one antenna connector of the access point will be unused and has to be
terminated.
WLAN 2
2.4 GHz / 1x1 MIMO
WLAN 1 WLAN 1
5 GHz / 2x2 MIMO 5 GHz / 2x2 MIMO
Surge Arrester AirLancer SN-ANT
(not included)
