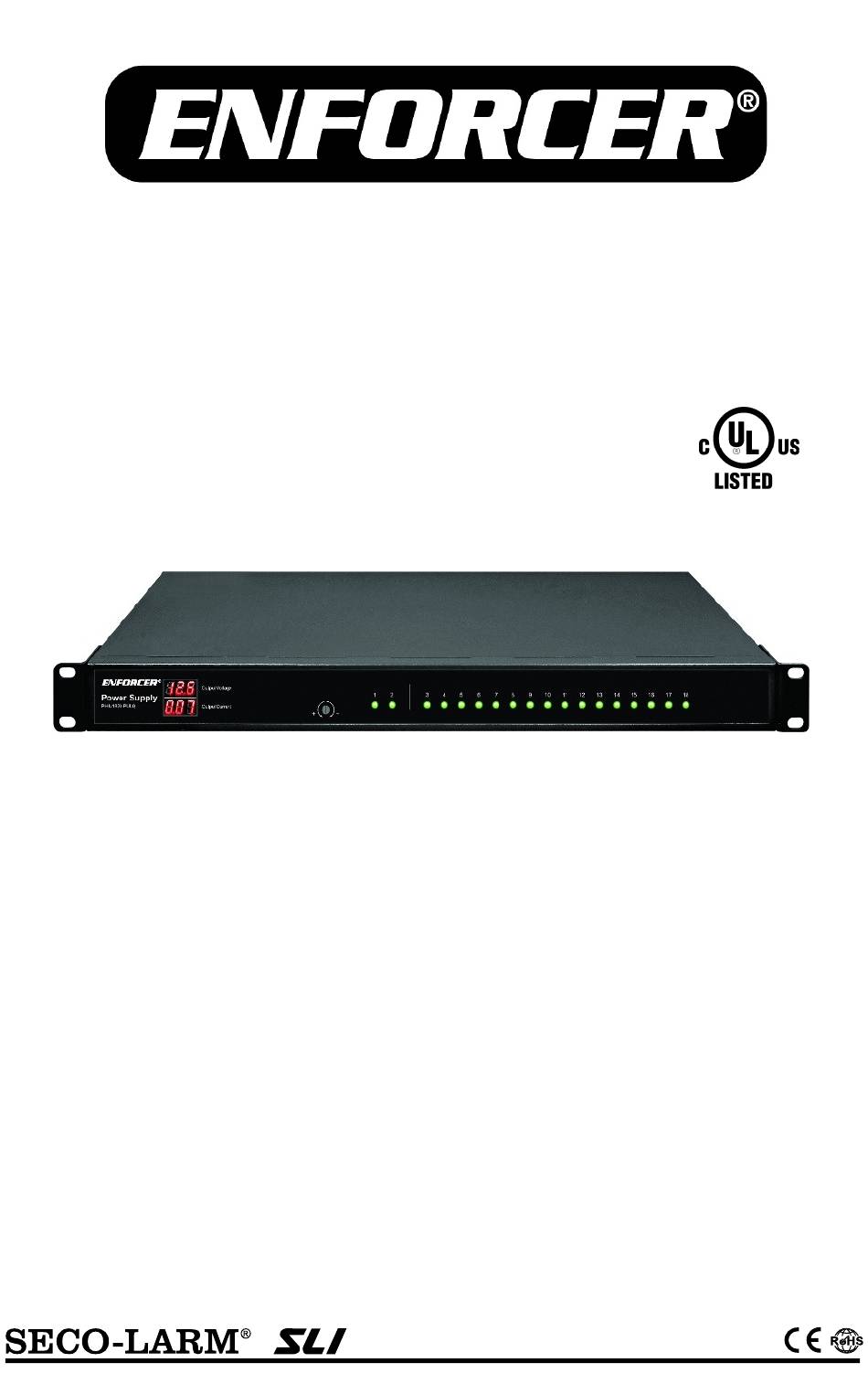

ENFORCER PH-U1820-PULQ Manual

Rack-mount dc cctv power supply

Download this manual

Rack-Mount DC CCTV Power Supply

Features:

• 18 Outputs, 20A total

• PTC fuse protected outputs, 16 outputs at

1.6A and 2 outputs at 5A

• 11.7~13.6 VDC field-adjustable output

• 110/220 VAC Input with selection switch

• LCD Display of output voltage and total

output current

PH-U1820-PULQ

Manual

• LED Status indicators for each output

• Removable screw terminal blocks for

convenient installation and reliable

connections

• For rack mounting or stacking on a shelf

• Compact 1U size fits standard racks

• Attractive, high-tech industrial design

AUDIO/VIDEO APPARATUS

26BZ

Need help?

Do you have a question about the PH-U1820-PULQ and is the answer not in the manual?

Page 1 PH-U1820-PULQ Rack-Mount DC CCTV Power Supply Manual AUDIO/VIDEO APPARATUS 26BZ Features: • 18 Outputs, 20A total • LED Status indicators for each output • PTC fuse protected outputs, 16 outputs at • Removable screw terminal blocks for 1.6A and 2 outputs at 5A...
Page 2: Parts List
ENFORCER Rack-Mount DC CCTV Power Supply Introduction: The ENFORCER Rack-Mount DC CCTV Power Supply includes a LCD display of output current and voltage and fits into standard 19” IT racks to integrate smoothly into an existing rack-mount setup. The unit provides flexible power and mounting options to best suit a company’s CCTV power needs in an attractive, compact package.
Page 3: Installation Notes
ENFORCER Rack-Mount DC CCTV Power Supply Installation Notes: 1. Double-check DC output voltage on the unit's display and test at the camera end of each power cable before connecting cameras. 2. FOR INDOOR USE ONLY. Do not install the unit outdoors or expose it to rain or moisture.
Page 4: Troubleshooting
ENFORCER Rack-Mount DC CCTV Power Supply Replacing the Main Fuse: 1. The main fuse is at the back of the unit, between the AC cord socket and the ON/OFF switch. 2. To check or replace the fuse, first power down the unit and disconnect the power cord.
