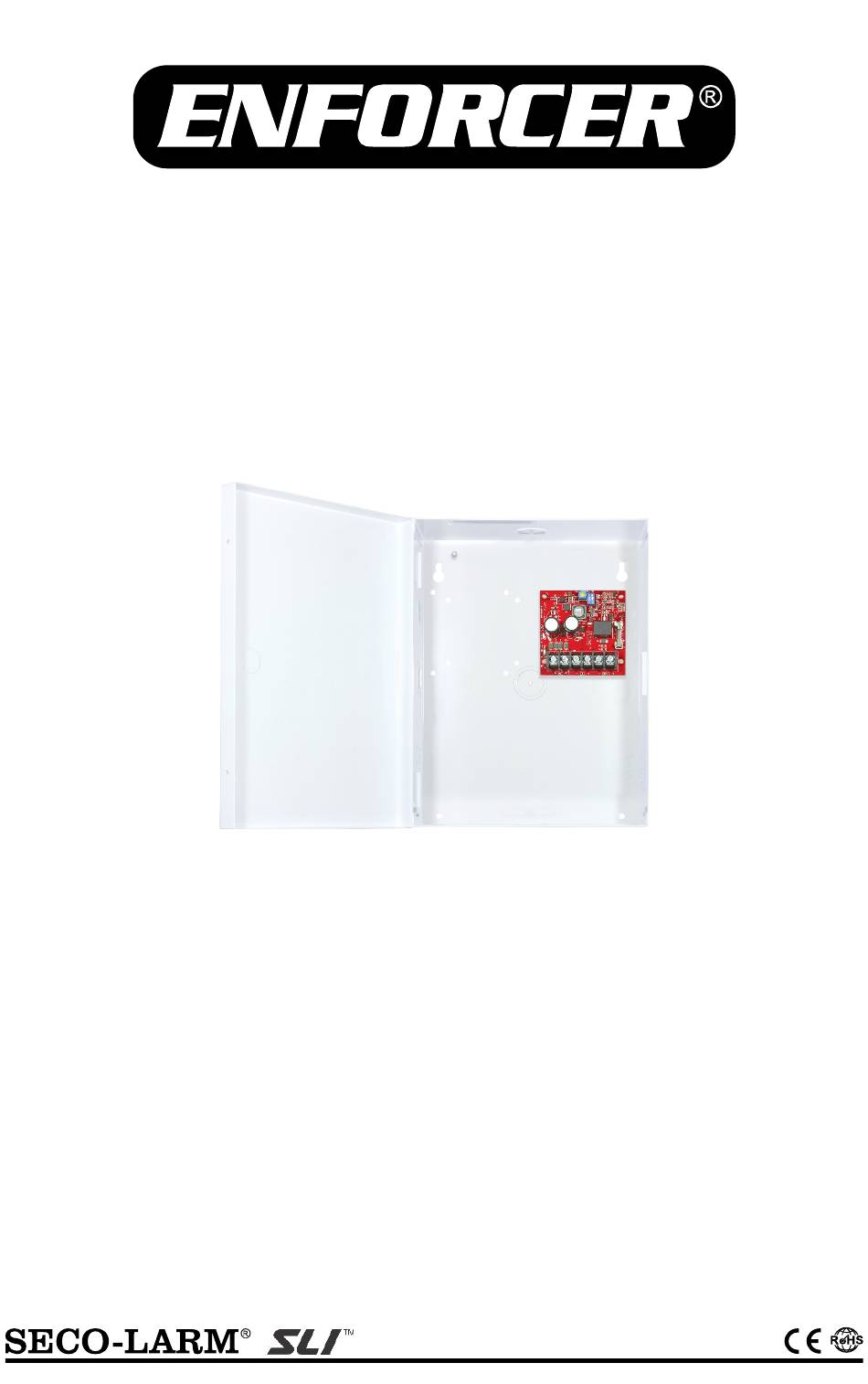

Power Supply/Charger with Enclosure

Features:

• Automatic recharging of backup batteries

• Automatic switchover to backup battery if

main power is lost or cut

• Built-in battery short-circuit protection

• Low-battery cutoff

• LEDs indicate power status

• Programmable DC voltage output

• Regulated and filtered output voltage

• Fused output for a regulated charge

ST-2406-3AEQ

Manual

• Heavy-duty steel case to protect power

connections

• Enclosure has space for up to two 4Ah

or one 7Ah backup batteries

• Includes battery leads for easy

• High efficiency at full load

• Heat sink free design

Table of Contents

Do you have a question about the SECO-LARM SLI ST-2406-3AEQ and is the answer not in the manual?

Page 1 ST-2406-3AEQ Power Supply/Charger with Enclosure Manual Features: • Automatic recharging of backup batteries • Heavy-duty steel case to protect power connections • Automatic switchover to backup battery if main power is lost or cut • Enclosure has space for up to two 4Ah •...
Page 2: Specifications
ENFORCER Power Supply/Charger with Enclosure Introduction: SECO-LARM’s ST-2406-3AEQ power supply/charger ensures that alarm systems and access control systems have enough power to do their job. Protected by fused battery outputs, input polarity protection diodes, and backup battery polarity reverse protection, this power supply/charger can be used to maximize the security and efficiency of nearly any alarm or access control installation.
Page 3 ENFORCER Power Supply/Charger with Enclosure Installation: 1. Mount the power supply/charger enclosure in the desired location Table 1: to be easily accessible for future servicing. Voltage 2. Set the desired DC output voltage (6, 12, or 24VDC) of the power supply using the DIP switch settings as shown in Table 1.
Page 4: Power Supplies
ENFORCER Power Supply/Charger with Enclosure Also Available from SECO-LARM ® 12VDC High-Amp Power Switching CCTV Relay Boards Low Battery Cutoff Supply/Charger Power Supplies Boards PC-U1810-PULQ shown SR-2212-C5AQ shown ST-BD01Q ST-2406-5AQ shown 12VDC Plug-In Plug-and-Play Open-Frame Power Converters AC Adapters Backup Batteries Transformers ST-UV12-S1.0Q shown...
