ENFORCER EVP-1SA4P4UL Installation Manual

Installation Manual
ENFORCER
AC Power Supplies for CCTV Cameras and Accessories
Type of
Model no.
output fuse
EVP-1SA4P4UL
PTC*
EVP-1SA4B4ULQ
Blade
EVP-1SA4P9UL
PTC*
EVP-1SA4B9ULQ
Blade
EVP-1SA8P16UL
PTC*
EVP-1SA8BHULQ
Blade
*
Positive Temperature Coefficient

Specifications:

4,9, or 16, 24VAC outputs:
H
• Each output individually fused
• Output fuses rated 1.1A for PTC and 1A for blade fuse
• Individual red LED status indicator for each output
• Main power switch to turn ON/OFF power to outputs
Power:
H
• Input: 120VAC, 60Hz
• Output: 24VAC/100VA (2 x 100VA for 8A versions)
• Main fuse rated 5A@250VAC per board.
• On board spare fuse and 6-foot power cord included
What it is:
The ENFORCER CCTV Power Supply centralizes the power sources for four,
nine, or sixteen AC-powered CCTV cameras and/or CCTV accessories. The
power input, power transformer, and all fused power outputs are enclosed in
one heavy-duty, easy-to-install enclosure. As a result, an ENFORCER CCTV
Power Supply can replace up to sixteen individual power sources.
Note before installation:
The ENFORCER CCTV Power Supply is not waterproof or weatherproof.
Therefore, it must be mounted indoors where it cannot be exposed to rain or
other moisture.
Installation must be done by qualified personnel, and should conform
to local and all other applicable codes.
L'installation doit être effectuée par un personnel qualifié et doit être
conforme aux codes locaux et tout autre code applicable.
Installation:
1. Find a good location for the enclosure - The enclosure should be
mounted where it is out of sight and protected from moisture and the
weather, but where an authorized person can have access for servicing
in the future.
NOTE: Make sure the space where the enclosure is to be mounted has
adequate ventilation. Otherwise, heat buildup inside the enclosure could
damage the electronic parts or cause the PTC fuses to trip needlessly.
REMARQUE: Assurez-vous que l'espace où l'enceinte doit être installée
a une ventilation adéquate. Sinon, l'accumulation de chaleur à l'intérieur
de l'enceinte pourrait endommager les composants électroniques ou
provoquer le fusible PTC à déclencher inutilement.
®
Max
Total
No. of
Output
current
supply
outputs voltage
per
current
output
1.1A
4A
4
1A
1.1A
24VAC
4A
9
1A
1.1A
8A 16
1A
Enclosure:
H
• Heavy-duty steel case to protect the power connections
• Removable steel cover for easy access
• Ventilation holes to prevent heat build-up
• Dimensions - 10" x 7.75" x 3.5" (254 x 196 x 89 mm)
• Knock-out on the cover for optional cam lock
2. Locate the enclosure mounting holes. Using these holes as a template,
mark the location of the 4 screws on the wall with a pencil. First fasten
two / " x 1" (4 x 26mm) upper screws (not included) until the gap
5
32
between the wall and the screw head is approximately 1/4" (6mm).
Hang the enclosure on the 2 screws using the enclosure's upper screw
holes and adjust the proper location of the enclosure. Then securely
fasten the upper and lower screws.
NOTE: For concrete walls, first drill four holes on the concrete wall in the
location of the screws. Then insert a "plastic anchor" in each of the holes
first before fastening the screws.
Knock-Out
for Optional
Cam Lock
Ventilation
Holes
AUDIO/VIDEO APPARATUS
26BZ

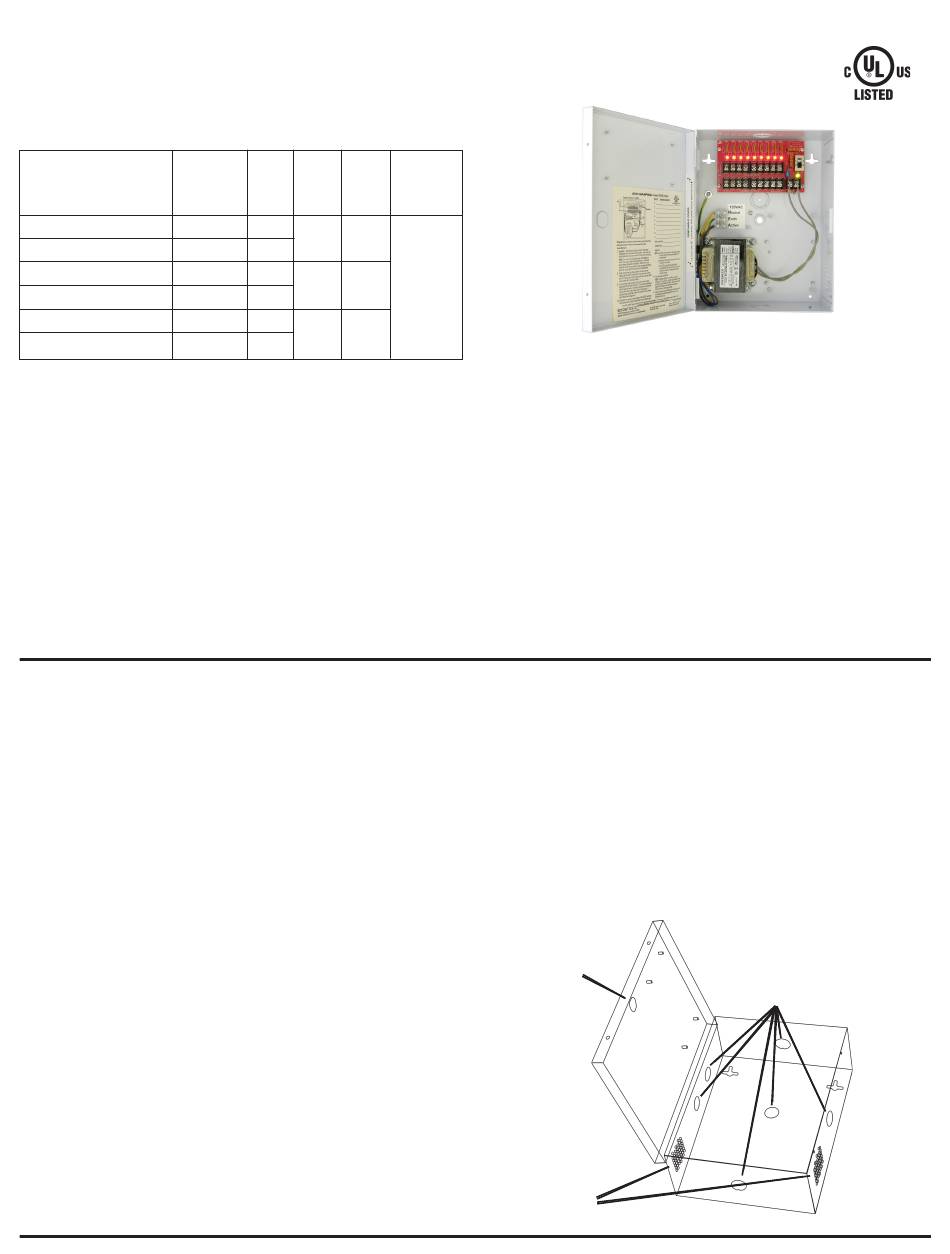

EVP-1SA4P9UL Shown
FIG. 1
Cable & Power
Knock-Outs
