Features:
• Automatic recharging of backup batteries
• Automatic switchover to backup battery if
main power is lost or cut
• Built-in battery short-circuit protection
• LEDs indicate power status
• Programmable DC voltage output
• Regulated and filtered output voltage
ST-Series
Power Supplies/Chargers
Manual

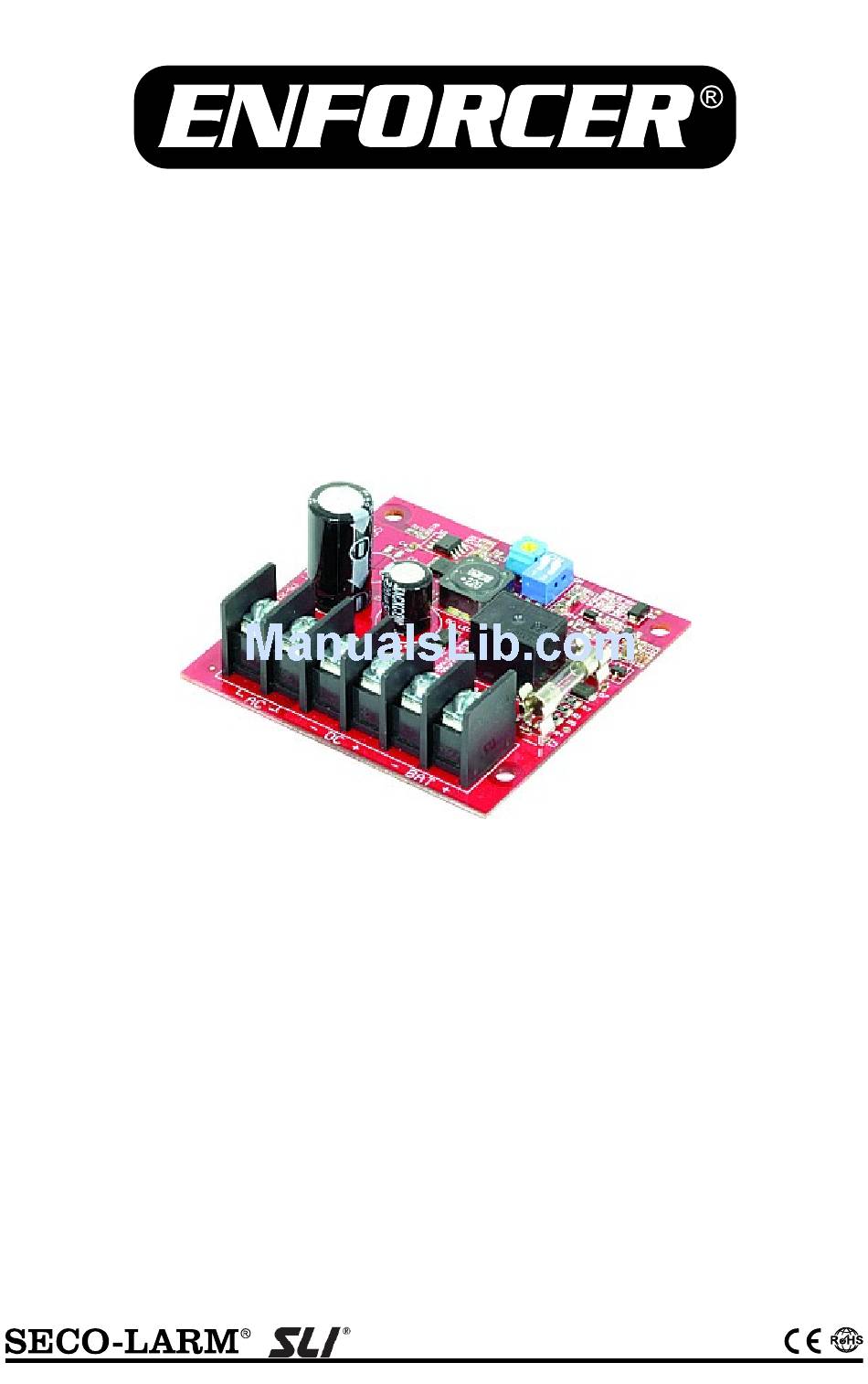

ST-2406-3AQ shown
• Fused output for a regulated charge
• Includes foam tape and battery leads
for easy installation
ST-2406-3AQ – Upgraded Features
• High efficiency at full load
• Heat sink free design
• Low-battery cutoff
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ENFORCER ST-1206-1.5AQ
Summary of Contents for ENFORCER ST-1206-1.5AQ
- Page 1 ST-Series Power Supplies/Chargers Manual ST-2406-3AQ shown Features: • Automatic recharging of backup batteries • Fused output for a regulated charge • Automatic switchover to backup battery if • Includes foam tape and battery leads main power is lost or cut for easy installation •...
-
Page 2: Specifications
ENFORCER Power Supplies/Chargers Introduction: SECO-LARM’s ST-series of power supplies/chargers ensure that alarm systems and access control systems have enough power to do their job. Protected by fused outputs, input polarity protection diodes, and backup battery polarity reverse protection, these power supplies/chargers can be used to maximize the security and efficiency of nearly any alarm or access control installation. - Page 3 Table 1 (ST-2406-3AQ): Voltage a. The ST-1206-1.5AQ is set at 12VDC by default. For 6VDC, cut the wire loop (see Wiring Diagram, pg. 2) and insulate the wire leads. b. For ST-2406 series, set the desired DC output voltage (6, 12, or 24VDC) of the power supply using the DIP switch as in Table 1 for ST-2406-3AQ, or Table 2 for all other ST-2406 series.
-
Page 4: Power Supplies
ENFORCER Power Supplies/Chargers Also Available from SECO-LARM ® 12VDC High-Amp Switching CCTV Relay Boards Low Battery Cutoff Timers Power Supplies PS-U1812-PULQ shown SR-2212-C5AQ shown ST-BD01Q SA-025EQ shown 12VDC Plug-In Plug-and-Play Open-Frame Power Converters AC Adapters Backup Batteries Transformers ST-UV12-S1.0Q shown...
