Access Control Power Supply, Single Output
Features:
AC power failure supervision relay
• Over-current fuse-protected AC input
• Individual AC input and DC output LED
status indicators
• Built-in back-up battery charger (Batteries
not included)
• Automatically switch to backup battery if
AC fails
• Battery failure supervision relay
EAP-5D1Q, EAP-5D1MQ
Manual
®

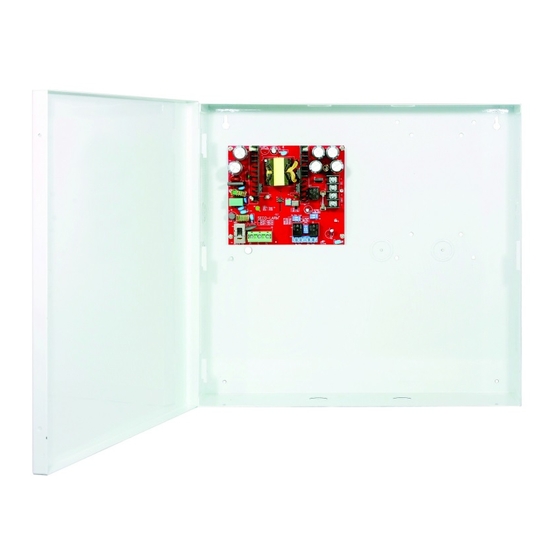

EAP-5D1Q shown
• Selectable 2.2K-Ohm End-of-Line (EOL)
resistor for AC failure and battery failure
supervision relays via DIP switch
• Selectable delay timer (5sec, 5min, 5h) for AC
failure supervision relay via DIP switch
• Board designed with LED overload indicator and
automatic shutdown for short-circuit protection
• PCB Module also sold separately
(EAP-5D1MQ)
Advertisement
Related Manuals for ENFORCER EAP-5D1Q
Summary of Contents for ENFORCER EAP-5D1Q
- Page 1 EAP-5D1Q, EAP-5D1MQ Access Control Power Supply, Single Output Manual EAP-5D1Q shown Features: AC power failure supervision relay • Selectable 2.2K-Ohm End-of-Line (EOL) resistor for AC failure and battery failure • Over-current fuse-protected AC input supervision relays via DIP switch • Individual AC input and DC output LED •...
- Page 2 ENFORCER Access Control Power Supply, Single Output Parts List*: 1x Power Supply / Enclosure 2x Screws for the enclosure door 2x Cable management clamps 1x Plastic snap bushing 1x 6ft Power cord with ground wire 3x Wires for backup battery...
- Page 3 ENFORCER Access Control Power Supply, Single Output Installation: IMPORTANT: The ENFORCER Power Supply is not waterproof or weatherproof. Therefore, it must be mounted indoors where it will not be exposed to rain or other moisture. Installation must be done by qualified personnel, and should conform to local and all other applicable codes.
- Page 4 ENFORCER Access Control Power Supply, Single Output Installation (Continued): 8. Reconnect the AC power and check the DC output voltage reading at the end of the wire pairs where it is to be connected to the device. If the output voltage reading falls below the minimum voltage requirement of the device, use a small screwdriver to carefully turn the potentiometer marked "VR1"...
