Johnson Controls JX Series Engineering Manual page 8

FORM 121.00-EG1
ISSUE DATE: 5/31/2012
FEATURES AND OPTIONS
Outdoor Unit Features and Options:
• Range from 3-4.4 tons
• 208/230V, Single Phase, 60Hz
• Environmentally responsible R-410A refrigerant
• Ultra quiet operation as low as 51dBA
• Modular design for easy installation and compact
footprint
• Up to 9 indoor units can be connected
• Wide Operating Range (Outdoor Ambient)
• Cooling 14 °F to 109 °F
• Heating -4 °F to 59 °F
JOHNSON CONTROLS
• Flexible Piping Design:
• 656 Feet - Maximum Total Liquid Line
• 492 Feet - Maximum Outdoor To Most Dis-
tant Indoor Unit
• 164 Feet - Maximum Vertical Between In-
door and Outdoor (Outdoor Above Indoor)
• 131 Feet - Maximum Vertical Between In-
door and Outdoor (Outdoor Below Indoor)
Indoor Unit Features and Options:
High Wall Mounted (JKHX Type)
• Lowest indoor unit cost per Btuh of cooling
• Surface mounts on walls
• Bottom discharge – should be mounted at least 5'
above the floor and 12" from ceiling
• Wireless remote ready – comes with built-in wire-
less receiver
• Anti-mold washable filter (not MERV rated)
• 3-speed AC motor (not ECM)
• Condensate pump not included

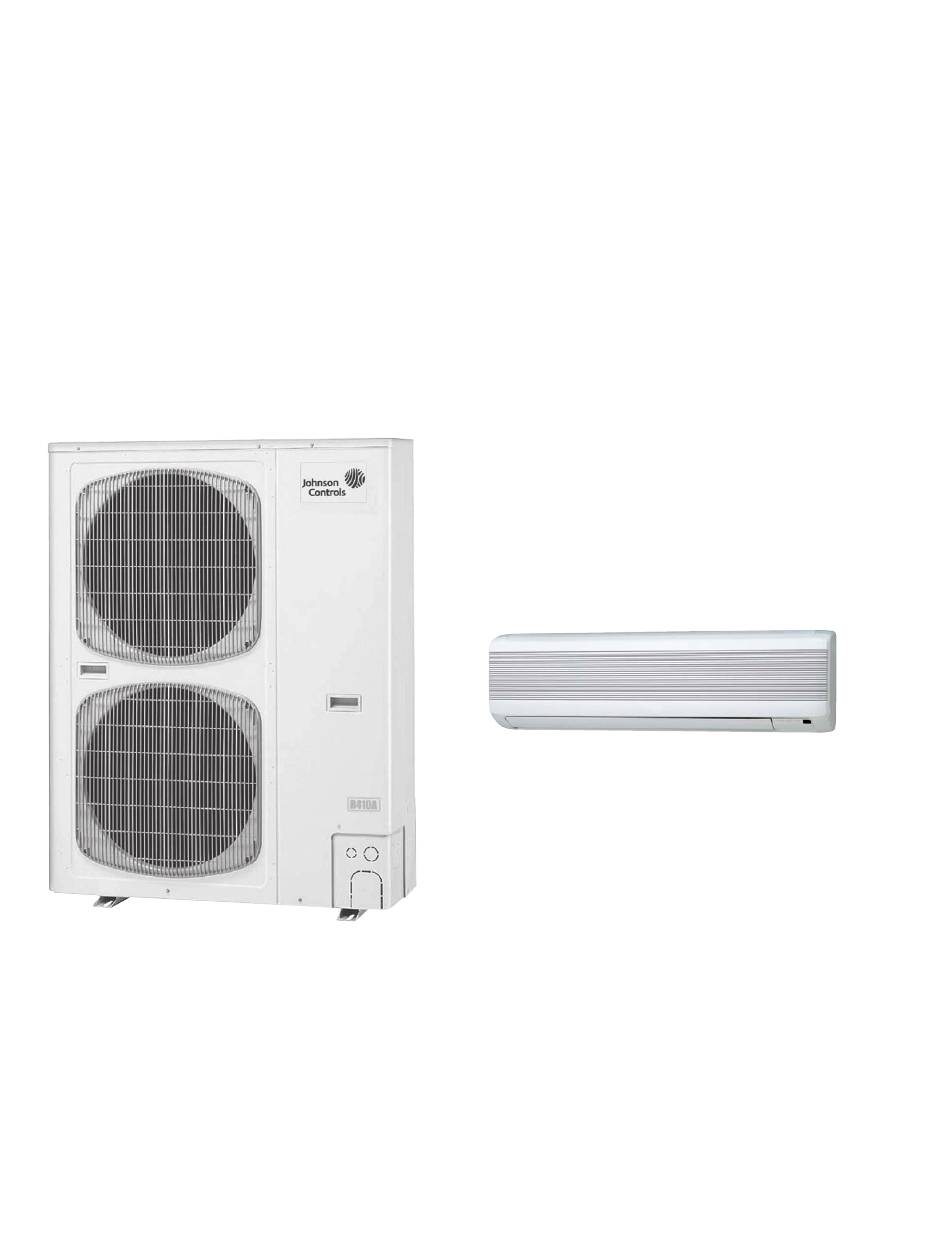

JKHX Series - High Wall Mounted Indoor Unit
