Controller features and options:
Simplified Wired Remote Control
• Cost effective individual zone control
• Thin and easy to read
• Simple to install – 2 low-voltage wires to the in-
door unit
• On / Off
• Mode Selection – choose heating, cooling, or auto
• Temperature set point
• Built in remote temperature sensor
• Airflow direction (for indoor units that have lou-
vers)
• Fan Speed Control
• 72 Hour Memory
Retention on Power Fail
JRCS-KR1EGN - Simplified
Wired Remote Control
Standard Wired Remote Control
• Thin and Easy to Read
• Simple to install – 2 low-voltage wires to the in-
door unit
• Temperature set point
• 7 Day Timer, 6 time periods per day
• Temperature set-back
• Systems diagnostics capability (with connector
cable)
• Built in remote temperature sensor
11
• Mode Selection – choose heating, cooling, or auto
• Airflow direction (for indoor units that have lou-
vers)
• Fan speed control
• Controls up to 8 indoor units

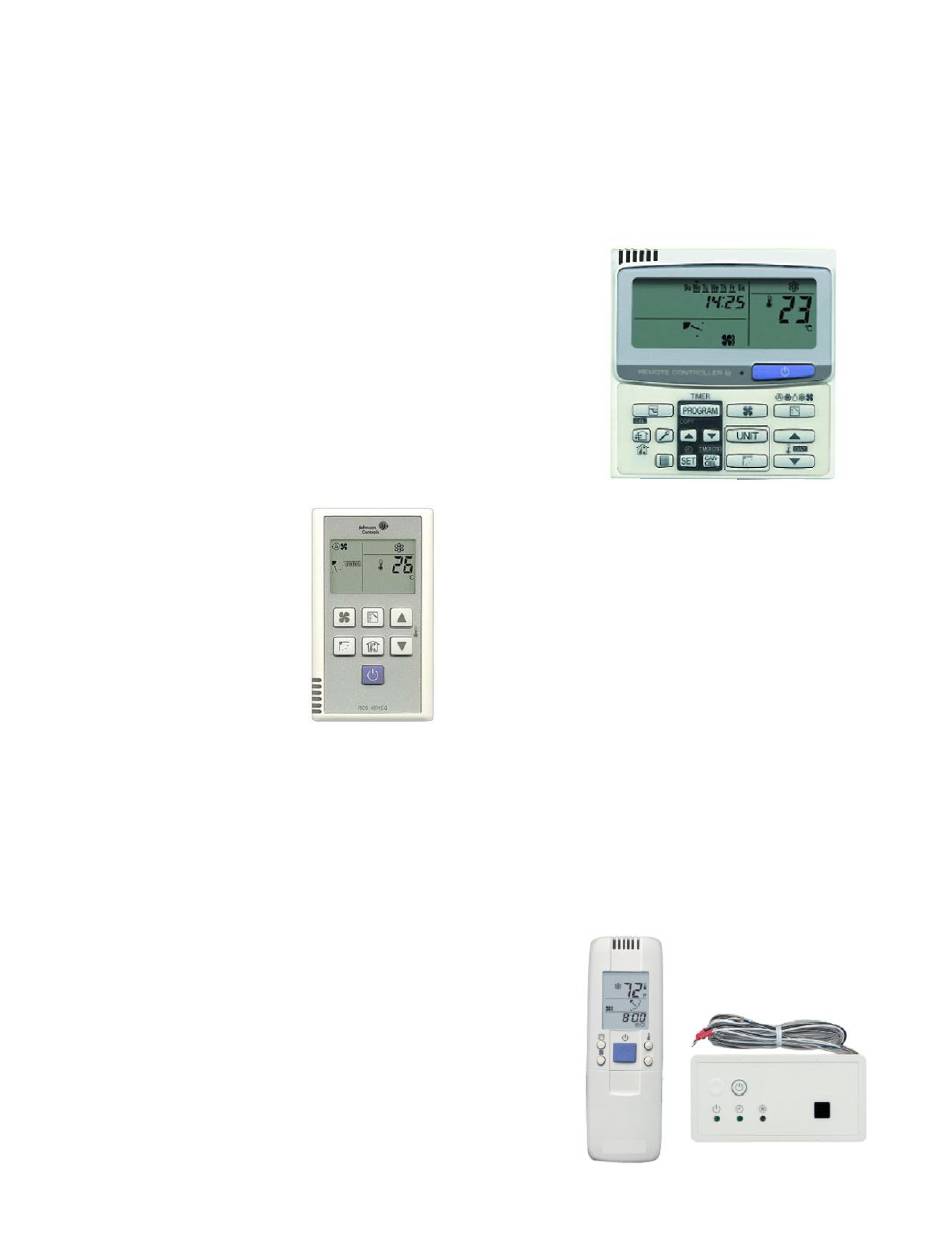

JRCS-TM80BGN - Standard Wired Remote Control
Wireless Remote Control
• Wireless unit for portable controls
• One remote can control many units
• On / Off
• Mode Selection – choose heating, cooling, or auto
• Temperature set point
LD16401
• Airflow direction (for indoor units that have lou-
vers)
• Fan Speed Control
• Built in remote temperature sensor
• High wall mounted indoor units (JKHX) have re-
ceivers built in, all other units require a receiver
that must be mounted in the field
FORM 121.00-EG1
