Johnson Controls JX Series Engineering Manual page 10

FORM 121.00-EG1
ISSUE DATE: 5/31/2012

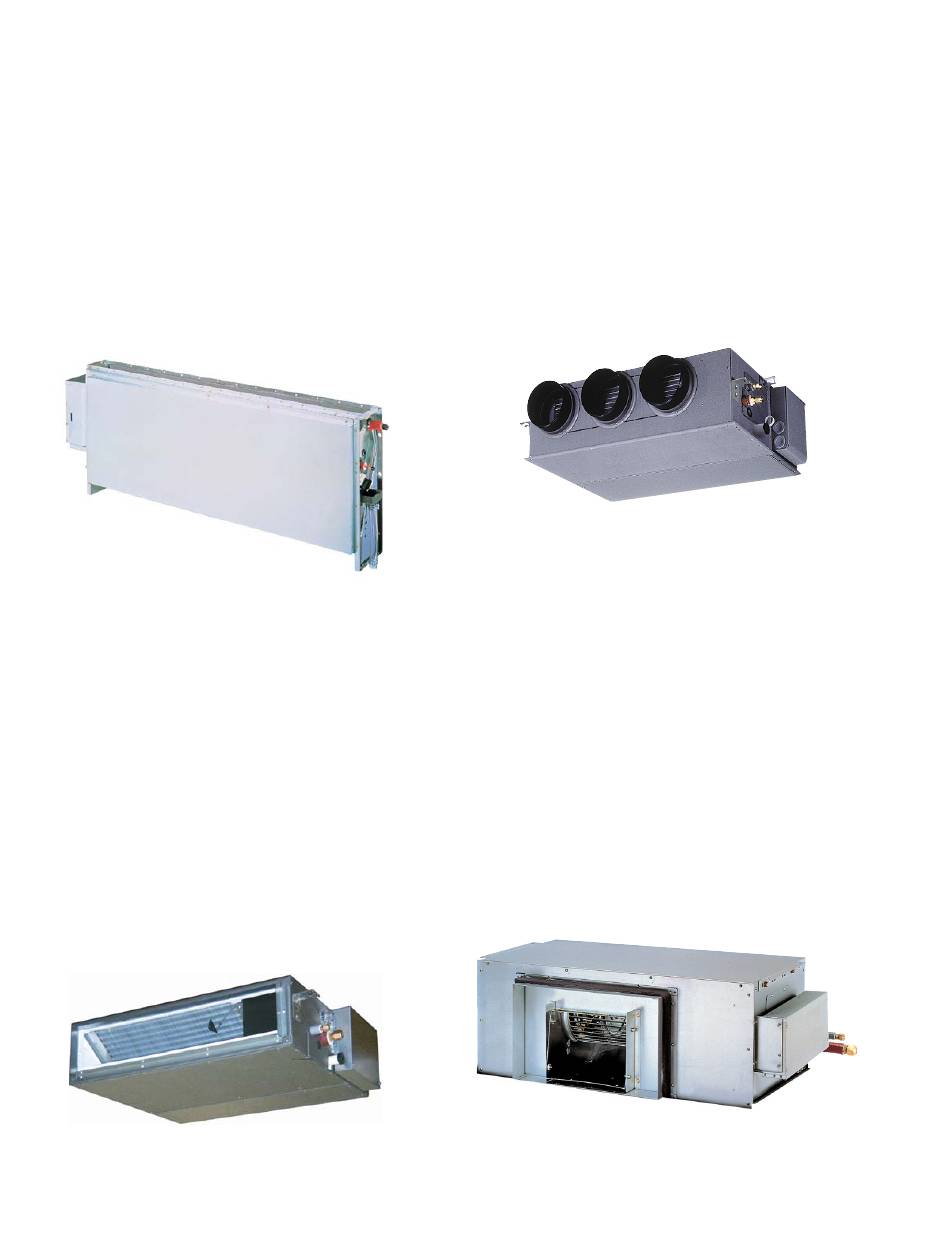

Vertical Floor Mounted, Concealed
(JFMHX Type)
• Same as the JFHX Exposed, but without casing
• Low external static – discharge grille should be
attached to the unit discharge with very little or
no ducting
• Front panel removes without tools for easy servic-
ing
• Anti-mold washable filter (not MERV rated)
• Pipes can be connected to either side of the unit
from the bottom or rear
• Condensate pump not included
JFMHX - Vertical Floor-Mounted
Concealed
Horizontal Concealed Slim (JUMHX Type)
• Ultra-slim profile: 7.9 inches high for all models
• DC fan motor greatly reduces power consumption
(ECM)
• Ideal for any application with short plenums
• Anti-mold washable filters included, but use of
filter return grille is suggested
• Easy maintenance and service by external electri-
cal box
• 0.16 in. w.g. static pressure enables ductwork to
be fitted
• Condensate pump built in
JUMHX - Horizontal Concealed Slim
JOHNSON CONTROLS
Horizontal Concealed (JUHX Type)
• High external static pressure up to 0.48" allows
enhanced filtration or longer duct runs
• Industry-leading low sound levels from 22 dBA
• Condensate pump built in
• Easy to install and maintain
• 3 speed AC motor (not ECM)
• Standard round 8" take offs can easily be removed
if a rectangular plenum is desired
LD16397
High Static Concealed Horizontal
(JDHX Type)
• High external static pressure up to 0.70" allows
enhanced filtration or longer duct runs
• Can be used as 1:1 split system if required. Great
for large zones
• 3 speed AC motor (not ECM)
• Condensate pump not included
• This unit has a draw-through coil – a P-trap will
be required for the condensate
LD16398
JDHX - High-Static Horizontal Concealed
JUHX - Horizontal Concealed
LD16399
LD16400
10
