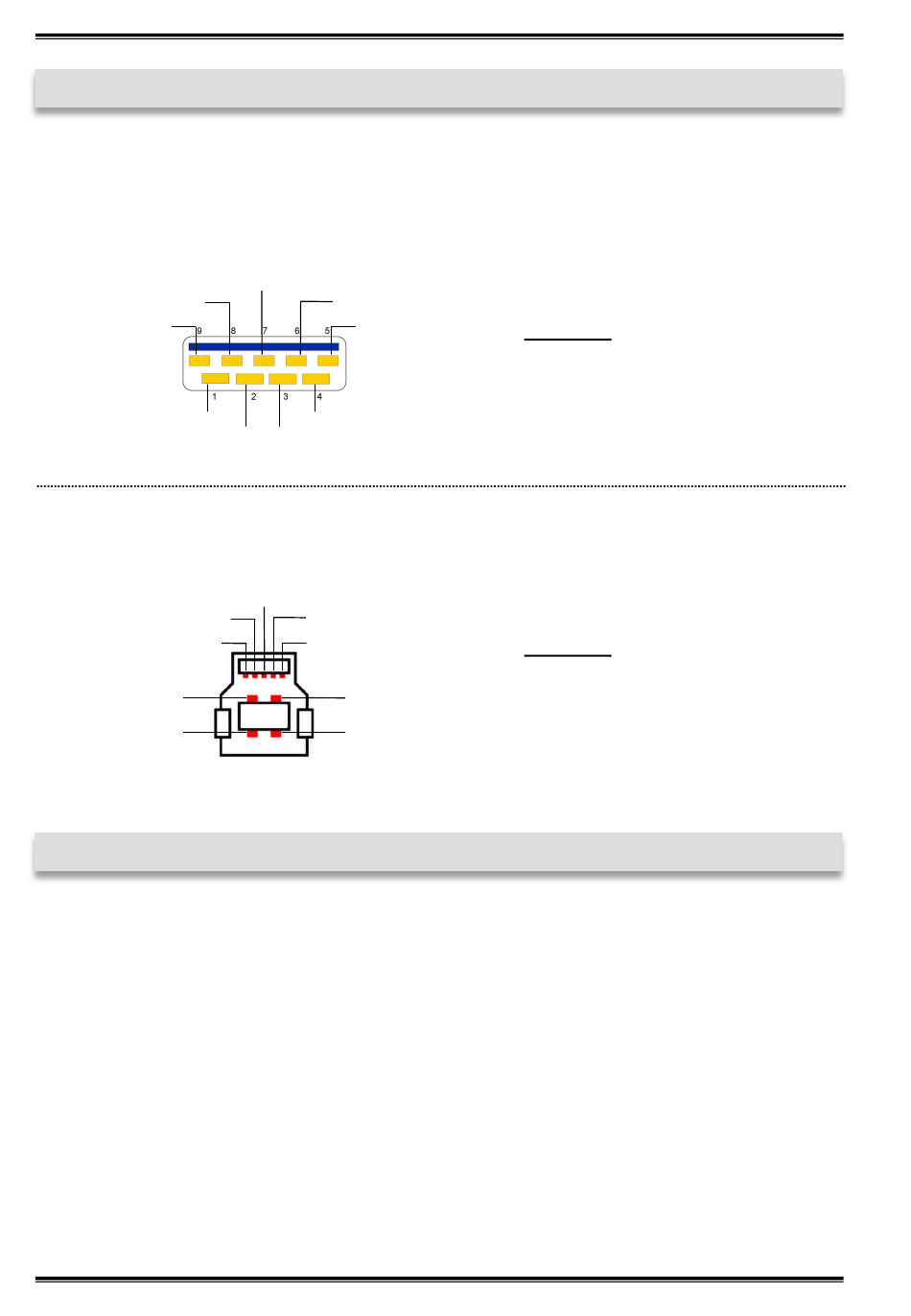

3. Layout & Connections
3.2 Connections
USB 3.1 (Gen1) A-Port:
StdB_SSTX +
StdB_SSTX -
VCC
USB 3.1 (Gen1) B-Port:
StdB_SSTX +
StdB_SSTX -
D-
D+

4. Hardware Installation

Because there are large differences between PC's, we can give you only a general in-
stallation guide. Please refer your computer's reference manual whenever in doubt.
1. Connect the USB cable to the USB B-Port at the Hub.
2. Connect the included power supply to the 5V connector at the Hub.
3. Now connect the other end from the USB cable (A-Plug) to the A-Port at your PC.
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
GND
D- D+
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
VBus
GND
Attention!
Never plug in with force
or in wrong direction.
Attention!
Never plug in with force
or in wrong direction.
