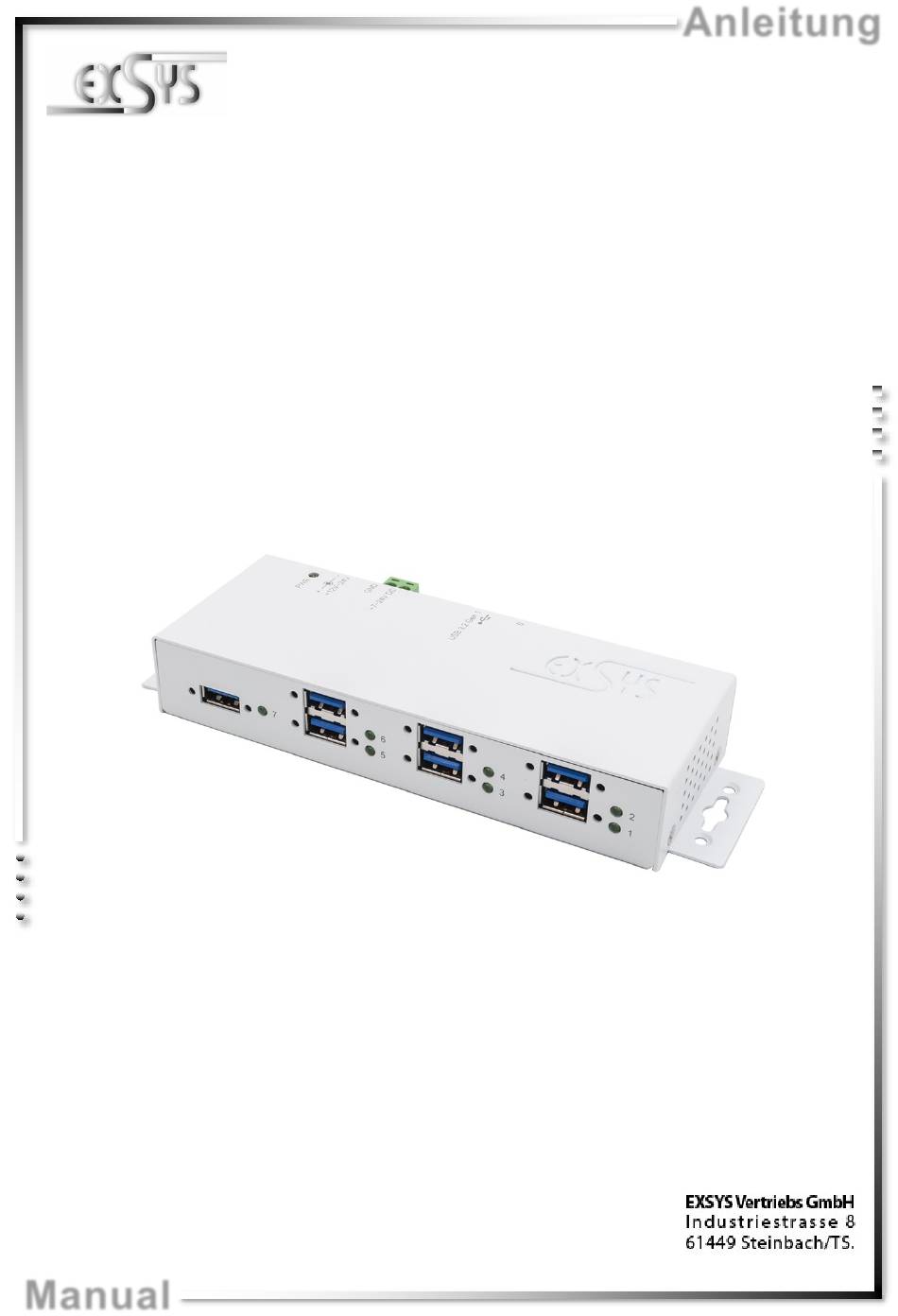

Anleitung
EX-1189HMVS-3W
7 Port USB 3.2 (Gen1) Metall HUB mit
1,5A Strom pro Port und
15KV ESD Überspannungsschutz
7 Port USB 3.2 (Gen1) Metal HUB with
1,5A power for each port and
15KV ESD Surge Protection
Vers. 1.0 / 19.11.19
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX-1189HMVS-3W and is the answer not in the manual?

Questions and answers

Summary of Contents for Exsys EX-1189HMVS-3W

  • Page 1 Anleitung EX-1189HMVS-3W 7 Port USB 3.2 (Gen1) Metall HUB mit 1,5A Strom pro Port und 15KV ESD Überspannungsschutz 7 Port USB 3.2 (Gen1) Metal HUB with 1,5A power for each port and 15KV ESD Surge Protection Vers. 1.0 / 19.11.19...
  • Page 2: Table Of Contents

    3.1 Layout ····································································································· 10 3.2 Connections ························································································ 10-11 3.3 Jumper Settings ························································································ 12 Hardware Installation ··········································································· 13 Driver Installation ················································································ 13 Cleaning ··························································································· 13 Technical Information ·········································································· 14 Technical Drawing ·············································································· 14 © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Page 3: Beschreibung

    EX-1189HMVS-3W Deutsch 1. Beschreibung Der EX-1189HMVS-3W ist ein USB 3.2 (Gen1) Metall HUB für bis zu 7 Endgeräte. Der Hub ist mit 7 Ports für Endgeräte und 1 Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Anschlüsse von 1.1 bis 3.2.
  • Page 4: Aufbau, Anschlüsse & Jumper Einstellungen

    Downstream A-Buchse für jeden Port 3.2 Anschlüsse +7V - 24V T-Block: ACHTUNG!!! Schließen Sie niemals Strom an Ground an, dadurch kann Ihre Hardware zerstört werden!!! GND (Ground) +7V - 24V © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Page 5: Anschlüsse

    StdB_SSTX - Stecker niemals umgekehrt oder mit Gewalt einstecken. USB 3.2 (Gen1) B-Buchse: GND_DRAIN StdB_SSTX+ StdB_SSTX + Achtung! StdB_SSTX - StdB_SSTX - Stecker niemals umgekehrt oder mit VBus Gewalt einstecken. © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Page 6: Jumper Einstellungen

    3.3 Jumper Einstellungen Der EX-1189HMVS-3W wird mit der Einstellung Bus-Power ausgeliefert. Sie haben aber die Möglichkeit den EX-1189HMVS-3W auf der Datenleitung zum PC sprich die USB B-Buchse stromlos zu machen. Dafür müssen Sie zu erst das Gehäuse mit den vier Schrauben auf den Seiten öffnen. Nun müssen Sie den Jumper JP2 von ENA (Enable) auf DIS (Disable) setzen.
  • Page 7: Hardware Installation

    Tuch und entfernen Sie die Verschmutzung mit leichtem Druck. Im Bereich der Anschlüsse bitte darauf Achten, dass keine Fasern des Tuchs in der Buchse hinterlas- sen werden. Verwenden Sie bitte zu Reinigung in keinem Fall ein feuchtes oder nasses Tuch! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Page 8: Technische Daten

    -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7 bis +24 Volt & +12 bis +24 Volt Abmessung: 178,60 x 59,50 x 25,45 mm Gewicht: 860g 8. Technische Zeichnung © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Page 9: Description

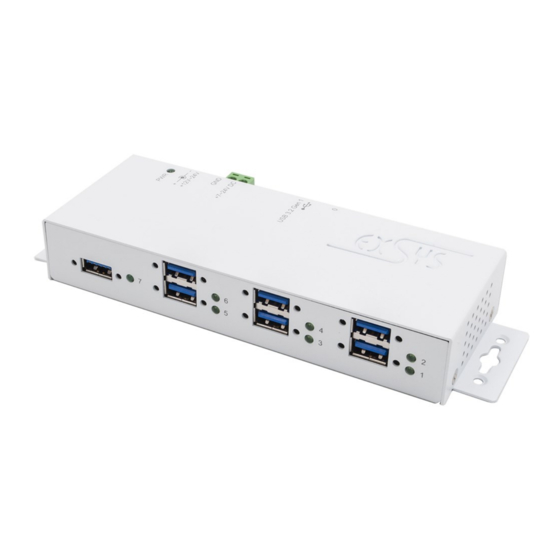

    English 1. Description The EX-1189HMVS-3W is a plug & play high-speed USB 3.2 (Gen1) metal hub for 7 USB devices. The EX-1189HMVS-3W provides 7 ports for USB devices and 1 uplink port for PC. It supports all USB connections from 1.1 to 3.2. All ports can fix with screw lock.
  • Page 10: Layout, Connections & Jumper Settings

    7x USB 3.2 (Gen1) Status LED Downstream A-Port for each Port 3.2 Connections +7V - 24V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +7V - 24V © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Page 11: Connections

    Never plug in with force or in wrong direction. USB 3.2 (Gen1) B-Port: GND_DRAIN StdB_SSTX+ StdB_SSTX + StdB_SSTX - StdB_SSTX - Attention! Never plug in with force or in wrong direction. VBus © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Page 12: Jumper Settings

    EX-1189HMVS-3W 3. Layout, Connections & Jumper Settings 3.3 Jumper Settings The EX-1189HMVS-3W will be delivered with the setting Bus-Power. But you have the possibility to cut the power at the data line. For this you open the case with the four screws on both sides.
  • Page 13: Hardware Installation

    In the area of the connectors please make sure that no fibres from the cloth re- main in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Page 14: Technical Information

    English EX-1189HMVS-3W 7. Technical Information Chip-Set: Genesys Data Transfer Rate: 5Gbit/s Connectors: 7x USB 3.2 (Gen1) A-Port, 1x USB 3.2 (Gen1) B-Port, 1x Terminal Block 7-24V, 1x 12-24V Connector Hardware System: USB 1.1, 2.0, 3.0, 3.1 & 3.2 Operating System:...
