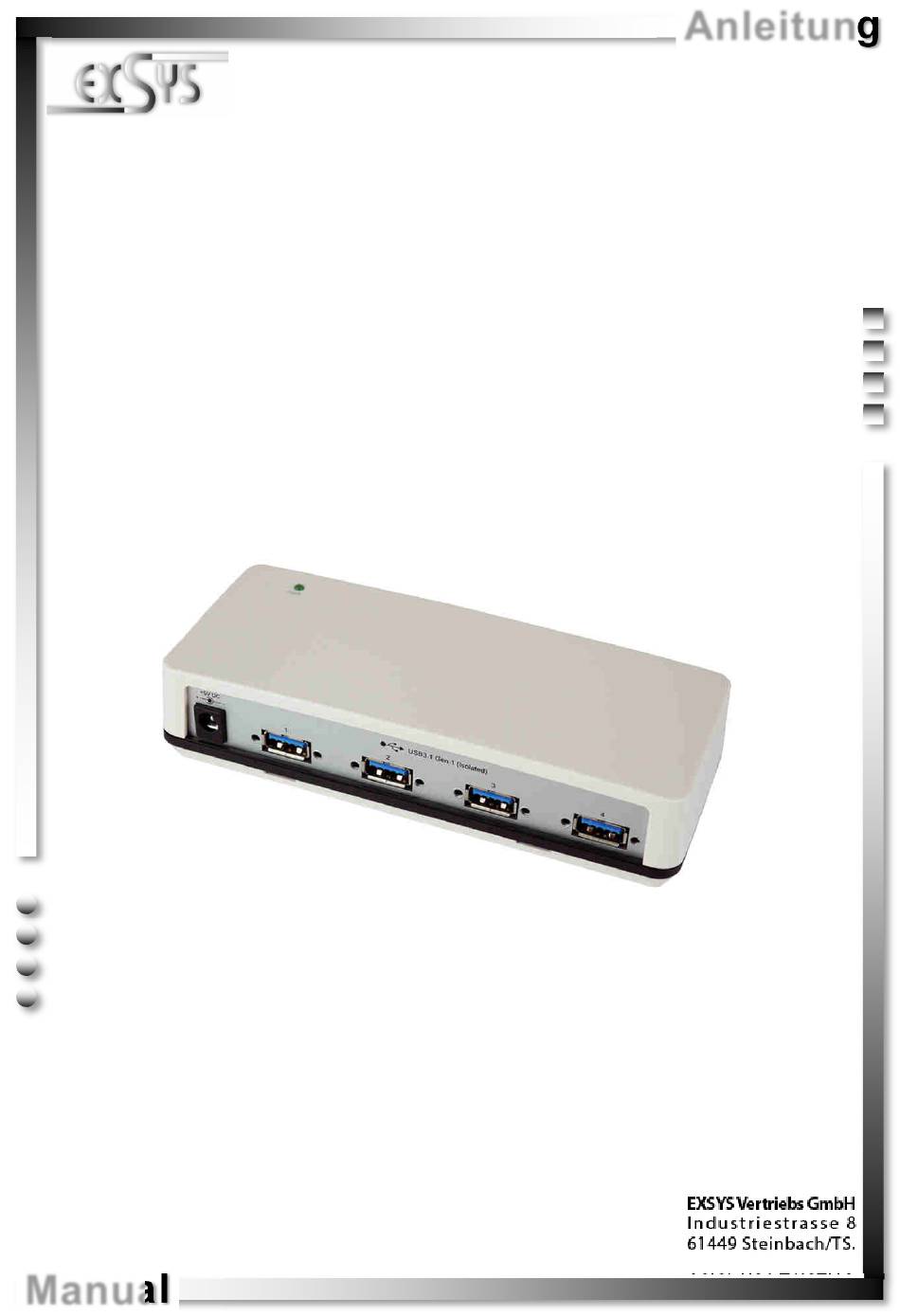

- Page 1 Anleitung EX-1182VIS 4 Port USB 3.1 (Gen1) Plastik HUB mit 15KV ESD Überspannungsschutz & 3KV Optische Isolation 4 Port USB 3.1 (Gen1) Plastic HUB with 15KV ESD Surge Protection & 3KV Optical Isolation Vers. 1.0 / 21.02.18 Manual...
-
Page 2: Table Of Contents
Layout & Connections ······································································· 9-10 3.1 Layout ······································································································ 9 3.2 Connections ·························································································· 9-10 Hardware Installation ··········································································· 10 Driver Installation ················································································ 11 Cleaning ··························································································· 11 Technical Information ·········································································· 12 Technical Drawing ·············································································· 12 © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Die EX-1182VIS ist ein 3.1 (Gen1) Plastik HUB für bis zu 4 Endgeräte mit 15KV ESD Überspannungs-Schutz und 3KV Optische Isolation. Der Hub ist mit vier USB 3.1 (Gen1) A-Buchsen für Endgeräte und eine USB 3.1 (Gen1) B-Buchse für den An- schluss an den PC ausgestattet. -
Page 4: Aufbau & Anschlüsse
1x USB 3.1 (Gen1) Upstream B-Buchse 5V Buchse für im Lieferumfang enthaltenem Netzteil 4x USB 3.1 (Gen1) Downstream A-Buchse 3.2 Anschlüsse 5V Buchse: ACHTUNG!!! Nur zur Verwendung mit im Lieferumfang enthaltenem Netzteil! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Hardware Installation
5V Buchse des Hub´s und stecken Sie den Netzstecker des Netzteils in eine Steckdose. 3. Verbinden Sie nun das andere Ende (A-Stecker) des mitgelieferten USB Kabels mit der A-Buchse an Ihrem PC. © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 6: Treiber Installation
Deutsch EX-1182VIS 5. Treiber Installation Alle Betriebssysteme Nach Abschluss der Hardwareinstallation erkennt das Betriebssystem den EX-1182VIS automatisch und installiert diesen. ÜBERPRÜFEN DES INSTALLIERTEN TREIBER Öffnen Sie den >Geräte-Manager<. Jetzt müssten Sie unter „USB-Controller“ folgen- de Einträge sehen: Sind diese oder ähnliche Einträge vorhanden, ist der USB Hub richtig installiert. -
Page 7: Technische Daten
Betriebstemperatur: 0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +5 Volt Abmessung: 151,10 x 62,00 x 34,00 mm Gewicht: 300g 8. Technische Zeichnung © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 8: Description
EX-1182VIS 1. Description The EX-1182VIS is a plug & play high-speed USB 3.1 (Gen1) hub for 4 devices with 15KV ESD Surge Protection and 3KV Optical Isolation. The EX-1182VIS provides four USB 3.1 (Gen1) A-Ports for USB devices and one Upstream USB 3.1 (Gen1) B-Port to the PC. -
Page 9: Layout & Connections

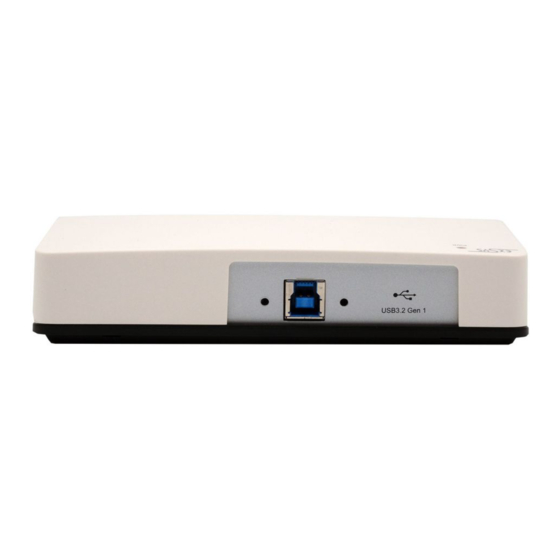

Upstream B-Port 5V Connector for included external Power Supply 4x USB 3.1 (Gen1) Downstream A-Port 3.2 Connections 5V Connector: ATTENTION!!! Use only with Power Supply which is included in delivery! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 10: Hardware Installation
2. Connect the included power supply to the 5V connector at the Hub. 3. Now connect the other end from the USB cable (A-Plug) to the A-Port at your PC. © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 11: Driver Installation
In the area of the connectors please make sure that no fibres from the cloth re- main in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Technical Information
Operating Temperature: 32°F to 131°Fahrenheit Storage Temperature: -40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +5 Volt Size: 151,10 x 62,00 x 34,00 mm Weight: 300g 8. Technical Drawing © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
