- Page 1 Anleitung EX-1186HMVS 4 Port USB 3.1 (Gen1) Metall HUB (DIN-Rail) mit 1,5A Strom pro Port und 15KV ESD Überspannungsschutz 4 Port USB 3.1 (Gen1) Metal HUB (DIN-Rail) with 1,5A power for each port and 15KV ESD Surge Protection Vers. 1.0 / 26.02.18...
-
Page 2: Table Of Contents
3.1 Layout ······································································································ 9 3.2 Connections ·························································································· 9-10 3.3 Jumper Settings ························································································ 10 Hardware Installation ··········································································· 11 Driver Installation ················································································ 11 Cleaning ··························································································· 11 Technical Information ·········································································· 12 Technical Drawing ·············································································· 12 © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Der EX-1186HMVS ist ein USB 3.1 (Gen1) Metall HUB für bis zu 4 Endgeräte. Der Hub ist mit 4 Ports für Endgeräte und 1 Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Anschlüsse von 1.1 bis 3.1. Jeder Anschluss an der EX-1186HMVS ist zusätzlich verschraubbar. -
Page 4: Aufbau, Anschlüsse & Jumper Einstellungen
Ihre Hardware zerstört werden!!! GND (Ground) +7V - 24V USB 3.1 (Gen1) A-Buchse: GND_DRAIN StdB_SSTX+ StdB_SSTX + Achtung! StdB_SSTX - StdB_SSTX - Stecker niemals umgekehrt oder mit Gewalt einstecken. © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Jumper Einstellungen
3.3 Jumper Einstellungen Die EX-1186HMVS wird mit der Einstellung Self-Power ausgeliefert. Sie haben aber die Möglichkeit die EX-1186HMVS mit Bus-Power zu versorgen. Dafür müssen Sie zu erst das Gehäuse mit den vier Schrauben auf den Seiten öffnen. Nun müssen Sie den Jumper JP9 von DIS (Disable) auf ENA (Enable) setzen. -
Page 6: Hardware Installation
Tuch und entfernen Sie die Verschmutzung mit leichtem Druck. Im Bereich der Anschlüsse bitte darauf Achten, dass keine Fasern des Tuchs in der Buchse hinterlas- sen werden. Verwenden Sie bitte zu Reinigung in keinem Fall ein feuchtes oder nasses Tuch! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 7: Technische Daten
0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7 bis +24 Volt Abmessung: 143,00 x 55,00 x 23,40 mm Gewicht: 400g 8. Technische Zeichnung © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 8: Description

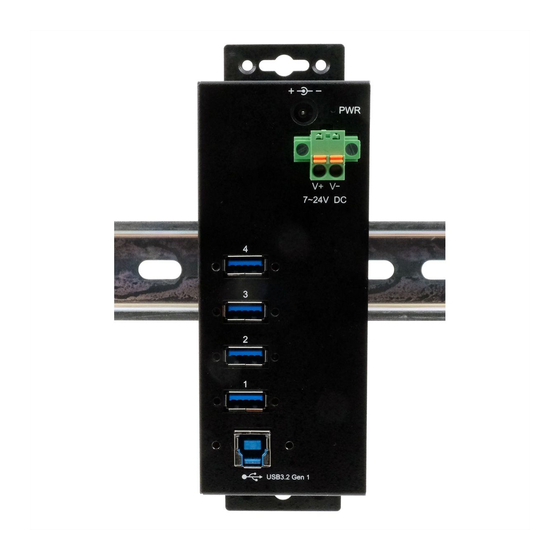

EX-1186HMVS 1. Description The EX-1186HMVS is a plug & play high-speed USB 3.1 (Gen1) metal hub for 4 USB devices. The EX-1186HMVS provides 4 ports for USB devices and 1 uplink port for PC. It supports all USB connections from 1.1 to 3.1. All ports can fix with screw lock. Via a external power supply it is possible to provide a maximum of 1,5A on each USB port. -
Page 9: Layout, Connections & Jumper Settings
Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +7V - 24V USB 3.1 (Gen1) A-Port: GND_DRAIN StdB_SSTX+ StdB_SSTX + StdB_SSTX - StdB_SSTX - Attention! Never plug in with force or in wrong direction. © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 10: Jumper Settings
The EX-1186HMVS comes with the setting Self-Power. You also have the possibility the EX-1186HMVS to supply Bus-Power. For this you open the case with the four screws on both sides. Then you must set the jumper JP9 from DIS (Disable) to ENA (Enable). -
Page 11: Hardware Installation
In the area of the connectors please make sure that no fibres from the cloth re- main in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Technical Information
32°F to 131°Fahrenheit Storage Temperature: -40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +7 to +24 Volt Size: 143,00 x 55,00 x 23,40 mm Weight: 400g 8. Technical Drawing © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
