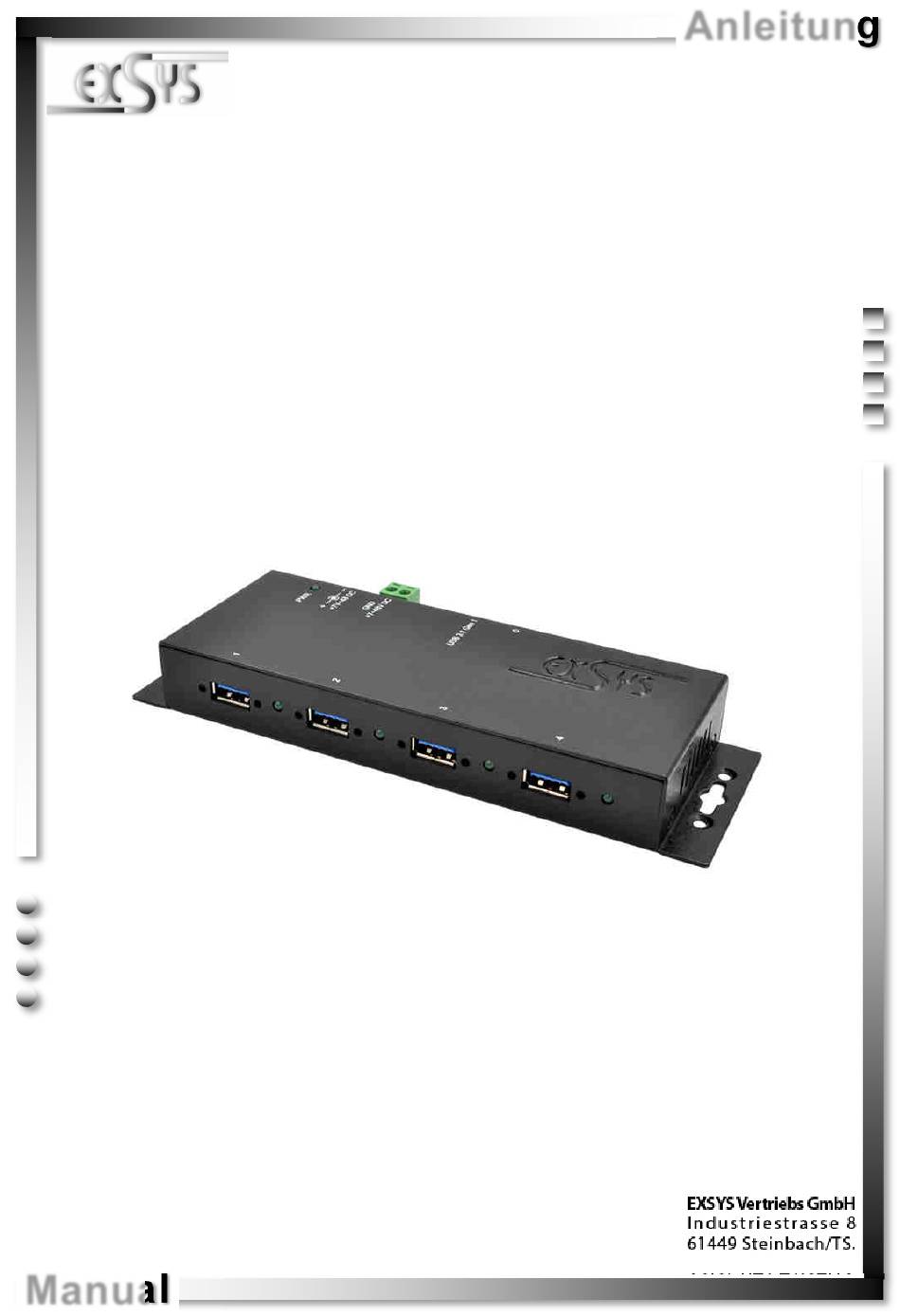

- Page 1 Anleitung EX-1183HMVS 4 Port USB 3.1 (Gen1) Metall HUB mit 1,5A Strom pro Port und 15KV ESD Überspannungsschutz 4 Port USB 3.1 (Gen1) Metal HUB with 1,5A power for each port and 15KV ESD Surge Protection Vers. 1.2 / 21.02.18...
-
Page 2: Table Of Contents
3.1 Layout ····································································································· 10 3.2 Connections ························································································ 10-11 3.3 Jumper Settings ························································································ 12 Hardware Installation ··········································································· 13 Driver Installation ················································································ 13 Cleaning ··························································································· 13 Technical Information ·········································································· 14 Technical Drawing ·············································································· 14 © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Der EX-1183HMVS ist ein USB 3.1 (Gen1) Metall HUB für bis zu 4 Endgeräte. Der Hub ist mit 4 Ports für Endgeräte und 1 Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Anschlüsse von 1.1 bis 3.1. Jeder Anschluss an der EX-1183HMVS ist zusätzlich verschraubbar. -
Page 4: Aufbau, Anschlüsse & Jumper Einstellungen
Lieferumfang externes Netzteil enthaltenem Netzteil 3.2 Anschlüsse +7V - 48V T-Block: ACHTUNG!!! Schließen Sie niemals Strom an Ground an, dadurch kann Ihre Hardware zerstört werden!!! GND (Ground) +7V - 48V © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Anschlüsse
StdB_SSTX - Stecker niemals umgekehrt oder mit Gewalt einstecken. USB 3.1 (Gen1) B-Buchse: GND_DRAIN StdB_SSTX+ StdB_SSTX + Achtung! StdB_SSTX - StdB_SSTX - Stecker niemals umgekehrt oder mit VBus Gewalt einstecken. © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 6: Jumper Einstellungen
3.3 Jumper Einstellungen Der EX-1183HMVS wird mit der Einstellung Bus-Power ausgeliefert. Sie haben aber die Möglichkeit den EX-1183HMVS auf der Datenleitung zum PC sprich die USB B- Buchse stromlos zu machen. Dafür müssen Sie zu erst das Gehäuse mit den vier Schrauben auf den Seiten öffnen. -
Page 7: Hardware Installation
Tuch und entfernen Sie die Verschmutzung mit leichtem Druck. Im Bereich der Anschlüsse bitte darauf Achten, dass keine Fasern des Tuchs in der Buchse hinterlas- sen werden. Verwenden Sie bitte zu Reinigung in keinem Fall ein feuchtes oder nasses Tuch! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 8: Technische Daten
0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7 bis +48 Volt Abmessung: 178,40 x 58,50 x 24,11 mm Gewicht: 850g 8. Technische Zeichnung © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 9: Description

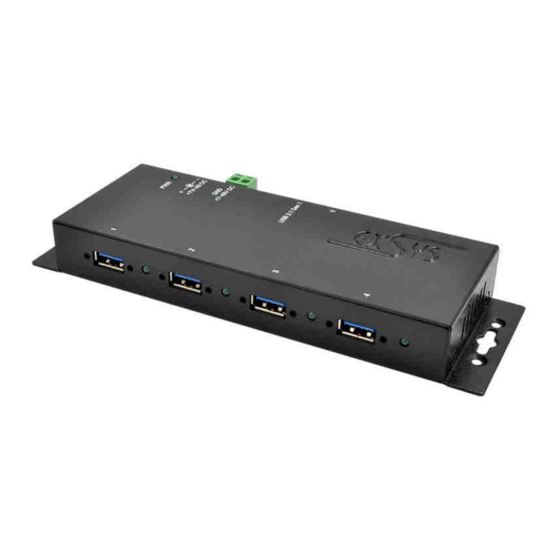

English 1. Description The EX-1183HMVS is a plug & play high-speed USB 3.1 (Gen1) metal hub for 4 USB devices. The EX-1183HMVS provides 4 ports for USB devices and 1 uplink port for PC. It supports all USB connections from 1.1 to 3.1. All ports can fix with screw lock. Via a external power supply it is possible to provide a maximum of 1,5A on each USB port. -
Page 10: Layout, Connections & Jumper Settings
Power Supply Power Supply 3.2 Connections +7V - 48V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +7V - 48V © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 11: Connections
Never plug in with force or in wrong direction. USB 3.1 (Gen1) B-Port: GND_DRAIN StdB_SSTX+ StdB_SSTX + StdB_SSTX - StdB_SSTX - Attention! Never plug in with force or in wrong direction. VBus © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Jumper Settings
EX-1183HMVS 3. Layout, Connections & Jumper Settings 3.3 Jumper Settings The EX-1183HMVS will be delivered with the setting Bus-Power. But you have the possibility to cut the power at the data line. For this you open the case with the four screws on both sides. -
Page 13: Hardware Installation
In the area of the connectors please make sure that no fibres from the cloth re- main in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 14: Technical Information
English EX-1183HMVS 7. Technical Information Chip-Set: Genesys Data Transfer Rate: 5Gbit/s Connectors: 4x USB 3.1 (Gen1) A-Port, 1x USB 3.1 (Gen1) B-Port, 1x Terminal Block 7-48V, 1x 7-48V Connector Hardware System: USB 1.1, 2.0, 3.0 & 3.1 Operating System: All Operating Systems Operating Temperature: 32°F to 131°Fahrenheit...
