1. Fasten standoffs onto metal pems configuration (A) of backplane (Fig. 5, pg. 4).
2. Position access controller module over corresponding standoffs and fasten screws into standoffs (Fig. 5a, pg. 4).
3. Mount backplane to enclosure with hardware.
HID VertX
Sub-Assembly
®
V100
V200
V300
V1000
V2000

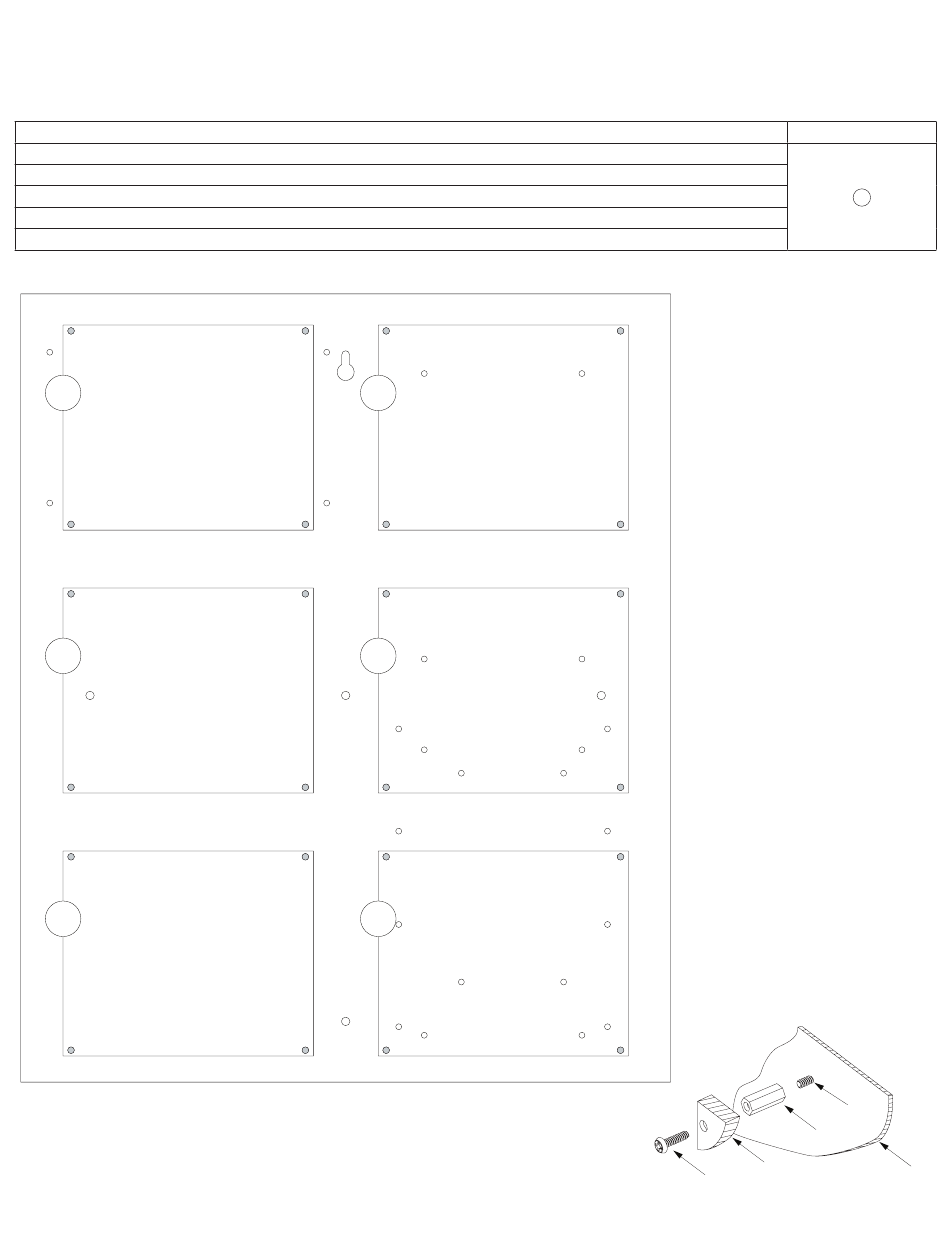

Fig. 5
A
A
A
- 4 -
TV1R: Configuration of HID VertX
Access Controller Position Chart for the Following Models:
A
A
A
Boards
®
Power Supply or
Sub-Assembly
Pan Head
Screw
Pem Mounting
A
Fig. 5a
Pem
Standoff
Backplane
