Altronix Trove1V1R Installation Manual page 3

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction.
Product is intended for indoor use only.
1. Remove backplane from enclosure prior to installing into rack cabinet
(do not discard hardware).
2. In order to mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) turn the
enclosure upside down. Punch out the knockout in designated location, on the back of the unit, from
outside of the drawer (Fig. 3, pg. 3). Insert the tamper switch into the knockout from outside of the drawer
with the button facing outwards and spaded connectors inside the drawer. Connect tamper switch wiring to the
Access Control Panel input or the appropriate UL Listed reporting device.
To activate alarm signal open the rack drawer.
3. Slide the Trove rack enclosure into an open 2U location in the rack cabinet.
4. Utilizing proper fasteners attach front ears to the rack rails.
5. Attach the rear of the adjustable slides to the rear rails of the rack cabinet with the proper fasteners.
6. Make sure that all internal cofigurations (wiring, voltage selection, switch settings, etc.) are complete
before mounting backplane back into enclosure.
7. After all components are mounted on the backplane, attach it to the enclosure using included hardware.
TV1R: Configuration of Altronix Power Supply and/or Sub-Assembly Boards

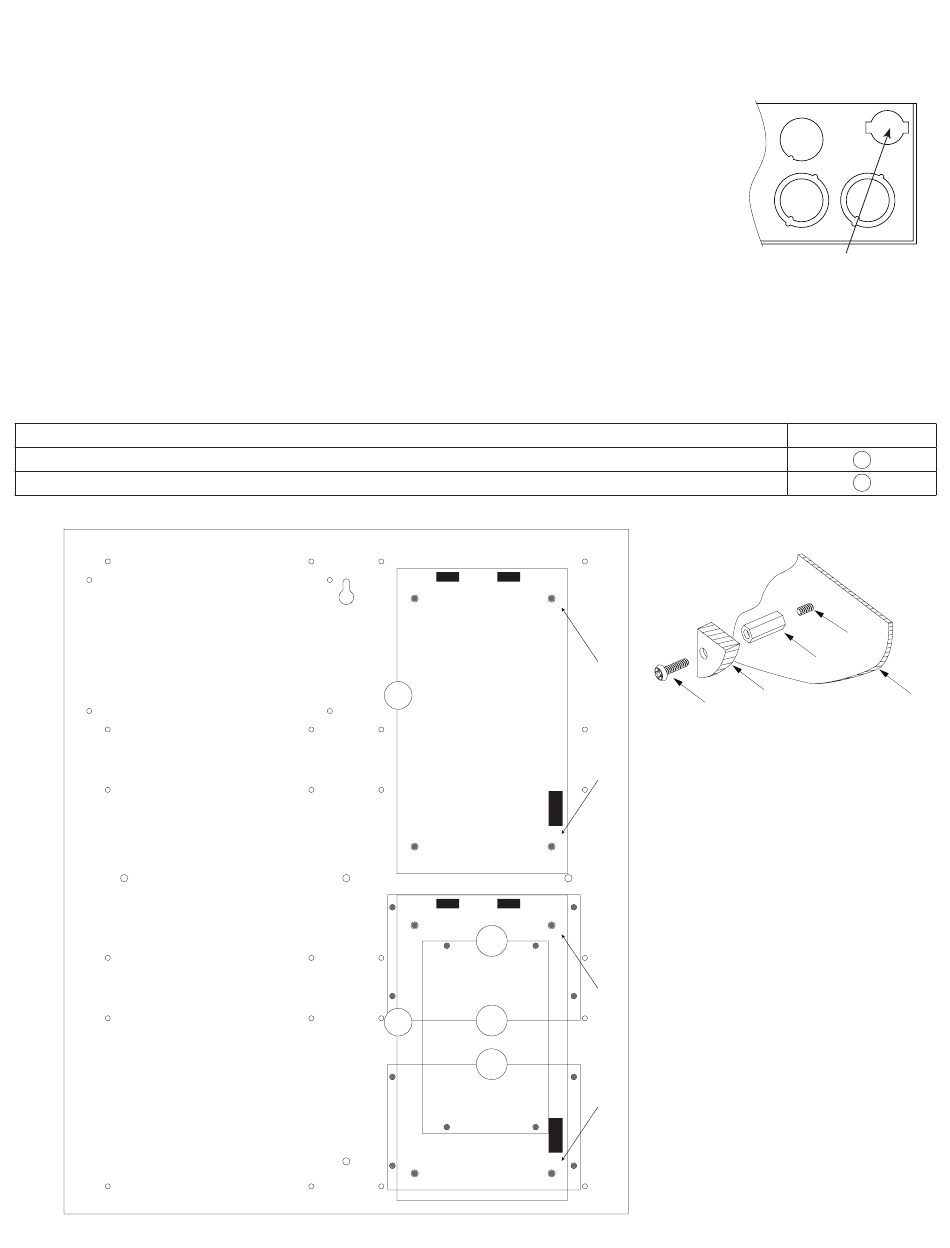

1. Fasten standoffs onto metal pems configuration (A) or (B) of backplane depending on the power supply and/or Sub-Assembly (Fig. 4, pg. 3).
2. Position access controller module over corresponding standoffs and fasten screws into standoffs (Fig. 4a, pg. 3).
3. Mount backplane to enclosure with hardware.
Altronix Power Supply/Charger or Sub-Assembly
eFlow4NB, eFlow6NB, eFlow102NB, eFlow104NB, ACMS8(CB), or ACM8(CB)
ACM4(CB), MOM5, PD4UL(CB), PD8UL(CB), PDS8(CB), or VR6
Fig. 4
Trove1V1R
Installation Instructions for Trove1R:
Position Chart for the Following Models:
A
A
Metal
Standoff
Placement
for Altronix
Power
Supplies
B
Metal
B
Standoff
Placement
for Altronix
B
Power
Supplies
Back of the drawer,
viewed from outside.
Fig. 3
Tamper Switch mounting location
Pem Mounting
A
B
Pem
Standoff
Power Supply or
Sub-Assembly
Pan Head
Screw
Fig. 4a
Backplane
- 3 -
