Versatile Access Power and Integration Enclosures
Trove1M1
- Trove1 enclosure with Altronix/Mercury backplane (TM1)
TM1
- Altronix/Mercury backplane only
Trove1M1 accommodates various combinations of Mercury boards with or without Altronix power
supplies and accessories for access systems.
Trove1M1
Trove1 enclosure with TM1 Altronix/Mercury backplane.
• 19 Gauge grey enclosure with ample knockouts for convenient access.
• Includes: tamper switch, cam lock, lock nuts and mounting hardware.
Enclosure Dimensions (H x W x D): 18" x 14.5" x 4.625" (457mm x 368mm x 118mm)
TM1
Altronix/Mercury backplane.
• 19 Gauge backplane.
• Includes mounting hardware.
Dimensions (H x W x D): 16.625" x 12.5" x 0.3125" (422.275mm x 317.5mm x 7.9mm)
TM1 Backplane accommodates a combination of the following:
• One (1) Altronix AL400ULXB2, AL600ULXB, AL1012ULXB, AL1024ULXB2,
eFlow4NB, eFlow6NB, eFlow102NB or eFlow104NB.
• One (1) Altronix ACM4(CB), MOM5, PD4UL(CB), PD8UL(CB), PDS8(CB), VR6.
• Two of either Mercury EP1502, MR52, MR16IN, MR16OUT.
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all
local codes and authorities having jurisdiction. Product is intended for indoor use only.
1. Remove backplane from enclosure. Do not discard hardware.
2. Mark and predrill holes on the wall to line up with the top two keyholes in the enclosure.
Install two upper fasteners and screws in the wall with the screw heads protruding.
Place the enclosure's upper keyholes over the two upper screws, level and secure.
Mark the position of the lower two holes. Remove the enclosure.
Drill the lower holes and install the two fasteners. Place the
enclosure's upper keyholes over the two upper screws.
Install the two lower screws and make sure to
tighten all screws.
3. Mount included UL Listed tamper switch
(Ademco model 112 or equivalent) in desired location,
opposite hinge. Slide the tamper switch bracket onto
the edge of the enclosure approximately 2" from the
right side (Fig. 1, pg. 1). Connect tamper switch
wiring to the Access Control Panel input or the
appropriate UL Listed reporting device.
To activate alarm signal open the door of the enclosure.
4. Mount Altronix/Mercury modules to TM1 backplane,
refer to Page 2.
Trove1M1 - Altronix/Mercury
Installation Guide

Overview:

Specifications:

Installation Instructions:

Honeywell
model # 112
Tamper Switch
or equivalent
(provided)
to Access Control Panel
or U.L. Listed
Reporting Device
Rev. 080816

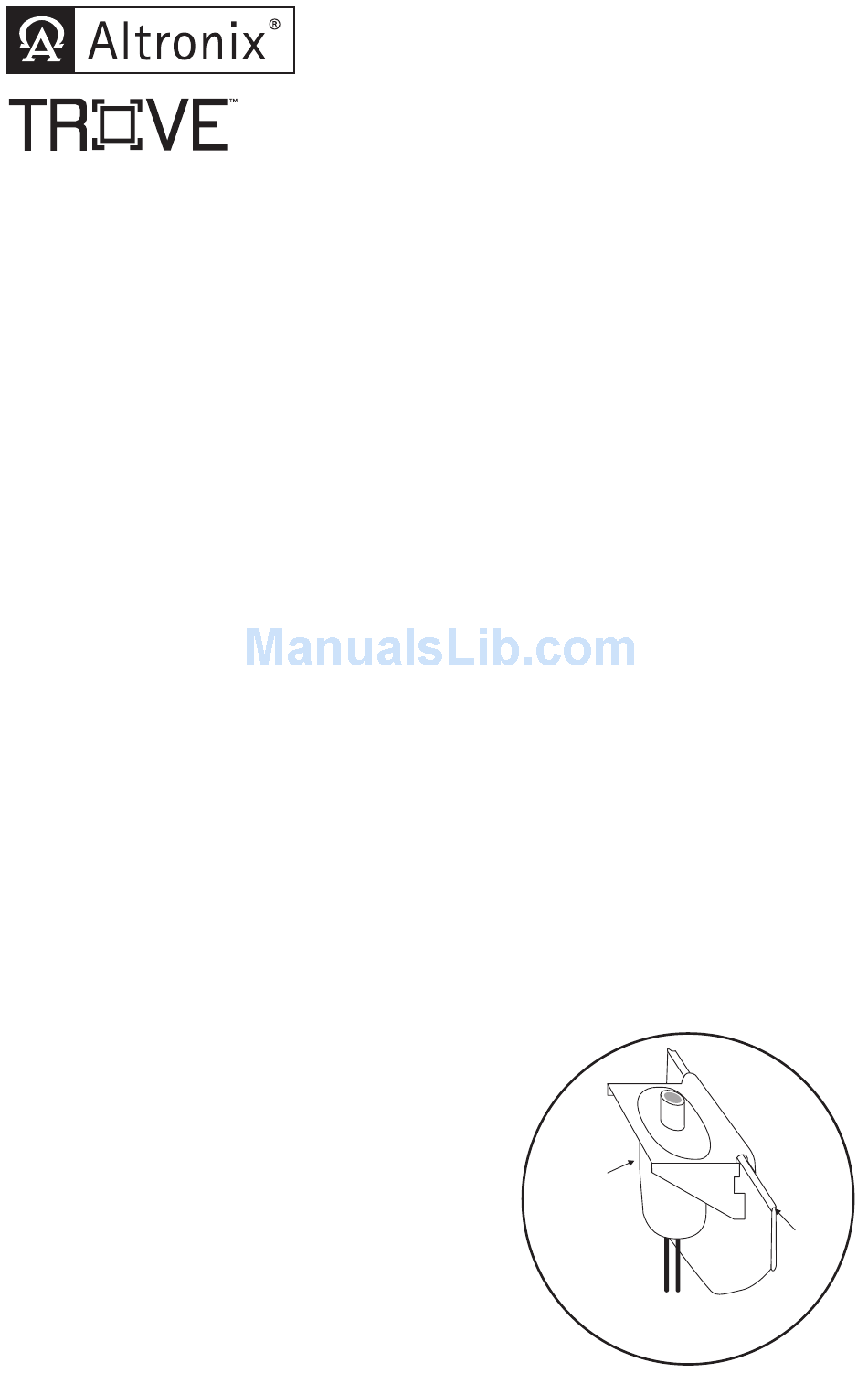

Fig. 1
Enclosure
Edge of
Enclosure
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the trove1m1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Altronix trove1m1

  • Page 1: Installation Guide

    Versatile Access Power and Integration Enclosures Trove1M1 - Trove1 enclosure with Altronix/Mercury backplane (TM1) - Altronix/Mercury backplane only Overview: Trove1M1 accommodates various combinations of Mercury boards with or without Altronix power supplies and accessories for access systems. Specifications: Trove1M1 Trove1 enclosure with TM1 Altronix/Mercury backplane.
  • Page 2 Configuration of Altronix Power Supply and/or Sub-Assembly Boards 1. Fasten standoffs (provided) to pems that match the hole pattern for Altronix Power Supply/ Chargers or Altronix Sub-Assembly boards (Fig. 2, pg. 2). Use male/female nylon standoffs for the upper two mounting holes in the board. Use metal standoffs for the bottom mounting holes to provide sufficient grounding for the board.
  • Page 3 TM1 Dimensions 12.5” (321.31mm) 0.5” (12.7mm) 8.15” (207.01mm) 16.65” 15.65” (422.9mm) (397.5mm) 0.5” (12.7mm) 6.25” (158.75mm) Trove1M1 - Altronix/Mercury - 3 -...
  • Page 4 1.25” 1.362” (31.75mm) (34.59mm) Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice. 140 58th Street, Brooklyn New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com. Made in USA. MEMBER IITrove1M1 - Rev. 08082016...
