Kichler Lighting Chance Harbor Installation Instructions

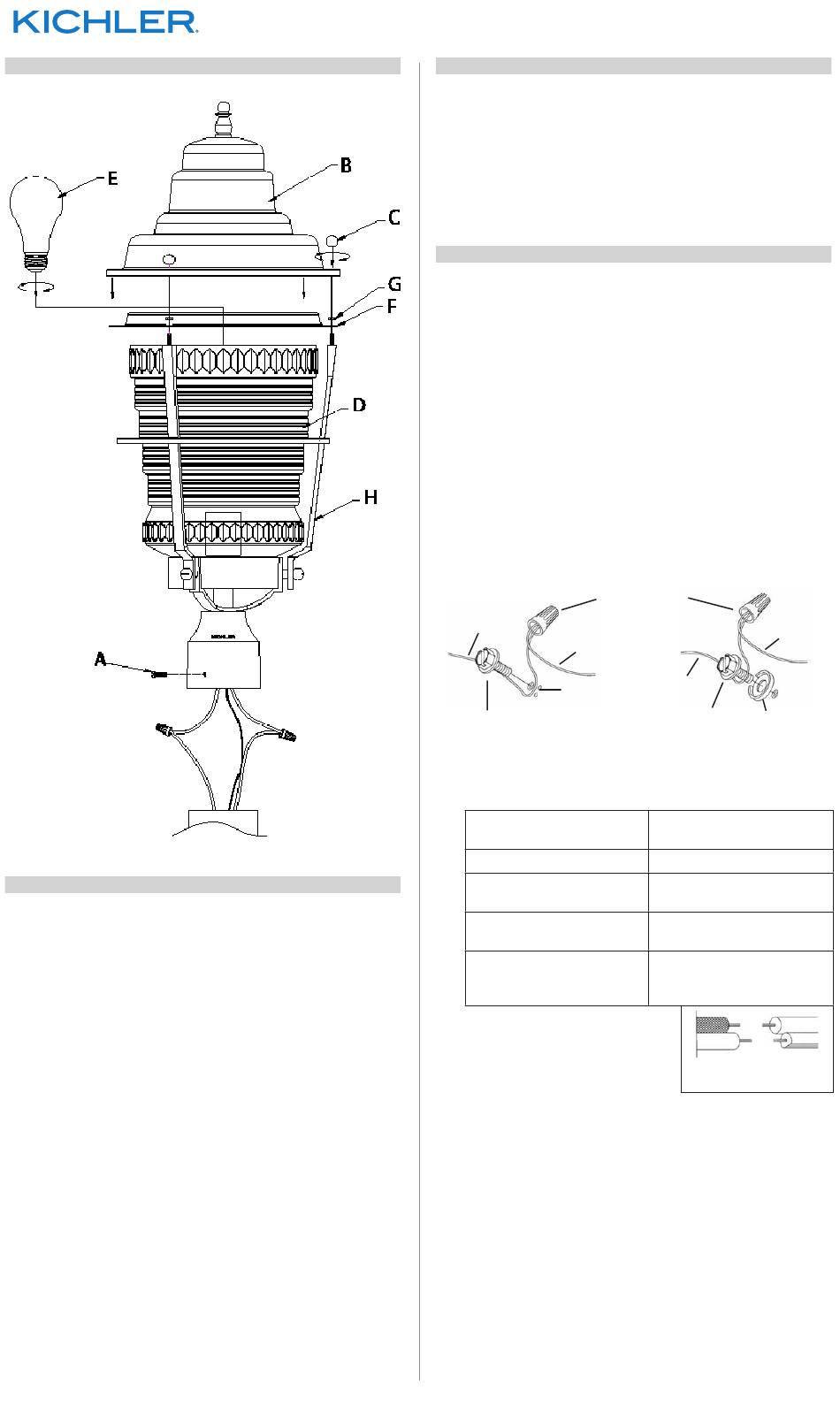

Fixture Diagram

Parts List

[A] Screws [D] Glass
[B] Top [E] Bulb
[C] Ball Knobs [F] Upper Cage
[G] Hexnuts
[H] Fixture
Ring
We're here to help
Cautions
CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel or main
fusebox before starting and during the installation.
WARNING:
This fixture is intended for installation in accordance
with the National Electrical Code (NEC) and all local code
specifications. If you are not familiar with code requirements,
installation by a certified electrician is recommended.
Installation Instructions
1) Slip fixture over post and mark position of mounting
holes in post.
2) Remove fixture from post.
3) Drill 3/16" dia holes in post at positions marked .
4) Grounding instructions: (See Illus. a or b).
a) On fixtures where mounting strap is provided with
a hole and two raised dimples, wrap ground wire
from outlet box around green ground screw, and
thread into hole.
b) On fixtures where a cupped washer is provided,
attach ground wire from outlet box under cupped
washer and green ground screw, then thread into
mounting strap.
If fixture is provided with ground wire. Connect fixture
ground wire to outlet box ground wire with wire
connector (Not provided) after following the above
steps. Never connect ground wire to black or white
power supply wires.
a
OUTLET BOX
GROUND
FIXTURE
GROUND
DIMPLES
GREEN GROUND
SCREW
5) Make wire connection. Reference chart below for
correct connections and wire accordingly.
Connect Black or Red
Supply Wire to:
Black
*Parallel cord (round &
smooth)
Clear, Brown, Gold or
Black without Tracer
Insulated wire (other
than green) with copper
conductor
*Note: When parallel wire (SPT
1 & SPT 2) are used. The neutral
wire is square shaped or ridged
and the other wire will be round
in shape or smooth (See illus.)
6) Slip fixture[H] over post and secure in place using
provided screws[A].
7) Insert recommended bulb[E] (Not supplied).
8) Lower the top[B] onto fixture over the three (3)
threaded studs and using the three (3) Ball Knobs[C],
secure into place.
9) To change the glass, reverse step 8 above. Remove the
three (3) Hexnuts[G] and lift off the upper cage ring[F],
and replace the glass[D].
866-558-5706
Hrs: M-F 9am to 5pm EST
WIRE CONNECTOR
OUTLET BOX
GROUND
GREEN GROUND
SCREW
Connect White Supply
Wire to:
White
*Parallel cord (square &
ridged)
Clear, Brown, Gold or Black
with Tracer
Insulated wire (other
than green) with silver
conductor
Neutral Wire
b
FIXTURE
GROUND
CUPPED
WASHER
IS-49941-CB
