Bender FP200 Quick Start Manual

快速操作手册 / Quick-start guide

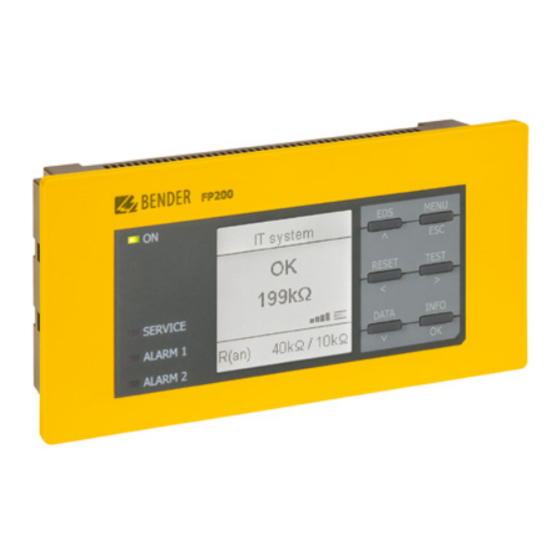

FP200
前面板
用于 ISOMETER® iso685-S 系列

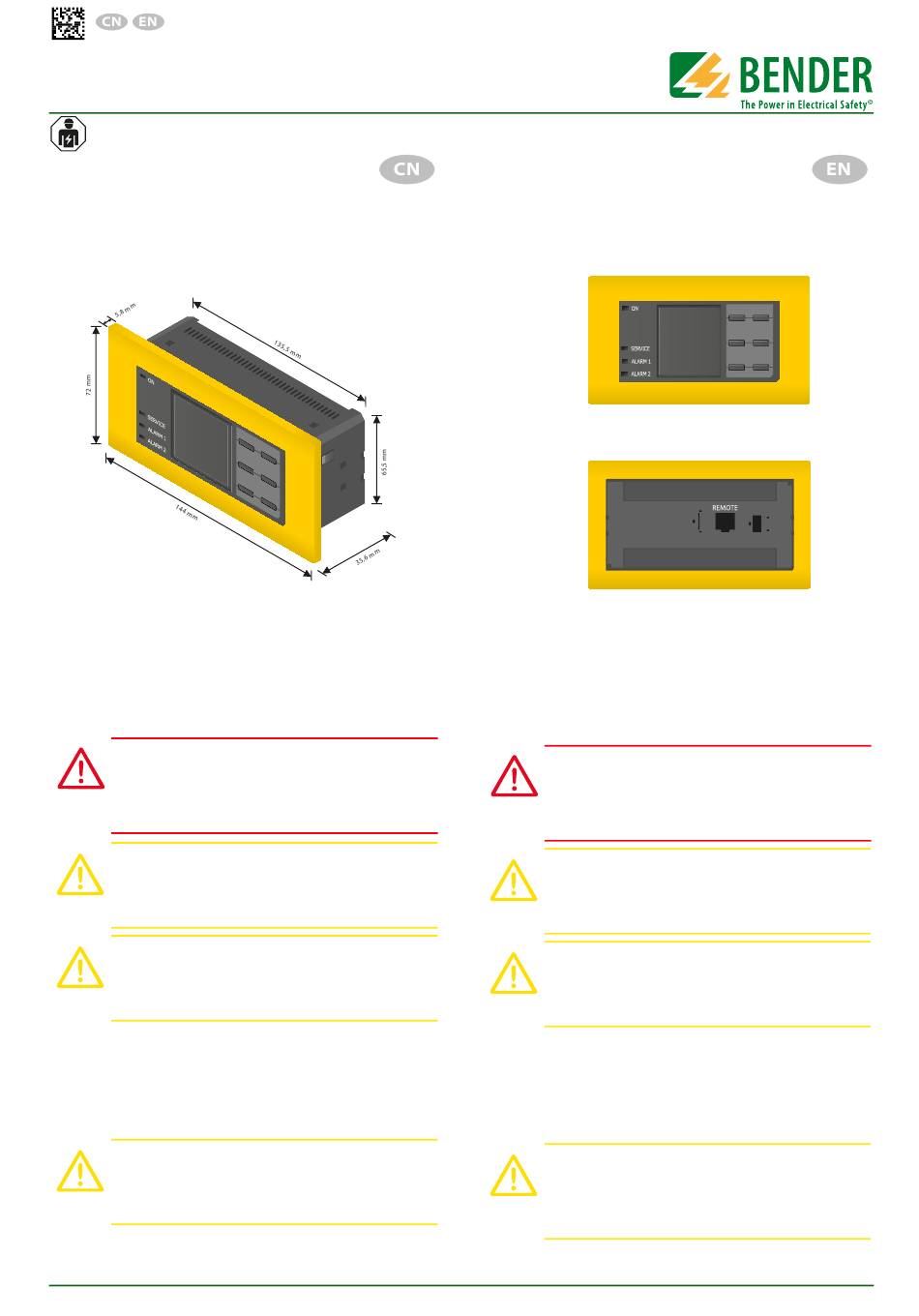

尺寸 / Dimensions
使用目的
前面板 FP200 是一款用于 ISOMETER® iso685 操作的显示和操
作单元。 它的安装方式类似于前面板。只能与 ISOMETER®
iso685-S 系列结合使用。
安装
电击危险 !
在安装设备前，请确保整个系统已经断电。否则，
你可能会受到电击。 此外，电气装置可能会被损
危险
坏，设备可能会被破坏。
财产损失的风险 !
当连接到线路电缆时，确保主要设备电源关闭。
警告
财产损失的风险 !
当安装 FP200W 时， 请确保使用螺丝旋紧固定，因
为当有过重的机械负载时设备可能会松开。
警告
有 两种方 式 可 以 把 FP200 安 装 在你的 柜子 中。 一 种是把
ISOMETER® iso685-S 版本设备安装在 FP200 的前面板导轨上，
或者连接 FP200 到 ISOMETER® iso685-S 系列远程界面。
使用电缆远程安装方式
财产损失的风险 !
不要太过扭曲电缆，这样可能到造成电缆损坏。
确保在柜子门后至少有 60mm 的距离用于 FP200 和
警告 跳线。
FP200_D00169_01_Q_CNEN/10.2016
Front panel for
ISOMETER® iso685-S variants
后视图 / Back view

Intended use

The FP200 front panel is a display and operator unit for the
ISOMETER® iso685. It is installed as a front panel. The FP200 can
only be used together with the ISOMETER® iso685-S variant.

Mounting

Risk of electric shock!
Before installing the unit, make sure the complete sys-
tem is powered off. Otherwise you may get an electric
DANGER
shock. Furthermore, the electrical installation may be
damaged and the device may be destroyed.
Risk of damage to property!
Make sure the main unit is powered down while it is
being connected to the patch cable.
CAUTION
Risk of damage to property!
When mounting the FP200W it is necessary to secure the
screws with thread-locking fluid since they could loosen
CAUTION
when suffering high mechanical load.
There are two ways in which the FP200 can be installed in your
cabinet. Either click the ISOMETER® iso685-S variant device onto
the front panel rail of the FP200 or connect the FP200 to the
ISOMETER® iso685-S variant REMOTE interface.

Remote mounting using a patch cable

Risk of damage to property!
Do not bend the patch cable too much as this may dam-
age the cable. Ensure that a space of at least 60 mm ex-
CAUTION
ists at the back of the cabinet door for the FP200 and
patch cord.
1
