If you have a problem, question, or request, call
your local dealer, or Coalesse at 1.800.627.6770
Or visit our website: www.coalesse.com
©
2013 Coalesse
San Francisco, California U.S.A.
Printed in U.S.A.

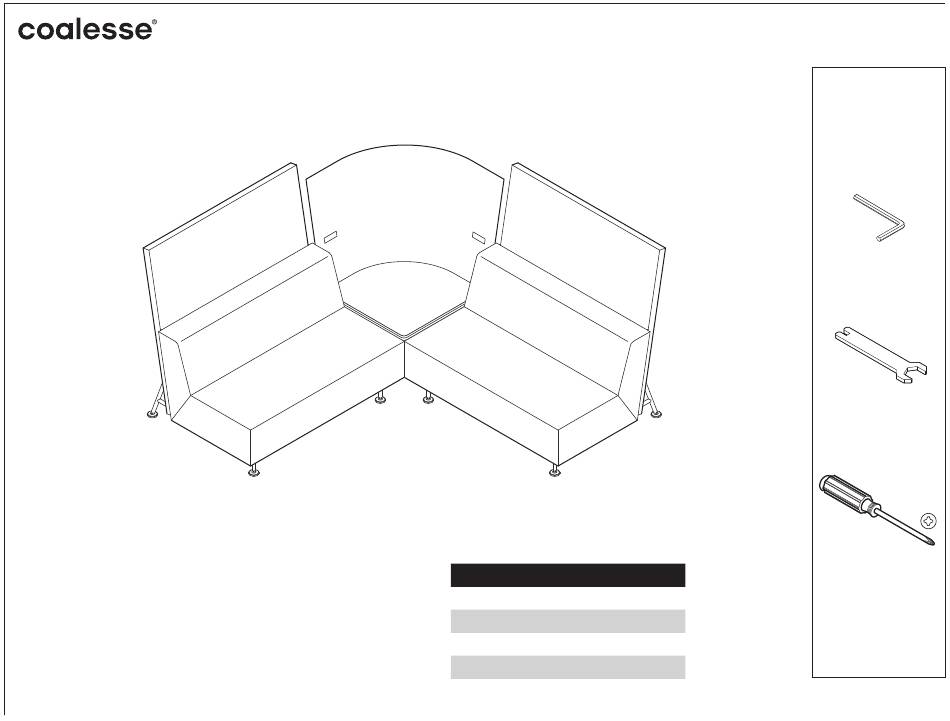

Bix
Bridge Table Installation Instructions
™
Table of Contents
Page
Topic
2
Bridge Table - Corner Top
3
Bridge Table - Rectangular Top
4
Straight Screen
5
Corner Screen
Hex Key-M4
Part No. 804022
Combo Wrench
Part No. 804025
Page 1 of 5
939503317 Rev B
Advertisement
Related Manuals for Coalesse Bix Bridge Table
Summary of Contents for Coalesse Bix Bridge Table
- Page 1 Topic Bridge Table - Corner Top Bridge Table - Rectangular Top If you have a problem, question, or request, call Straight Screen your local dealer, or Coalesse at 1.800.627.6770 Or visit our website: www.coalesse.com Corner Screen © 2013 Coalesse San Francisco, California U.S.A.
- Page 2 Bridge Table - Corner Top: Assemble the metal frame as shown in Steps 1 & 2 using 1/4"-20 x 2.25" FH-PL-BO screws, (p/n 673085). Snap-on wire clips, (p/n 631069), are furnished for tops with utility. Locate the wire clips at your discretion as shown in Steps 1 & 2. Temporarily remove the three JCB machine screws, (p/n 673058), on the bottom of the seat.
- Page 3 Wire Clip Bridge Table - Rectangular Top: p/n 631069 Assemble the metal frame as shown in Steps 1 & 2 using 1/4"-20 x 2.25" FH-PL-BO screws, (p/n 673085). Snap-on wire clips, (p/n 631069), are furnished for tops with utility. Locate the wire clips at your discretion as shown in Steps 1 & 2. Temporarily remove the three JCB machine screws, (p/n 673058), on Screw (1/4-20 x 2.25") the bottom of the seat.
- Page 4 Straight Screen: Align and attach the straight screen mounting bracket, (p/n 679403), to the underside of the rectangular top (pilot holes provided) as shown using No.-10 x .625" Pilot Holes PH-PL-BO wood screws, (p/n 672028). (underside) F R O Align and attach the straight screen and screen support wire frame, (p/n 712301 &...
- Page 5 Mounting Bracket p/n 679402 Corner Screen: Mounting Bracket p/n 679400 Align and attach the corner screen mounting brackets, (p/n 679400, 679401, & 679402), to the underside of the corner top (pilot holes are provided) as shown in Step 1 using No. 10 x .625" PH-PL-BO wood screws, (p/n 672028). Align and attach the corner screen and screen support wire frames, (p/n 712300 &...
