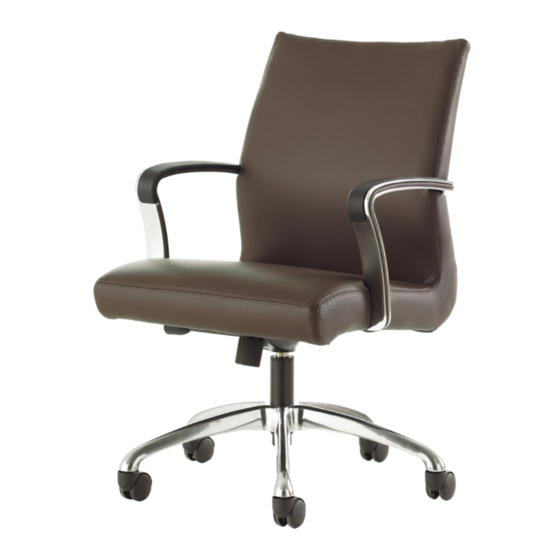

Coalesse Chord Replacement

Chair arm replacement

If you have a problem, question, or request, call

your local dealer, or Coalesse at 1.800.627.6770

Or visit our website: www.coalesse.com

2016 Coalesse

San Francisco, California U.S.A.

Printed in U.S.A.

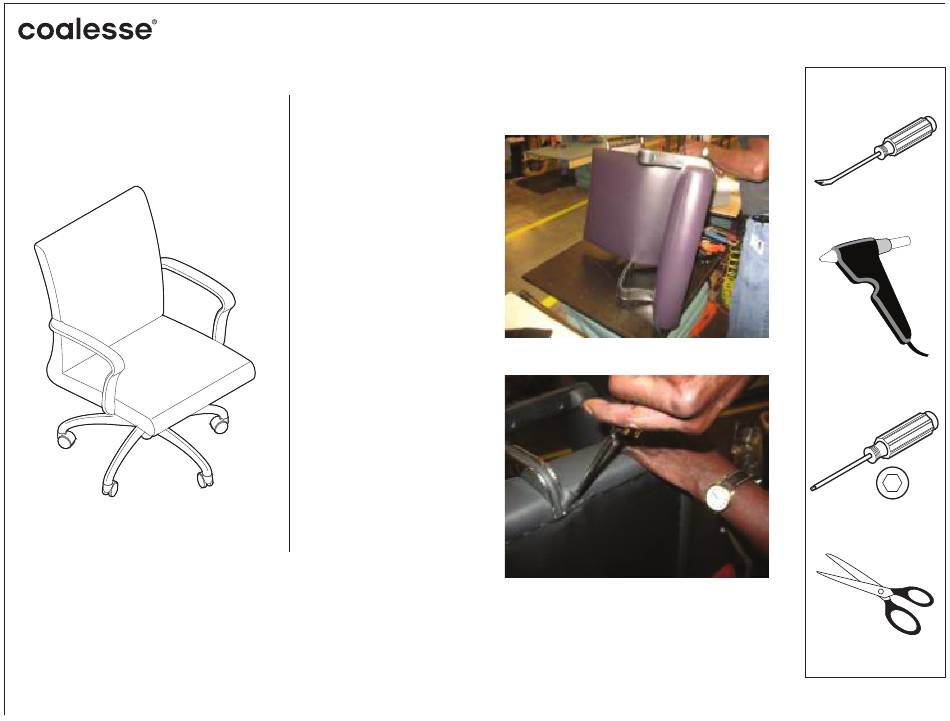

Carefully pick up the chair

with both hands and place on

its side on a clean, scratch

resistant surface.

Use staple puller and start

removing staples at bottom of

the seat at end of arm.

™

Chord

Chair Arm Replacement

Staple Puller

5mm Hex Drive

Page 1 of 5

102439601 Rev A

Table of Contents

Do you have a question about the Chord and is the answer not in the manual?

Page 1 5mm Hex Drive If you have a problem, question, or request, call your local dealer, or Coalesse at 1.800.627.6770 Or visit our website: www.coalesse.com © 2016 Coalesse San Francisco, California U.S.A.
Page 2 Use your hands and start to remove Slowly begin pulling welt away from arm. Be careful around the back’s area. Use your the welt at the bottom of the seat. finger and press firmly against the welt while pulling with your other hand. This will help avoid the back cover tearing.
Page 3 Attaching New Arm Reverse step #5 to attach the new arm to the chair. While the chair still at side position, use clean rag to Use hot melt gun and apply adhesive remove any burr or grease inside the arm groove. inside the back’s groove.
Page 4 Hold welt cord at the seam line and press Turn the chair on its side. starting at center applying cord working your way both left and right. Repeat steps 8 & 9 to attach the welt to the arm. Page 4 of 5 102439601 Rev A...
Page 5 The welt should extend out approx 3” from end of arm. This amount is needed Insert the welt inside the black fabric. to complete secure the welt to the bottom of the seat. Cut any excess weld. Use staple gun and attached end of cord and secure black fabric.
