ADVANCED WHOLE HOUSE FANS
THE NATURAL CHOICE FOR ENERGY SAVINGS!
OWNER'S GUIDE
GARAGE FAN MODELS
DO NOT THROW AWAY! SERIAL NUMBER FOR FAN IS LOCATED ON
BACK COVER OF OWNER'S GUIDE. RETAIN IN A SAFE PLACE.
SEE
//
H E A R
//
F E E L
THE QUIETCOOL DIFFERENCE

Advertisement

Table of Contents
loading

Related Manuals for QuietCool GA ES-1500

Summary of Contents for QuietCool GA ES-1500

  • Page 1 THE NATURAL CHOICE FOR ENERGY SAVINGS! OWNER’S GUIDE GARAGE FAN MODELS DO NOT THROW AWAY! SERIAL NUMBER FOR FAN IS LOCATED ON BACK COVER OF OWNER’S GUIDE. RETAIN IN A SAFE PLACE. H E A R F E E L THE QUIETCOOL DIFFERENCE...

  • Page 2: Table Of Contents

    4. Follow Instructions - All installation and operating instructions should be followed. 5. Heat - The QuietCool system should be situated away from heat sources. 6. Damage Requiring Service - Only qualified service personnel should service the QuietCool system. The user should not attempt to service the product.

  • Page 3: System Overview

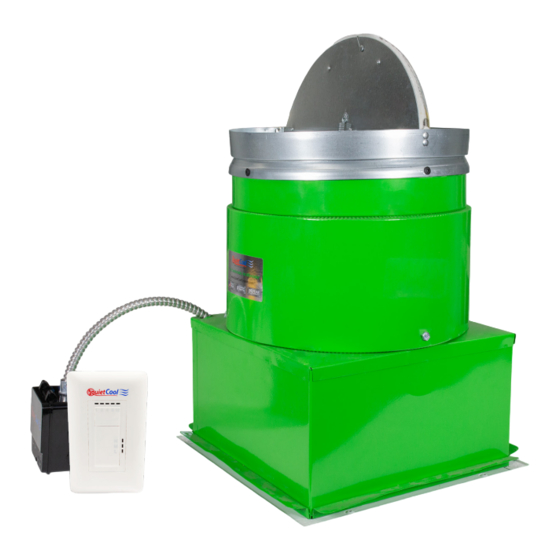

    GA ES-1500 to ventilate both your garage and attic. And now, the GA ES-1500 is even easier to install with the included Wireless RF Control Kit! Included in the box is the brand new Wireless RF Control Kit that allows you to turn on your GA ES-1500 from anywhere in your...

  • Page 4: Benefits

    Venting plays a very significant role in the performace of QuietCool fans. QuietCool recommends a minimum of 1 SQ. FT. of venting for every 750 CFM in the QuietCool system. If an attic has at least 1:750 attic venting, the QuietCool system will operate efficiently and effectively.

  • Page 5: Installation

    GA MODEL FANS. ALWAYS FOLLOW LOCAL BUILDING CODES. 1. Determine in which area you would like to install your QuietCool Garage Attic Fan. Now it’s time to find the exact location using a stud finder or by going up into the attic and finding the location. Locate the ceiling studs and mark the location for the fan to be installed.

  • Page 6: Setting Up The Wireless Control

    2.1D) AVOID BACKDRAFTS: MAKE SURE THE GARAGE FAN WILL NOT BACKDRAFT COMBUSTION APPLIANCES IN THE GARAGE. QUIETCOOL GARAGE FANS MOVE LARGE QUANTITIES OF AIR. 3. SETTING UP THE WIRELESS CONTROL NOTE: Wiring Diagrams are for examples ONLY. Wiring should be done by an experienced electrician.
  • Page 7 1-speed and the fan will be on. Press the Test button again and the fan should shut off and the LED will be off. 9. If the fan doesn’t operate as described in step 8, please check the dip switch postion. 1-888-QUIETCOOL...

  • Page 8: Fan Hub Led Indicators

    Fan Hub LED Indicators Power Indicator • The Power LED indicator will always be lit when the Hub is connected to Power. • If this LED is not lit, check the power source Timer Indicator • The Timer LED indicator will light up as shown below: 1.

  • Page 9: Pairing The Wall Switch

    3. If the fan comes on, this is a good location. 4. If all the LED indicators turn on, the Wall Switch is not communicating with the Hub and you will need to find a location closer to the fan. 1-888-QUIETCOOL...

  • Page 10: Installing The Wall Switch

    Installing the Wall Switch 1. Using your hands, slide the Wall Switch off the mounting plate. 1 2 4 8 12 2. If you have an existing Wall Switch with a junction box installed, install the mounting plate over the junction box using the oblong holes on the mounting plate.
  • Page 11 In order for the fan to run, a Timer selection MUST be made. When the Timer status is off (no LED indicators lit), you can still change the Speed setting. The Speed setting will take effect once the Timer selection is made. 1-888-QUIETCOOL...

  • Page 12: Frequently Asked Questions

    Why is there a medium speed if my fan is only a two speed? The RF Hub and RF Switch are universal to all QuietCool models. There are some units that feature three speeds which use the medium on the switch. As long as your DIP switch is set correctly in the hub, the switch will automatically...

  • Page 13: Wireless Rf Control Kit Warranty

    This warranty is the only warranty extended by QC Manufacturing, Inc. to purchasers or suppliers of our equipment. QC Manufacturing Inc. disclaims all other warranties, express or implied, that arise by operation of the law. QC Manufacturing, Inc. Customer Service 43352 Business Park Dr. Temecula, CA 92590 1-888-QUIETCOOL www.QuietCoolSystems.com 951-325-6340...

  • Page 14: System Operating Instructions

    QuietCool Garage Fan (GA ES-1500) QuietCool Garage Fans work great to cool your garage, man cave, or workshop. Our two models work for different applications. Our GA ES-1500 works to cool and ventilate your garage and the attic above your garage. This greatly reduces the heat transfer between the attic and garage on really hot days.

  • Page 15: Warranty

    RM ES-2200 ---- installed and used in a residence under normal conditions within the United States: A. Fifteen year coverage applies to the QuietCool motor fan assembly. At our option we will repair or replace any part of the assembly should it fail to operate during the first fifteen years from the date of original purchase.
  • Page 16 QuietCool is Proudly Designed and Built in California Fan Serial Number Information Retain for your records. Serial number is required for warranty purposes. ® ADVANCED WHOLE HOUSE FANS 43352 Business Park Drive, Temecula, CA 92590 // PH 951.325.6340 // QUIETCOOLSYSTEMS.COM...
