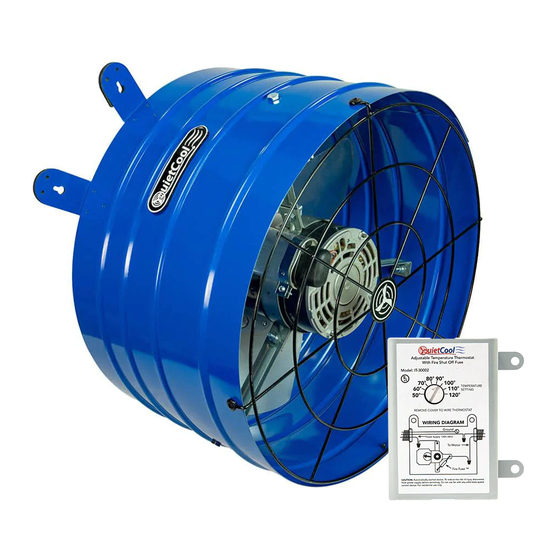

- Page 1 OWNER’S GUIDE PRO ATTIC GABLE FAN AFG PRO-2.0 DO NOT THROW AWAY! SERIAL NUMBER FOR FAN IS LOCATED ON THE BACK COVER OF THE OWNER’S GUIDE. LEAVE WITH HOMEOWNER...
-
Page 2: Table Of Contents
3. WIRING ..........7 3.1 Thermostat Wiring - AFG PRO-2.0 ..... . . 7 3.2 Remote Thermostat Wiring - AFG PRO-2.0 . -
Page 3: System Overview
INTRODUCTION CONGRATULATIONS on the purchase of your new QuietCool Attic Fan! QuietCool Attic Fans are the best in the business. The AFG PRO- 2.0 is the attic gable fan that offers the best value at the best price point. With two available speeds with an energy efficient PSC motor,... -
Page 4: System Venting Requirements
Venting plays a very significant role in the performance of QuietCool fans. QuietCool recommends a minimum of 1 SQ. FT. of venting for every 750 CFM in the QuietCool system. If an attic has at least 1:750 attic venting, the QuietCool system will operate efficiently and effectively. If an attic has less than 1:750 attic venting, the system may not operate as efficiently, or effectively, as it could with 1:750 attic venting. -
Page 5: Getting Started - Important - Read Before Install
5. WATER - The QuietCool system should not be used near water. 6. HEAT - The QuietCool system should be situated away from heat sources. 7. DAMAGE REQUIRING SERVICE - Only qualified service personnel should service the QuietCool system. The user should not attempt to service the product. -
Page 6: Installation
Vent should be installed in the upper center section of the gable. 1. Installing the QuietCool AFG is very easy. To install the AFG, simply mount the gable fan to your gable vents as shown in the following steps. You will use the 12 included All-Purpose screws. -
Page 7: Installing Afg Vent Covers
Figure 2.1A Included with your QuietCool Attic Gable Fan are four vent covers that are designed to be installed around the attic fan housing to block any air backdrafting into the attic through a gable vent that is larger than the attic fan cylinder, causing air to cycle in and out around the vent. -
Page 8: Remote Thermostat Wiring - Afg Pro-2.0
3. Mount the thermostat in the best location for thermostat readings. Run a 2 wire Romex from the junction box to the thermostat. Tape the white wire on each side of the 2 wire Romex to indicate that it is a switch leg. 1-888-QUIETCOOL... - Page 9 4. In the junction box, with a wire nut, tie the white common wires together. Using the green ground screw, ground the green wire from the fan and the 2 wire Romex from the thermostat, to the junction box. 5. High Speed: Tie the black wire from the fan to the taped white wire from the thermostat (see Figure 3.2A) Low Speed: Tie the red wire from the fan to the taped white wire from the thermostat (see Figure 3.2B)
-
Page 10: System Operating Instructions
The thermostat also includes a Fire Fuse that will turn off the attic fan if it detects a temperature above 182ºF in your attic. The purpose of this is to shut off in the event of a house fire to prevent the spread of flames. 1-888-QUIETCOOL... -
Page 11: How To Use Attic Fans
USING YOUR QUIETCOOL ATTIC FAN Attic fans are designed to cool and ventilate your attic all year long. Depending on the month of the year, you will want to change the temperature setting of your thermostat. SUMMER MONTHS In the summer, the attic in your home can reach temperatures in excess of 150ºF. - Page 12 1-888-QUIETCOOL...
- Page 13 QUIETCOOLSYSTEMS.COM...
-
Page 14: Warranty
No subsequent purchaser of the unit or of a home in which it is installed is entitled to any of the benefits of this warranty. The QuietCool Product that you have purchased has a limited warranty from the date of purchase against defects in workmanship and materials. - Page 15 The electrical motor is to be used solely as a direct replacement for a motor of the same model in QC Manufacturing, Inc., QuietCool products. Using the motor in any other product could result in electrical shock and/ or fire, which may cause property damage, serious injury or even death. Any motor replacement should be installed by a qualified licensed electrician in accordance with local, state and national electrical codes and standards.
- Page 16 Rev. 8/30/23 FAN SERIAL NUMBER INFORMATION RETAIN FOR YOUR RECORDS. SERIAL NUMBER IS REQUIRED FOR WARRANTY PURPOSES. 1-888-QUIETCOOL | WWW.QUIETCOOLSYSTEMS.COM...
