- Page 1 ADVANCED WHOLE HOUSE FANS OWNER’S GUIDE TRIDENT PRO LINE DO NOT THROW AWAY! SERIAL NUMBER FOR FAN IS LOCATED ON BACK COVER OF OWNER’S GUIDE. LEAVE WITH HOMEOWNER. S E E H E A R F E E L THE QUIETCOOL DIFFERENCE QUIETCOOLSYSTEMS.COM...
-
Page 2: Table Of Contents
Installing QuietCool ........ -
Page 3: Quickstart Guide
4. DO NOT use any QuietCool ducted whole house fan in a home with all closed windows. 5. TEST your QuietCool unit before installation using included power cord. If the fan does not work, call us immediately. Special Instructions to Contractors: 1. -
Page 4: Product Diagram

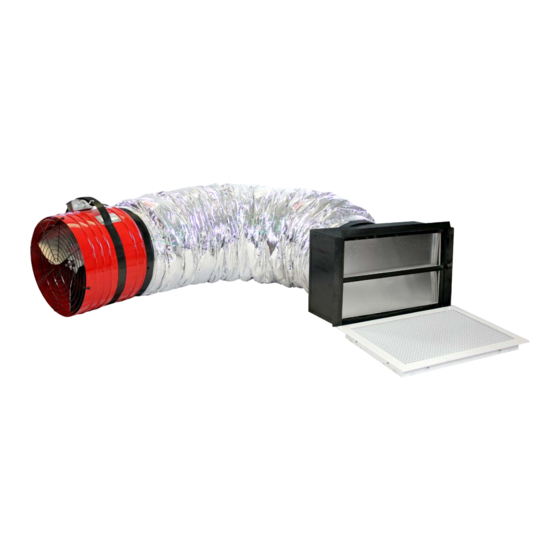

Product Diagram A. Hanging Strap: This strap is used to hang the fan from the rafters in the attic. B. Handy Box: This is where all of the wiring for the fan is contained. C. Motor Housing: This is the cylinder that houses the motor. Comes in diameters of 14”, 16”, 18” and 20”. D. -
Page 5: When To Run Fans
If you have a multi-speed fan, you will get the best cooling effect when you turn the fan on low after desired cooling occurs and let it run throughout the night. QuietCool can also be used in the winter to heat your home during the day and exhuast the pollutants inside your home. -
Page 6: System Overview
Once the air outside is cooler than the indoor air, crack open a few windows, turn your QuietCool on, and enjoy the hot air being sucked out of your home and pushed out of your attic with a nice, cool breeze. While... -
Page 7: System Venting Recommendations
Venting plays a very significant role in the performace of whole house fans. QuietCool recommends a minimum of 1 SQ. FT. for every 750 CFM in the QuietCool system. If an attic has at least 1:750 attic venting, the QuietCool system will operate efficiently and effectively. If an attic has less than 1:750 attic venting, the system may not operate as efficiently, or effectively, as it could with 1:750 attic venting. -
Page 8: Installation
Simply follow the steps given below: 1. Determine from down below in which areas you would like to install your QuietCool fan. Go up into Installation Video: the attic to mark the exact location for the fan. Make sure you Watch the video by have a minimum of 30”... - Page 9 90 degree bend to help reduce noise level. The angle is important so the fan does not disturb any blown-in insulation in your attic. NOTE: Once your QuietCool fan is hung, it’s time to go below and install the damper box and ceiling grille. 1-888-QUIETCOOL...
- Page 10 NOTE: The QuietCool Damper Box includes removable flanges in the case that you are installing the damper box between studs that are exactly 16” on center. To remove the flanges, simply take a screwdriver and pry between the flange surface and the damper box.
- Page 11 Whole house fans are capable of pulling large quantities of air, from the home, particularly if not enough windows are open. This could easily back draft gas appliances located inside your home. Take care if you have gas appliances installed inside of your home. 1-888-QUIETCOOL...
-
Page 12: Installing Vertical Adapter
3-2 Installing Vertical Adapter (vertical adapter sold seperately) A vertical wall adapter allows a damper box to be installed in the wall instead of the ceiling. A vertical adapter is installed on the wall with the damper box mounted diagonally to the wall so the damper doors close properly when the fan is turned off. -
Page 13: Wiring
For wiring of the TRI PRO-6.5 with four speeds. NOTE: QuietCool whole house fans can be used with the included power cord with a plug outlet, but will only operate on high speed. The system will also work with a wireless system using the power cord. - Page 14 Figure A Power Source Power Source Whole House Fan Whole House Fan Single Speed Wiring Single Speed Wiring Tie White Common Tie White Common Wires Together Wires Together Tie Ground & Bare Tie Ground & Bare Copper Wires Together Copper Wires Together Black Tied Black Tied Together with Black...
-
Page 15: Two Speed Wiring
Tie All Ground & Bare Together with Black Together with Black Copper Wires Together Copper Wires Together 8 HOUR 8 HOUR High High 4 HOUR 4 HOUR 2 HOUR 2 HOUR 1 HOUR 1 HOUR HOLD HOLD Red Switch Leg Red Switch Leg 1-888-QUIETCOOL... -
Page 16: Four Speed Wiring
5. Begin wiring the fan by opening up the handy box. Take off the wire nuts within the handy box. Unscrew the green ground wire from the handy box. Detach the green ground wire from the power cord. Remove the power cord. Re-attach the ground screw and wire to the handy box. Cut your green ground wire in half and strip both sides. - Page 17 Tie All Ground & Bare Copper Wires Together Tie All Ground & Bare Copper Wires Together Whole House Fan Whole House Fan Red Wires Together Red Wires Together 14-3 Wire 14-3 Wire All Black Wires Together All Black Wires Together Common Wires Together Common Wires Together 1-888-QUIETCOOL...
- Page 18 7. Open up the handy box on the second motorhead. Unscrew the green ground wire and detach the green ground wire from the power cord. Remove the power cord. Reattach the green ground wire to the handy box. Cut your green ground wire in half and strip both sides. 8.
-
Page 19: Trident Pro Warranty
QC Manufacturing Inc. extends this warranty to the original purchaser of the following QuietCool Trident Pro Line Models --- QC TRI PRO-1.5, QC TRI PRO-2.5, QC TRI PRO-3.3, QC TRI PRO-4.8, QC TRI PRO-5.5, and QC TRI PRO-6.5 --- installed and used in a residence under normal conditions within the United States: Fifteen year coverage applies to the QuietCool motor fan assembly. - Page 20 QuietCool is Proudly Designed and Built in California Fan Serial Number Information Retain for your records. Serial number is required for warranty purposes. ® ADVANCED WHOLE HOUSE FANS 43352 Business Park Drive, Temecula, CA 92590 // PH 951.325.6340 // QUIETCOOLSYSTEMS.COM...
