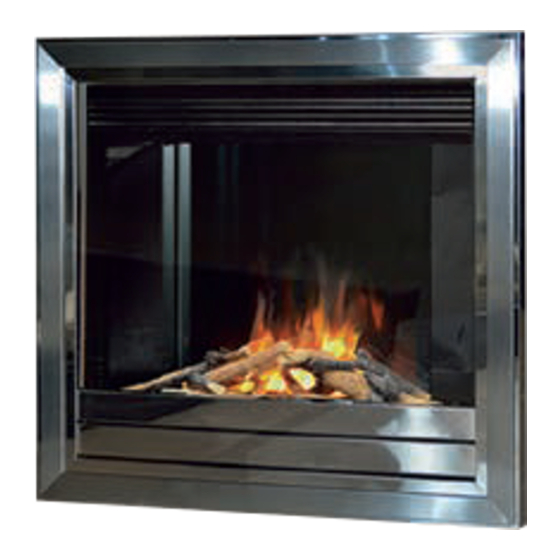

Ev4i, Ev4i4, Ev6i, Ev6i4, Ev8S &
Topaz Instruction Guide
Important Safety Information
Always read this manual first before attempting to install or use this fireplace. For your
safety, always comply with all warnings and safety Instructions contained in this manual
to prevent personal injury or property damage.
Please Note: This product is for well insulated spaces or occasional use.
English
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ev4i4 and is the answer not in the manual?

Questions and answers

Related Manuals for Evonicfires Ev4i4

Summary of Contents for Evonicfires Ev4i4

  • Page 1 Ev4i, Ev4i4, Ev6i, Ev6i4, Ev8S & Topaz Instruction Guide Important Safety Information Always read this manual first before attempting to install or use this fireplace. For your safety, always comply with all warnings and safety Instructions contained in this manual to prevent personal injury or property damage.

  • Page 2: Table Of Contents

    13. Warranty welcome to evonicfires evonicfires is an award-winning brand of CK Fires Ltd, situated just outside Stratford- upon-Avon, we manufacture a range of British built electric fires and are considered as one of the most technically advanced manufacturers in the world, with optional...

  • Page 3: Electrical Safety

    ELECTRICAL SAFETY: When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: ① Read all instructions before using this electric fireplace. ② This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
  • Page 4 ⑬ Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage to the heater. ⑭ To prevent a possible fire, do not block air intakes or exhaust in any manner.

  • Page 5: Important Instructions

    IMPORTANT INSTRUCTIONS: Please read these instructions before installation or use and keep this booklet handy for future reference. All Evonic fires products meet the requirements of the EC Directives. These directives have been met by compliance with the following standards: EN 55014-1:2006 + A2:2011 Electromagnetic compatibility.

  • Page 6: Electrical Safety

    General Warnings: Never leave children unsupervised with an unguarded heater. Never obstruct or cover the heater outlet. Never install or use this product where it may come in contact with water i.e. a bathroom or wet room. Never use aerosols or steam cleaners near this product. Never route the electric cable near the heater outlet.
  • Page 7 As the colours of the mains lead of this appliance may not match the coloured markings used to identify the terminals in a plug, please observe the following (Fig:1). • The green and yellow wire must be connected to the terminal in the plug which is marked with the letter E or Earth symbol.

  • Page 8: Installation Requirements

    INSTALLATION REQUIREMENTS: INSTALLATION REQUIREMENTS: INSET MODELS This product has been designed to be installed into a standard 420mm(W) x 570mm (H) x 80mm(D) If the product is to be installed into an open chimney or flue, it is important that the chimney flue is blocked off to prevent any up/down draughts and falling debris which could restrict the airflow to the product.

  • Page 9: Switch Identification

    Switch Identification The on/off switch to activate connection to your app or E-Touch is located at the front of the fire, in the gap between the front glass panel and the bottom edge of the Fig 1. frame. Fig 1. Your main power supply is attached to the IEC through the back of the...

  • Page 10: E-Touch & App Interface

    E-Touch & App Template The Appliance is operated using the E-Touch App Control. The App Control can be used on either OS or Android operating systems. To obtain the App please visit either the OS App Store Or Google Play and follow the on screen instructions.

  • Page 11: Glass Removal

    Glass Removal To install the fuel set (Logs, Pebbles, Coals) the below steps must be taken The front glass is held in place by two brackets, located at the top and bottom of the fire. Fig 1. Fig 1. To remove the front glass, start by identifying the key hole slots located in each bracket.

  • Page 12: Inset Wall Mounting

    Inset Wall Mounting To wall mount this appliance, please follow the subsequent instructions. Please refer to technical specification page for exact measurements, ensuring the space you wish to install the appliance fits correctly. This product has been designed to be installed into a plaster board, drywalled, or existing masonry chimney breast.

  • Page 13: Hole-In-Wall Installation

    Hole-in-wall Installation To Install the appliance inside an existing wall cavity, please follow the subsequent instructions. Please refer to technical specification page for exact measurements, ensuring the space you wish to install the appliance fits correctly. This product has been designed to be installed into a plaster board, dry walled, or existing masonry chimney breast.

  • Page 14: Setting Thermostat

    Setting the Thermostat Note: This only applies to MANUAL fires Ensure the fire is plugged in. Start by pressing the ‘light’ button on the left. This will activate your LED’s and bottom blower. For heat setting, ensure the thermostat knob is turned fully to the right (max temperature).

  • Page 15: Technical Specification

    INSET HEIGHT WIDTH DEPTH HEIGHT WIDTH DEPTH 590MM 480MM 145MM 550MM 382MM 75MM EV4i 620MM 480MM 145MM 550MM 382MM 75MM EV4i4 585MM 595MM 145MM 565MM 570MM 145MM EV6i 615MM 595MM 145MM 565MM 570MM 145MM EV6i4 605MM 645MM 135MM 550MM 382MM...

  • Page 16: Problem Solving Chart

    Troubleshooting Flow Chart: Problem Possible Cause Solution Ribbons are statically connected to Spray some anti-static spray beneath glass. the tray. Check the correct aperture has been Installation airflow restricted. adhered to when installing— Recommended clearance is 100mm. Flames not working correctly Blower clogged.
  • Page 17 Problem Possible Cause Solution Fan unbalanced. Adjust fan to stop catching on the case. If problem persists replacement fan unit maybe required. Adjust fan to stop catching on the case Fan catching on housing. Noisy Heater Fan clogged. Fan requires cleaning out. If problem persists a replacement fan may be required.
  • Page 18 Problem Possible Cause Solution Double check switches are turned to Rocker switch has not been turned to the ‘ON’ position. the ‘ON’ position. Remote needs pairing. See separate Remote/App not paired. pairing instructions for guide. Fire not turning on. Replace fuse. Fuse blown.
  • Page 19 Problem Possible Cause Solution Timer has been accidentally set. Double check timer settings. Heater coming on randomly Thermostat faulty. Replace PCB. LED dropped down. LED needs to be re-stuck into place. LED streaking Log positioning. Change log positioning to hide any direct view of LED strip.

  • Page 20: Warranty

    This warranty is in addition to and does not affect the purchasers statutory rights of consumers. Registering product: To register a product please visit: www.evonicfires.co.uk and complete the fields required under the Register a Product Section. By registering your appliance, an extra 12 months of cover will be added to your warranty.
