Suite Instruction Guide
Important Safety Information
Always read this manual first before attempting to install or use this
fireplace. For your safety, always comply with all warnings and safety
Instructions contained in this manual to prevent personal injury or property
damage.
Please Note: This product is for well insulated spaces or
occasional use.
Esuites-190108
English
Advertisement
Table of Contents
Related Manuals for Evonicfires WESTFIELD
Summary of Contents for Evonicfires WESTFIELD

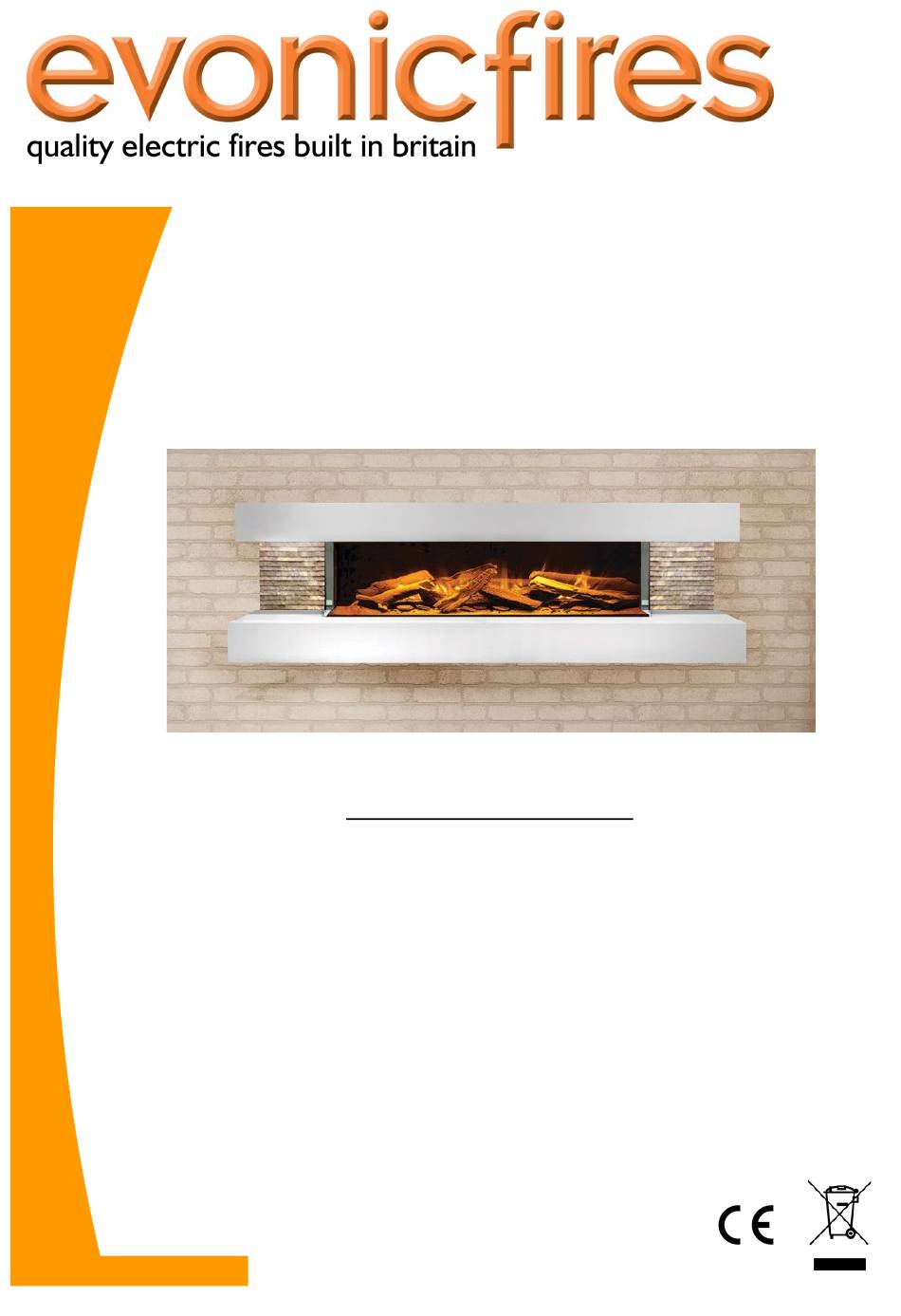

- Page 1 Suite Instruction Guide Important Safety Information Always read this manual first before attempting to install or use this fireplace. For your safety, always comply with all warnings and safety Instructions contained in this manual to prevent personal injury or property damage.
-
Page 2: Table Of Contents
11. Warranty welcome to evonicfires evonicfires is an award-winning brand of CK Fires Ltd, situated just outside Stratford- upon-Avon, we manufacture a range of British built electric fires and are considered as one of the most technically advanced manufacturers in the world, with optional... -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS: When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: ① Read all instructions before using this electric fireplace. ② This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. - Page 4 ⑬ Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage to the heater. ⑭ To prevent a possible fire, do not block air intakes or exhaust in any manner.
-
Page 5: Installation Requirements
INSTALLATION REQUIREMENTS: Review and consider all of the following conditions before installation: This appliance must only be connected to a 230/240 Volts AC 50Hz supply. Before connecting the fire, check that the supply voltage is the same as stated on the fire. This appliance must only be used on a AC supply, fuse rating 13Amp. -
Page 6: Installation Method
Installation Method: This product has been designed to be installed onto a plaster board, drywalled, or existing masonry chimney breast. Please seek advice from a professional, with reference to the structural integrity of the installation site. PLEASE NOTE: The screws and wall plugs provided are only suitable for a solid wall fixing / when installing onto a hollow-stud wall it is recommended that heavy duty wall anchors or equivalent are used. - Page 7 Once the Wall mount Bracket is securely in position, Lift and hook the product onto the wall bracket, slotting the wall bracket into the x3 slots in the rear of the product (See Fig:4) ensuring to keep the product level. Once the product is secured to the wall, Connect the power supply to the product—...
-
Page 8: E-Touch & App Interface
E-Touch & App Interface: The Appliance is operated using the E-Touch App Control. The App Control can be used on either OS or Android operating systems. To obtain the App please visit either the OS App Store Or Google Play and follow the on screen instructions. Screen shot taken from Apple App Store. -
Page 9: Product Operation
Product Operation: The appliance is operated by the e-touch App. The main standby power switch to the suite product is located to the right of the heater outlet, and is marked with a light bulb image (Fig 1). To activate the product, this switch must be switch to the “ON”... -
Page 10: Glass Removal
Glass Removal: 1. Remove 2 screws located in the bottom glass retaining bar. 2. Remove the bottom glass retaining bar. - Page 11 3. Remove the glass by pulling the second retaining bar away from the body of the fire. Ensure that the glass is supported at all times. A suction cup has been provided to aid with this step. Please note: The suction cup is provided for support only, not to hold the full weight of the glass.
-
Page 12: Log Set Guidance
Log-Set Guidance: LENGTH 260MM 370MM 230MM 185MM 190MM 390MM Log Set Midori Log Set Please Note: The images shown are suggested Log layouts, the log sets can be arranged to personal preference. - Page 13 Compton 2 suggested log layout Compton 1000 suggested log layout Please Note: The images shown are suggested Log layouts, the log sets can be arranged to personal preference.
-
Page 14: Technical Specification
ALTAIR 1087MM 1135MM 255MM COMPTON1000 1500MM 520MM 365MM COMPTON2 1120MM 520MM 365MM EMPIRE2 1120MM 520MM 280MM CASSINI 1297MM 1167MM 406MM CORBIERE 1370MM 1095MM 355MM MIDORI 530MM 620MM 320MM KIBO 1258MM 889MM 241MM BROADWAY 1500MM 520MM 365MM WESTFIELD 860MM 625MM 280MM... -
Page 15: Problem Solving
Noise from the heater when in use: The sound of rushing air is normal. • Reporting a fault: If a product is encountering a fault with the operation and a service engineer is required, please visit : www.evonicfires.co.uk and complete the fields required under the Report a Fault section. -
Page 16: Warranty
This warranty is in addition to and does not affect the purchasers statutory rights of consumers. Registering product: To register a product please visit: www.evonicfires.co.uk and complete the fields required under the Register a Product Section. By registering your appliance, an extra 12...
