CHAPTER 4 Mounting the Device
7.
Place the bracket on a flat surface, and then with two hands, hold the device above the bracket
so that its bottom panel faces the bracket and its rear panel is on the same side as the
bracket's grounding-screw hole. Gently lower the device into the bracket until it snaps into
place:
Figure 4-8:
Figure 4-9:
8.
Using a Phillips-head screwdriver, attach the bracket to the rear panel, using the grounding-lug
screw (which you removed in previously in Step 5):
Mediant 500 Gateway & E-SBC | Hardware Installation Manual

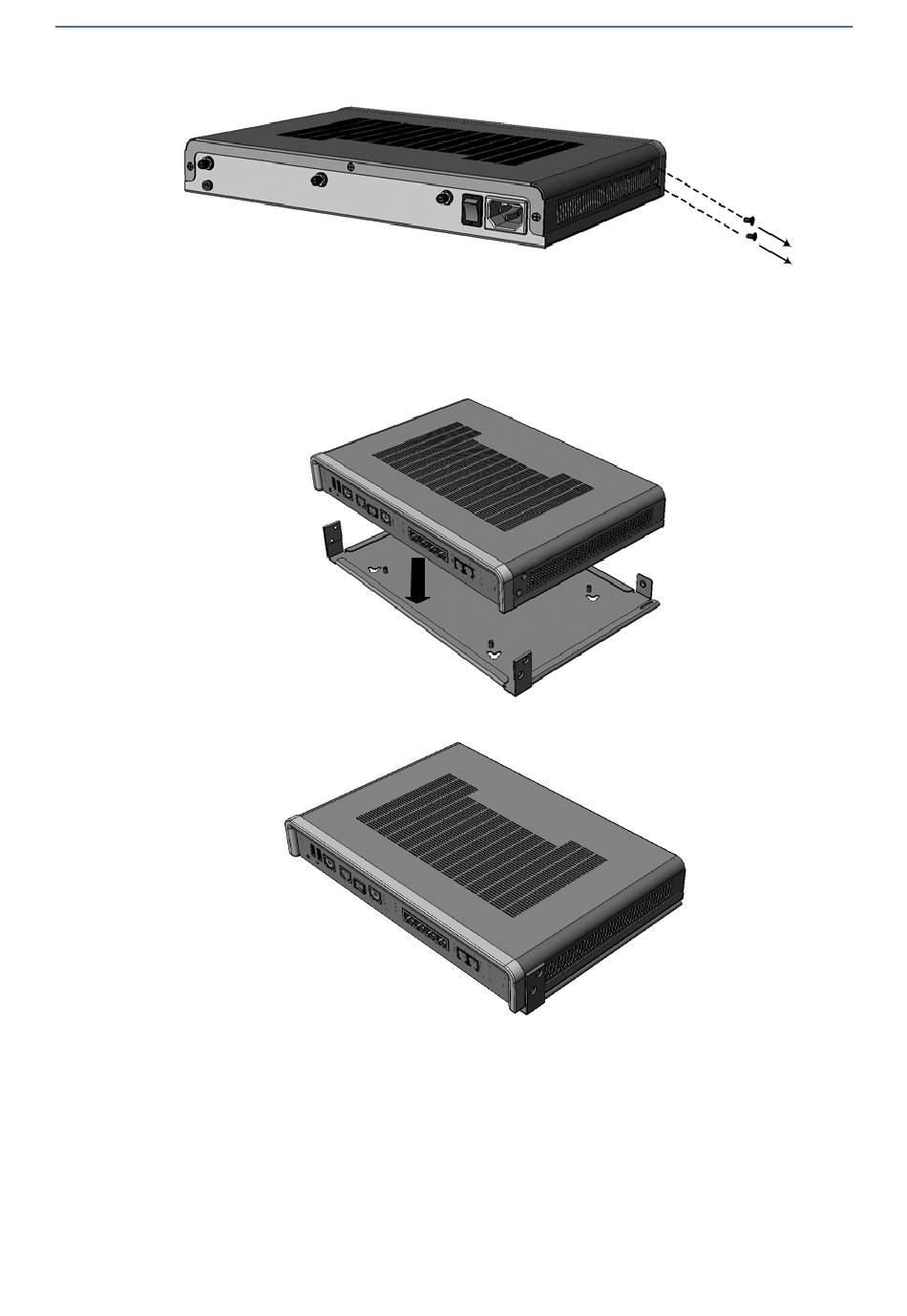

Figure 4-7:
Removing Side-Panel Screws
Lowering Device into Wall-Mounting Bracket
Device Inserted into Wall-Mounting Bracket
- 9 -
