CHAPTER 4 Mounting the Device
●

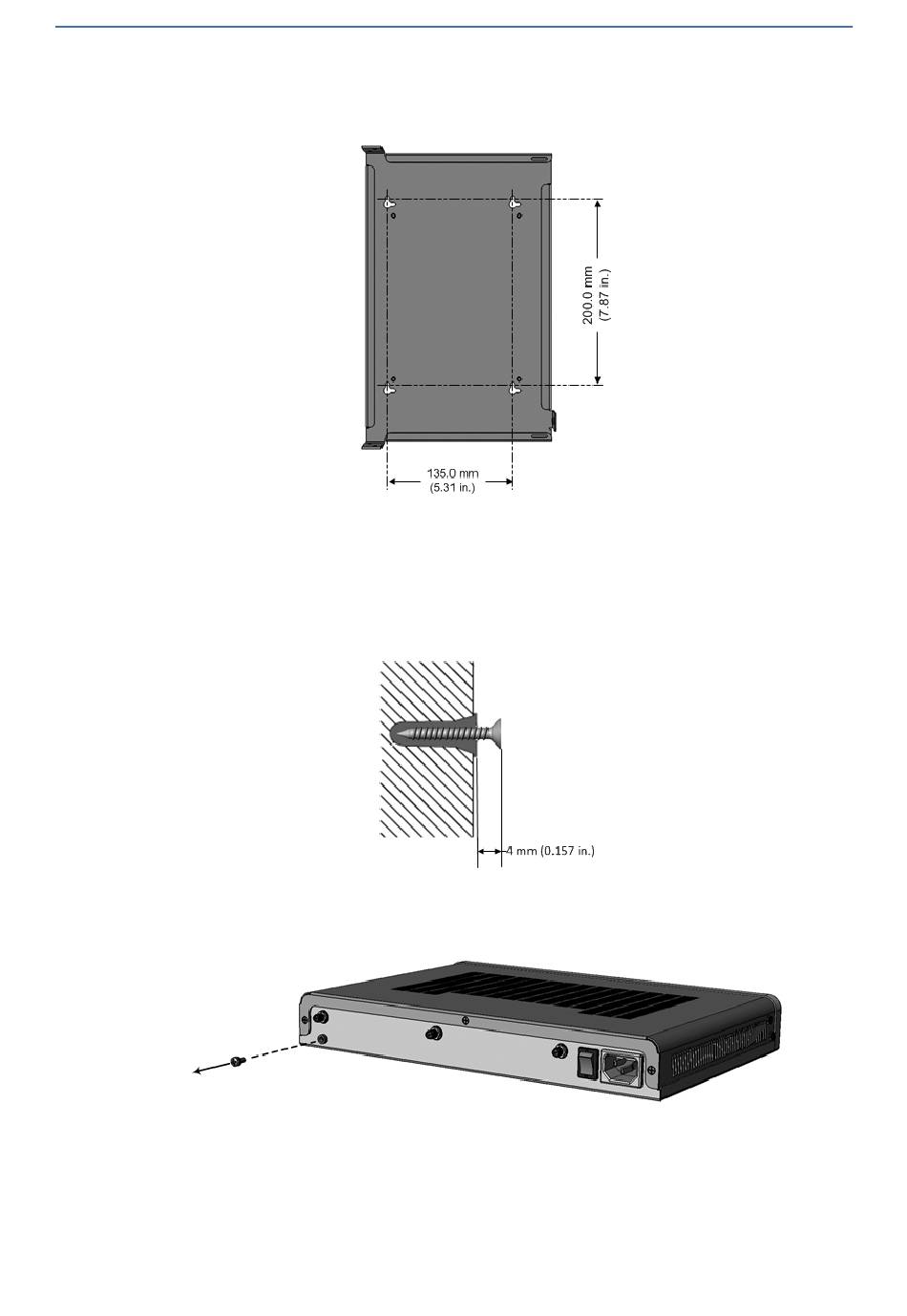

Vertical position: The horizontal distance between the keyholes is 135 mm (5.31 in.) and
the vertical distance is 200 mm (7.87 in.):
Figure 4-4:
2.
Drill holes in the wall where you marked the keyholes.
3.
Insert wall anchors of appropriate size into each drilled hole.
4.
Thread screws (not supplied) into each of the wall anchors. The recommended screw type is
DIN 7982 3.5x25 Phillips flat head. Make sure that the heads of the screws extend sufficiently
(about 4 mm or 0.157 in.) from the wall to allow you to hang the bracket's keyholes:
Figure 4-5:
5.
Using a Phillips-head screwdriver, remove the grounding-lug screw located on the rear panel
(keep the screw in a safe place for later use):
6.
Using a Phillips-head screwdriver, remove the two screws located on the left- and right-side
panels (keep the screws in a safe place for later use):
Mediant 500 Gateway & E-SBC | Hardware Installation Manual
Keyhole Dimensions for Vertical Wall-Mounting
Protruded Screw Distance from Wall Surface
Figure 4-6:
Removing Ground Screw
- 8 -
