CHAPTER 4 Mounting the Device

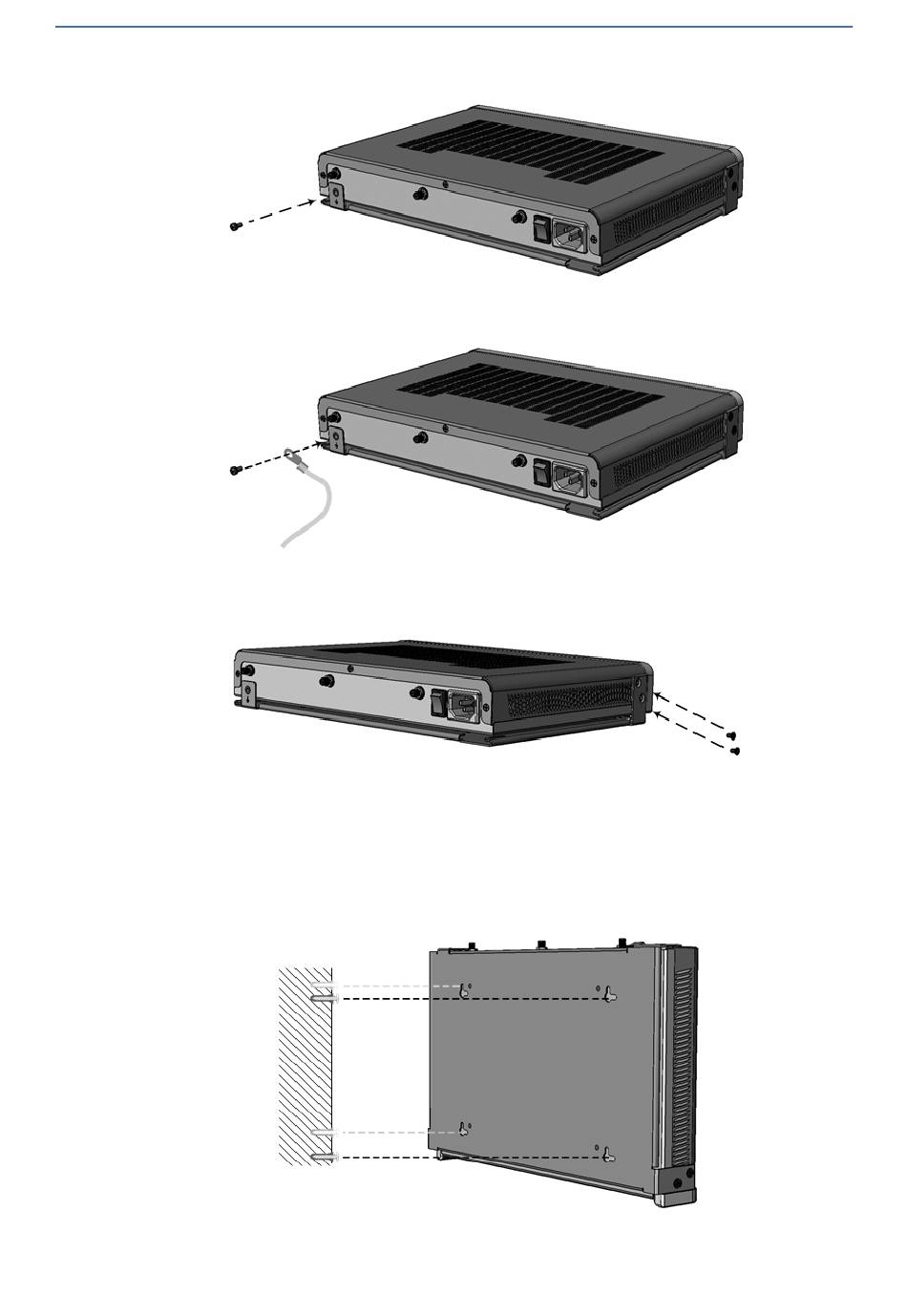

Figure 4-10: Attaching Bracket to Device using Grounding Screw
If you are grounding the device, attach the grounding lug at the same time:
Figure 4-11: Attaching Bracket to Device using Ground Screw with Grounding Lug
9.
Using a Phillips-head screwdriver, attach the bracket to the left- and right-side panels, using
two screws for each side (which you removed previously in Step 6):
Figure 4-12: Attaching Bracket to Device using Side-Panel Screws
10.
With two hands, hold the device (attached to the bracket) so that the bracket's keyholes are
facing the screw heads in the wall and that the device is orientated according to the desired
hanging position (horizontal or vertical). Gently hang the device onto the screw heads, using
the bracket's keyholes:
Figure 4-13: Hanging Device on Screw Heads for Horizontal Orientation
Mediant 500 Gateway & E-SBC | Hardware Installation Manual
- 10 -
