CHAPTER 4 Mounting the Device
4
Mounting the Device
The device can be mounted in one of the following ways:
■
Placed on a desktop – see
■
Installed in a standard 19-inch rack – see
Do not place any equipment directly on top of the device or adjacent to its sides (at least
13-cm separation). In addition, if you are mounting the device in a 19-inch rack, ensure
that at least a 3U separation is maintained between the device and other mounted
devices or equipment.
Desktop Mounting
The device can be placed on a desktop when its four anti-slide bumpers (supplied) are attached to
the underside of the device.
➢
To attach the anti-slide rubber bumpers to the device:
1.
Flip the device over so that its underside faces up.
2.
Locate the four anti-slide grooves on the underside - one in each corner.
3.
Peel off the adhesive, anti-slide rubber feet and stick one in each anti-slide groove.
●
1 = Mounted anti-slide rubber feet
●
2 = Anti-slide groove
4.
Flip the device over again so that it rests on the rubber feet and place it in the required position
on a desktop.
Desktop Mounting

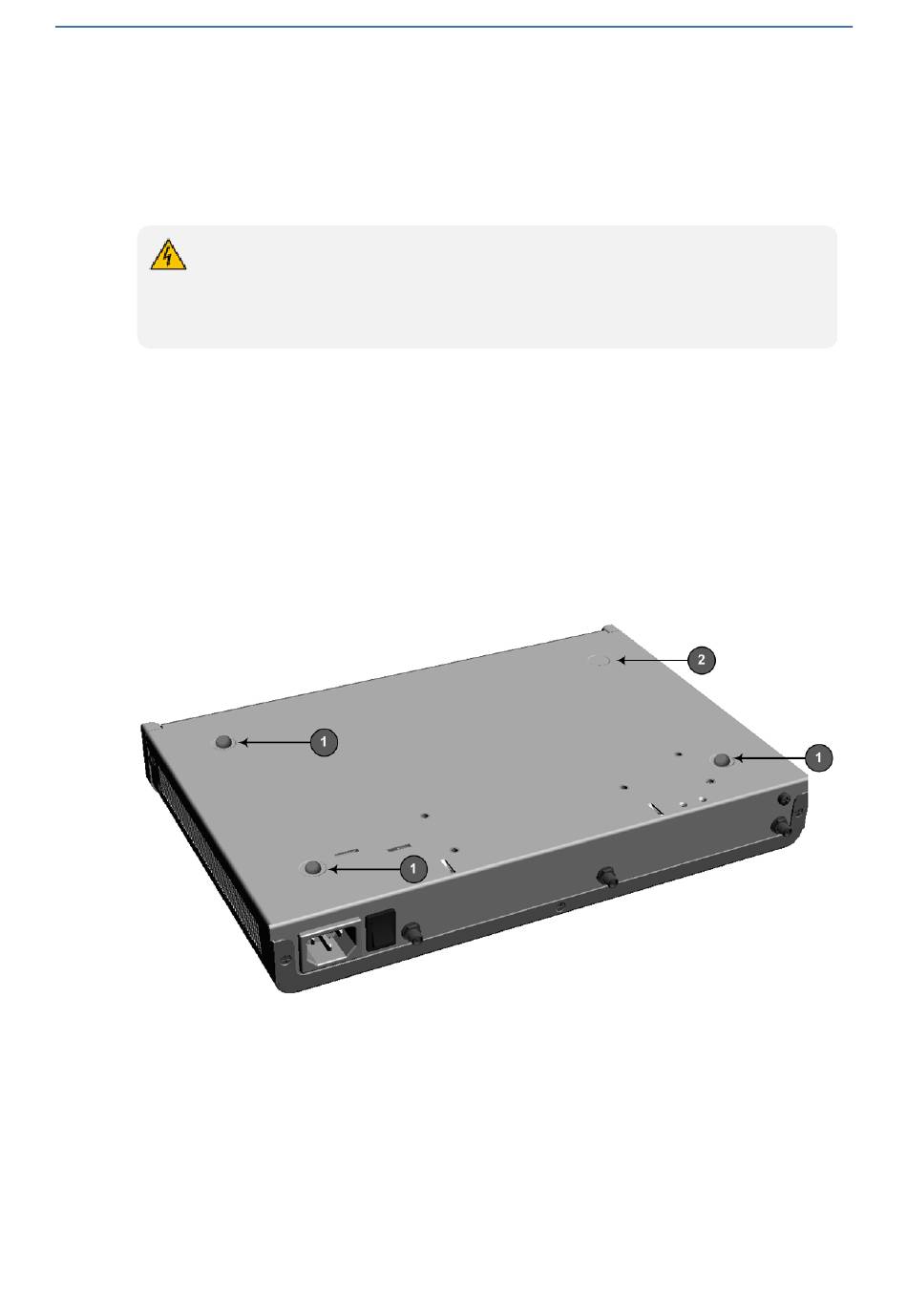

Figure 4-1:
Location for Applying Rubber Feet
Mediant 500 Gateway & E-SBC | Hardware Installation Manual
below
Wall Mounting
on the next page
- 6 -
