CHAPTER 5 Cabling the Device
2.
Connect the other end of the cable providing the 9-pin DB connector to the COM RS-232
communication port on your computer.
Connecting a USB Storage Device
The device supports USB storage capabilities, using an external USB hard drive or flash disk (disk
on key) connected to the device's USB port. The storage capabilities are configured through CLI
and include the following:
■
Saving network captures to the USB
■
Updating the device's firmware from the USB
■
Updating the device's configuration from the USB
■
Saving the current configuration to the USB
➢
To connect the USB storage device:
■
Connect the USB storage device to one of the USB ports located on the front panel.
Only a single USB storage (formatted to FAT/FAT32) operation is supported at any
given time.

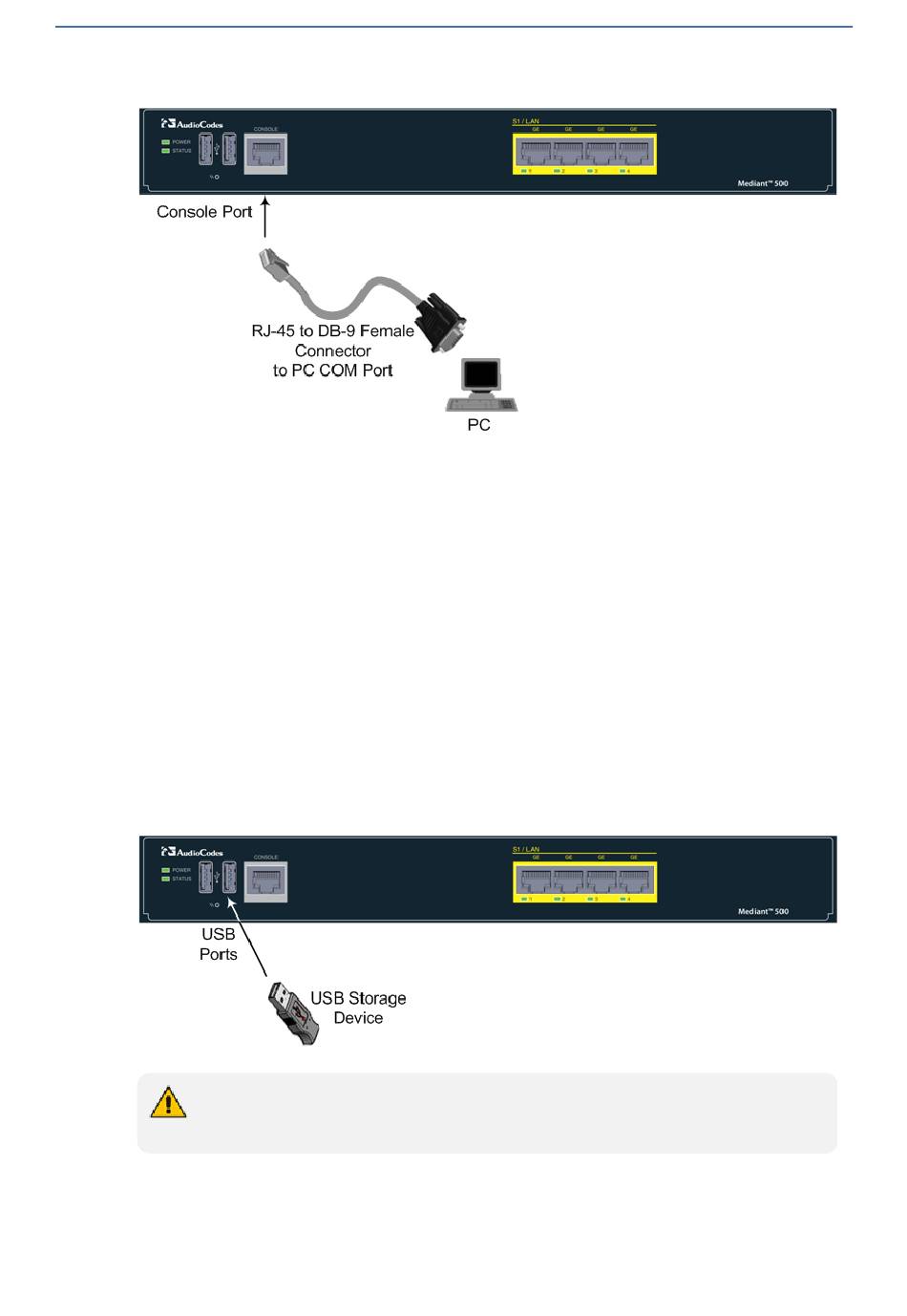

Figure 5-6:
Cabling Serial Port
Figure 5-7:
Connecting a USB Storage Device
Mediant 500 Gateway & E-SBC | Hardware Installation Manual
- 17 -
