CHAPTER 5 Cabling the Device

Connecting to the Power Supply

The device receives power from a standard alternating current (AC) electrical outlet. The
connection is made using the supplied AC power cord.
Physical Specification
Input Voltage
AC Input Frequency
AC Input Current
Max. Power Consumption
●
●
ご注 意
本 製 品 に添 付 の電 源 ケーブルは、 Mediant 500 E-SBC に専 用 設 計 さ れているため、 汎
用 性 があり ません. 本 電 源 ケーブルを他 の機 器 に使 用 さ れないよう 、 ご注 意 く ださ い.
➢
To connect the device to the power supply:
1. Connect the line socket of the AC power cord (supplied) to the device's AC power socket
(labeled 100-240V~50-60 Hz 0.8A), located on the rear panel.
2. Connect the plug at the other end of the AC power cord to a standard electrical outlet.
3. Press the power switch to on (I) position so that the device receives power; the POWER LED
on the front panel is lit green (for more information, see
Table 5-3: Power Specifications
The device must be connected to a socket-outlet providing a protective earthing
connection.
Use only the AC power cord that is supplied with the device.

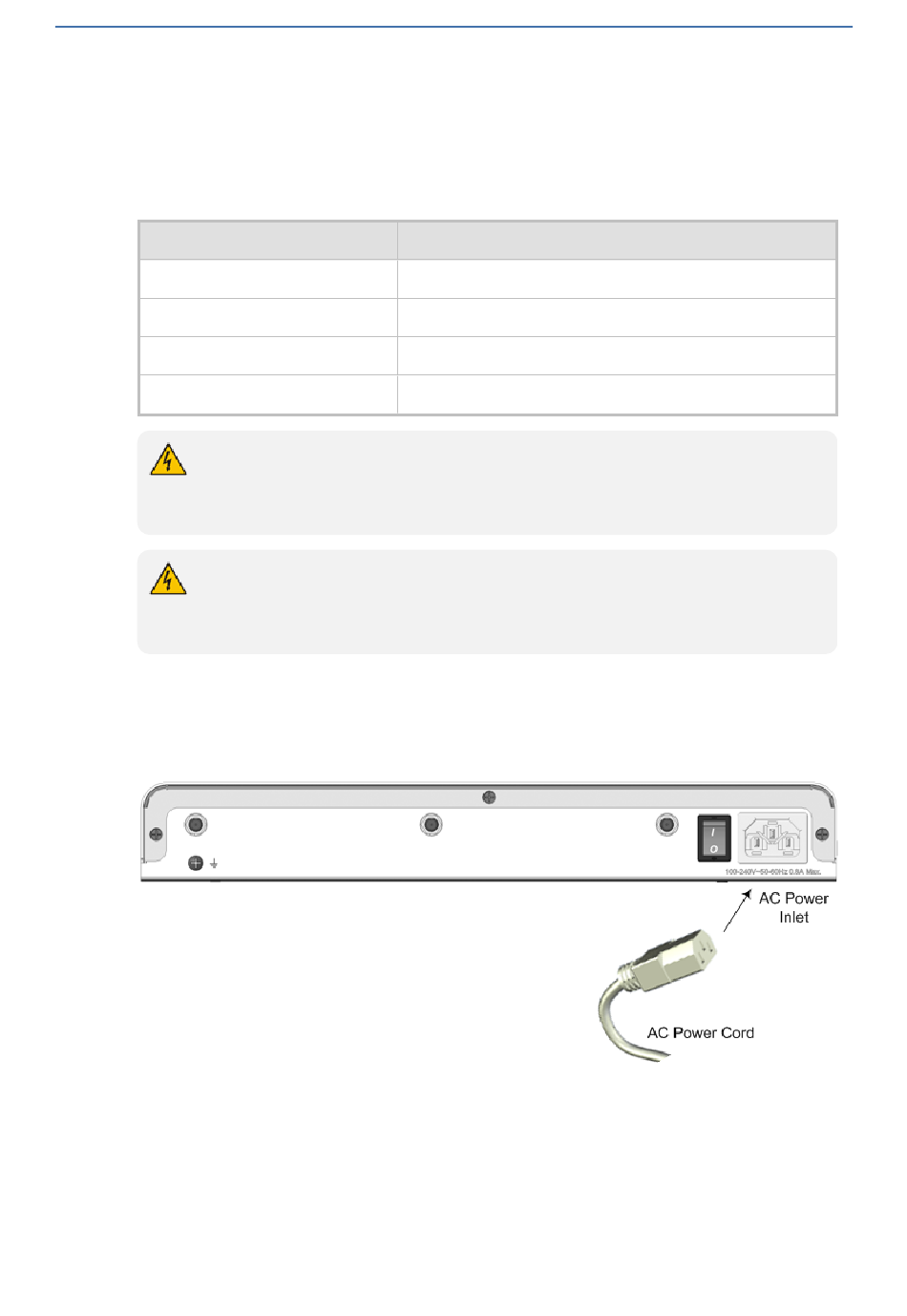

Figure 5-8: Connecting to the Power Supply
Mediant 500 Gateway & E-SBC | Hardware Installation Manual
Single universal AC power supply 100 to 240V
50 to 60 Hz
0.8A
20W
Power LED
- 18 -
Value
on page 5).
