Operators Familiarization .
CH1 +PEAK
Name of Record
SETUP: XX
Status of Record
SELECT SETUP
WITH
-+I
CONTROL
sv ::::
2V :::: .1V
RECALL NEXT
RECALL
.
'
STORE
DELETE
INSERT. NEXT
ALTER LABELS
.1s

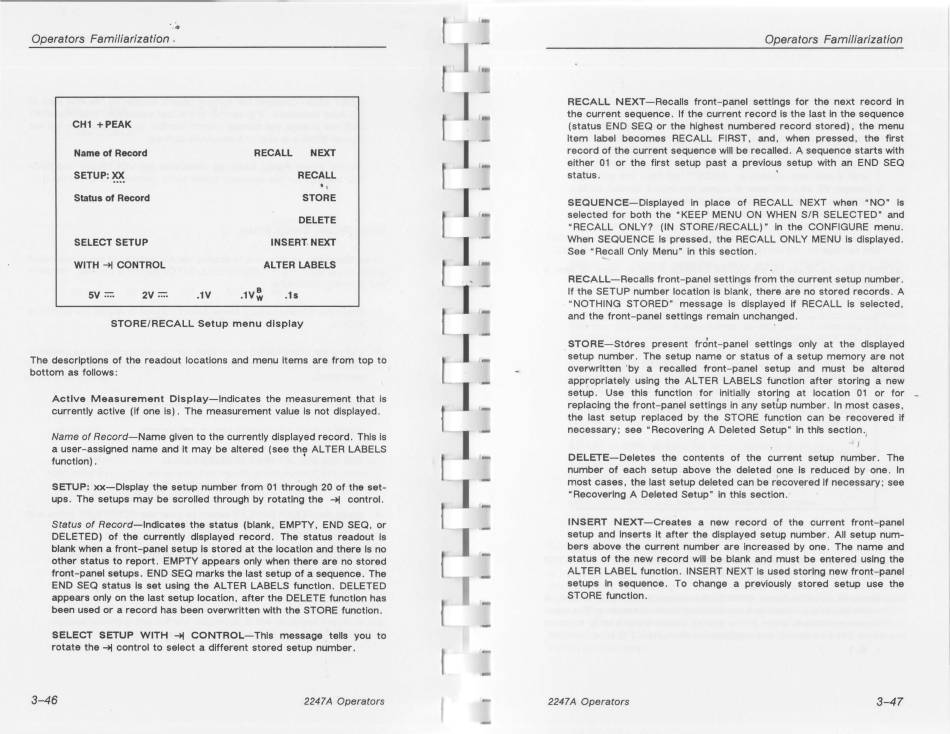

STORE/RECALL Setup menu display
The descriptions of the readout locations and menu items are from top to
bottom as follows:
Active Measurement Display-Indicates the measurement that is
currently active (if one is). The measurement value is not displayed.
Name of Record-Name given to the currently displayed record. This Is
a user-assigned name and It may be altered (see the ALTER LABELS
function). '
SETUP: xx-Display the setup number from 01 through 20 of the set-
ups. The setups may be scrolled through by rotating the -+I control .
Status of Record-Indicates the status (blank, EMPTY, END SEQ, or
DELETED) of the currently displayed record. The status readout is
blank when a front-panel setup Is stored at the location and there is no
other status to report. EMPTY appears only when there are no stored
front-panel setups. END SEQ marks the last setup of a sequence. The
END SEQ status Is set using the ALTER LABELS function. DELETED
appears only on the last setup location, after the DELETE function has
been used or a record has been overwritten with the STORE function.
SELECT SETUP WITH -+I CONTROL-This message tells you to
rotate the -+I control to select a different stored setup number.
