Introduction
PRODUCT OVERVIEW
Description
The 2247 A Is a 100 MHz, four-channel, dual-sw,eep, portable oscilloscope
for general-purpose use ( Figure 1-1). A microprocessor-based operating
system controls most of the functions In the Instrument, including a fully
integrated menu-driven voltage and time measurement system with
Smart Cursors®. A counter /timer (CIT) is Integrated into the trigger sys-
tem to provide many automated counting and timing measurements with
high accuracy. Other features Include single-button automatic front-panel
setup and a menu-driven store/recall setup function. A menu-driven
service moae provides for configuring of ~ertain menu and readout
displays, internal calibration, and servicing diagnostics.
6373-01

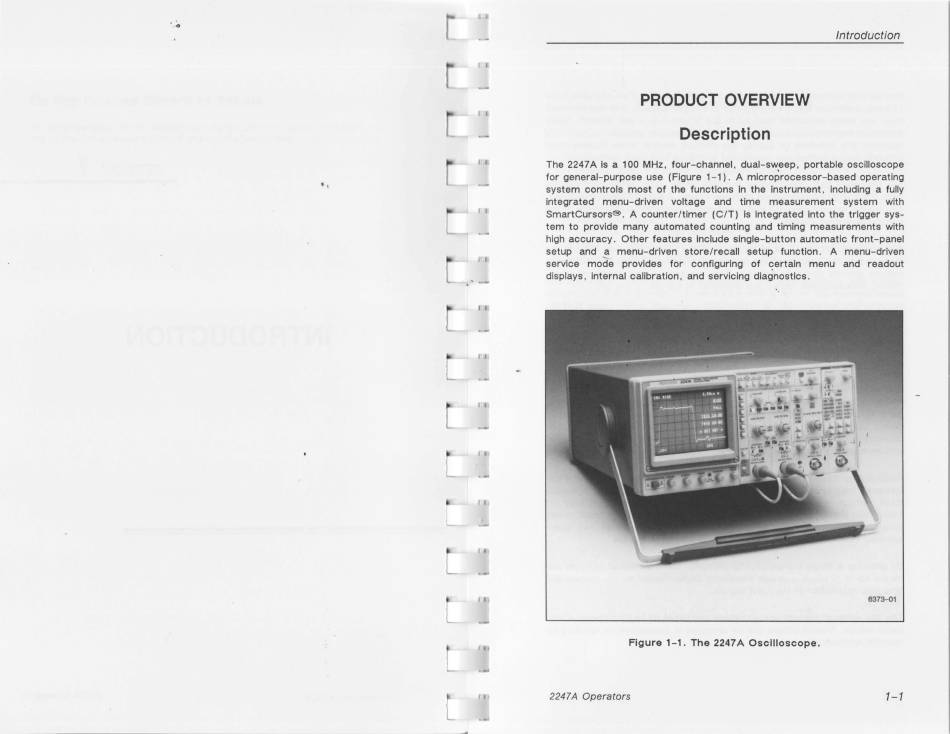

Figure 1-1. The 2247 A Oscllloscope.
2247 A Operators
1-1
