Store/Recall Setup Menu - Tektronix 2247A Operator's Manual

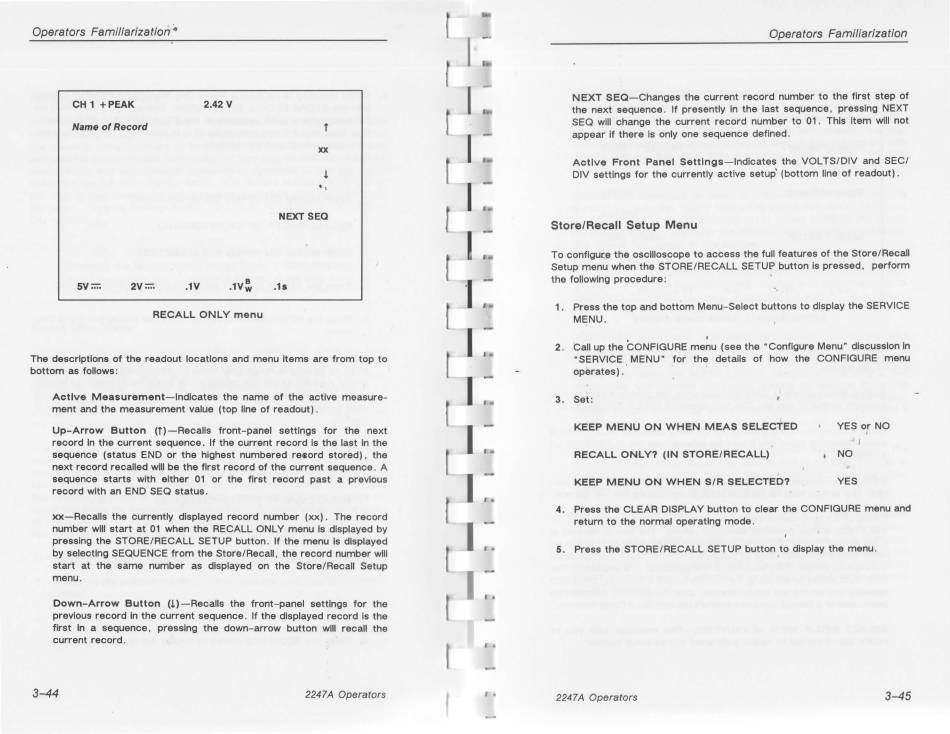

Operators Familiarization'°
CH 1 +PEAK 2.42V
Name of Record f
xx
.
'
NEXT SEQ
sv=
.1V
.1s
RECALL ONLY menu
The descriptions of the readout locatlons and menu items are from top to
bottom as follows:
Active Measurement-Indicates the name of the active measure-
ment and the measurement value (top line of readout).
Up-Arrow Button (f)-Recalls front-panel settings for the next
record in the current sequence. If the current record is the last in the
sequence (status END or the highest numbered rectord stored), the
next record recalled will be the first record of the current sequence. A
sequence starts with either 01 or the first record past a previous
record with an END SEQ status.
xx-Recalls the currently displayed record number (xx). The record
number will start at 01 when the RECALL ONLY menu is displayed by
pressing the STORE/RECALL SETUP button. If the menu Is displayed
by selecting SEQUENCE from the Store/Recall, the record number will
start at the same number as displayed on the Store/Recall Setup
menu.
Down-Arrow Button (l)-Recalls the front-panel settings for the
previous record In the current sequence. If the displayed record Is the
first In a sequence, pressing the down-arrow button will recall the
current record .
3-44
2247 A Operators
I
I
I
Operators Familiarization
NEXT SEQ-Changes the current record number to the first step of
the next sequence. If presently In the last sequence, pressing NEXT
SEQ will change the current record number to 01. This Item will not
appear if there is only one sequence defined.
Active Front Panel Settings-Indicates the VOL TS/DIV and SEC/
DIV settings for the currently active setup' (bottom line of readout) .
Store/Recall Setup Menu
To configure the oscilloscope to access the full features of the Store/Recall
Setup menu when the STORE/RECALL SETUP button Is pressed, perform
the following procedure:
1. Press the top and bottom Menu-Select buttons to display the SERVICE
MENU.
2. Call up the CONFIGURE menu (see the "Configure Menu" discussion In
"SERVICE , MENU" for the details of how the CONFIGURE menu
operates).
3. Set:
KEEP MENU ON WHEN MEAS SELECTED
RECALL ONLY? (IN STORE/RECALL)
I
KEEP MENU ON WHEN S/R SELECTED?
YES or NO
- J
NO
YES
I
4. Press the CLEAR DISPLAY button to clear the CONFIGURE menu and
return to the normal operating mode.
5. Press the STORE/RECALL SETUP button ,to display the menu.
2247 A Operators
3-45
