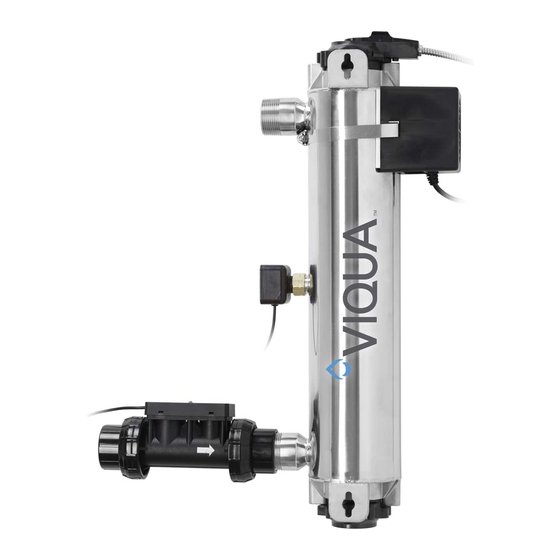

Viqua UVMAX H Instruction Sheet

Instruction Sheet
VIQUA UVMAX Lamp and Quartz Sleeve Replacement
Models: H, K, H+, K+, PRO10, PRO20, PRO30 and PRO50
Overview
UV Lamp replacement: The amount of UV light created by the UV lamp decreases over time, requiring that the UV lamp be
replaced. The system will automatically notify you when it is time to replace the UV lamp.
Quartz Sleeve replacement/maintenance: Minerals in the water slowly form a coating on the quartz sleeve. This coating must be
removed because it reduces the amount of UV light reaching the water, thereby reducing disinfection performance. If the quartz
sleeve can not be cleaned, it must be replaced.
Section 1 Safety Information
Please read this entire instruction sheet before operating this equipment. Pay attention to all danger, warning, and caution
statements in this instruction sheet. Failure to do so could result in serious personal injury or damage to the equipment.
Make sure that the protection provided by this equipment is not impaired. Do not use or install this equipment in any manner
other than that specified in the instruction sheet.
1.1 Safety Precautions
Failure to follow these instructions will result in serious injury or death.
Shock Hazard - Stored Energy
• Disconnect power to system before performing any maintenance or repair.
• There may be more than one source of power. Only connect to a GFCI.
• Protective ground
• DO NOT touch with wet hands.
Pressurized Device - Impalement Hazard
• NEVER perform any physical inspection, repair or maintenance on UV chamber unless UV chamber has been isolated and depressurized.
• NEVER service UV lamps, quartz sleeves or associated hardware until depressurization of UV chamber has been confirmed.
• DO NOT store any combustible or flammable material close to the system.
D A N G E R
602962_RevR
