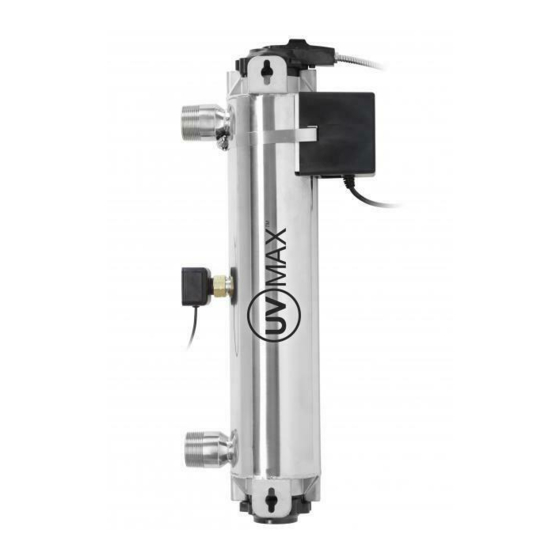

Viqua UVMAX G Replacement

Lamp and Sleeve Replacement
Always shut-off water flow and release
water pressure before servicing.
Electrical hazard. Be sure to unplug power
supply. Keep all electrical connections dry
and off the ground. Do not touch plug with
wet hands.
Potential
Hazard
UV Exposure
Electrical Shock
Impalement
Hot chamber
Cut or ingestion
Scald from water
Fire
Hg Exposure
Water leak
VIQUA - a Trojan Technologies Company 425 Clair Road West, Guelph ON, Canada N1L 1R1
1 800 265 7246 (North America), 519 763 1032 www.viqua.com info@viqua.com
Safety Measures
Never illuminate UV Lamp outside of the UV Chamber.
Never look directly at illuminated UV Lamp, even when using protective gear.
Always use protective gear, including gloves and UV safety glasses.
If accidental exposure occurs, immediately cool affected area and consult physician.
Disconnect power to system before performing any maintenance or repair.
There may be more than one source of power.
Never perform any physical inspection, repair or maintenance on UV Chamber unless UV
chamber has been isolated and depressurized.
Never service UV Lamps, Sleeves or associated hardware until depressurization of UV
chamber has been confirmed.
Allow UV Lamps, UV Chamber to cool for a minimum of 10 minutes before handling.
Ensure the quartz sleeve or lamp is not broken, cracked or damaged in any way when
handling equipment.
When there is no water flow, the water in the chamber will become hot. To prevent
scalding, allow the system to cool before draining the system.
Do not store any combustible or flammable material close to the system.
The UV lamp contains mercury. If the lamp breaks, then avoid inhalation or ingestion of
the debris and avoid exposure to eyes and skin. Never use a vacuum cleaner to clean
up a broken lamp as this may scatter the spilled mercury. Obey local regulations and
guidelines for the removal and disposal of mercury waste.
Use proper plumbing materials to avoid potential material degradation from UV exposure.
G, H, J & K
G Plus, H Plus, J Plus & K Plus
Pro10, Pro20, Pro30 & Pro50
Never look directly at the lamp when it is
operating.
Read directions before servicing.
The 602854, 602855 and 602856 are Tested and Certified
by NSF International against NSF/ANSI Standard 55
the UVMAX Pro10, UVMAX Pro20 and UVMAX Pro30,
respectively, for disinfection performance, Class A.
COMPONENT
602962-J
