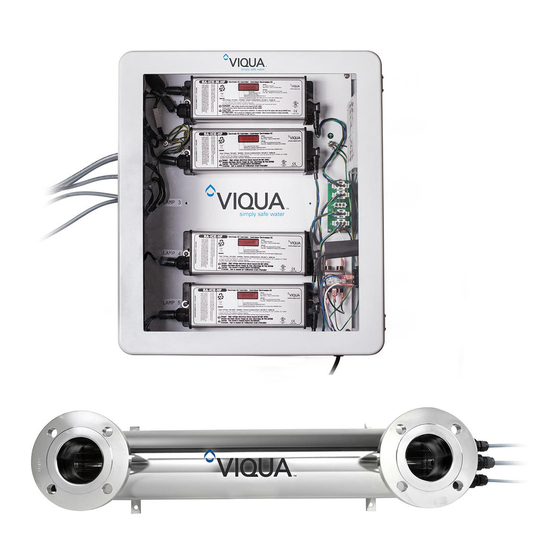

Owner's Manual
Powered by
Models:
SHF-140, SHFM-140,
SHF-180, SHFM-180
SHF-290, SHFM-290
520189-R_RevL
Advertisement
Table of Contents
Related Manuals for Viqua SHF-140
Summary of Contents for Viqua SHF-140
- Page 1 Owner’s Manual Models: SHF-140, SHFM-140, SHF-180, SHFM-180 SHF-290, SHFM-290 Powered by 425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1 t. (+1) 519.763.1032 • tf. (+1).800.265.7246 (US and Canada only) t. (+31) 73 747 0144 (Europe only) • f. (+1) 519.763.5069 e-mail: info@viqua.com...
- Page 2 • VIQUA replacement lamps undergo rigorous performance testing and strict quality control processes to ensure that the safety and performance certifications of the original equipment are not compromised. So, you can see that it's simply not worth the risk! Insist on genuine VIQUA replacement lamps.
-
Page 3: Safety Information
Safety Information Section 1 Safety Information These are the original instructions. Please read this entire manual before operating this equipment. Pay attention to all danger, warning, and caution statements in this manual. Failure to do so could result in serious personal injury or damage to the equipment. -
Page 4: Water Chemistry
Safety Information WA R N I N G • During extended periods of no water flow, the water in your chamber can become very hot (Approx. 60 °C) and potentially lead to scalding. It is recommended to run your water until this hot water has been purged from your chamber. Do not allow water to contact your skin during this time. To eliminate this condition, a temperature management valve can be installed at the outlet of your UV system. -
Page 5: General Information
Used on all Models 260227-R SHFM-140, SHFM-140/2, SHFM-180, SHFM-180/2 Lamp Harness 270278-R SHFM-290, SHFM-290/2 S740RL-4C SHF-140, SHF-140/2, SHFM-140, SHFM-140/2 Hard glass, coated CIRCLINE-HO UV lamps for long, consistent life (9000 SHF-180, SHF-180/2, SHFM-180, SHFM-180/2; SHF-290, SHF290/2, SHFM-290, S950RL-4C hours) SHFM-290/2... - Page 6 Installation of UV Disinfection System Section 3 Installation of UV Disinfection System C A U T I O N Electronic controller must be connected to a Ground Fault Protected Circuit (GFCI) receptacle and the lamp connector ground wire must be connected to the stainless steel chamber.
-
Page 7: Disinfection Procedure
Installation of UV Disinfection System 3. Position a lifting strap around each of the UV Chamber mounting brackets (between the flange and the bracket). Center the lifting straps around the UV Chamber. Bring the two lifting straps above the UV Chamber and connect as required to a crane. -
Page 8: Maintenance
Maintenance Section 4 Maintenance WA R N I N G • Always disconnect power before performing any work on the disinfection system. • Always shut-off water flow and release water pressure before servicing. • Regularly inspect your disinfection system to ensure that the power indicators are on and no alarms are present. •... - Page 9 Maintenance LAMP 1 LAMP 2 LAMP 3 LAMP 4 • Hold down the timer reset button • Slide the lamp connector up to the and reapply power to the controller sleeve nut. until you see , then release • Push down on the retaining clip timer reset button.
-
Page 10: Operation
Operation 4.3 Cleaning and Replacing UV Sensor (SHFM models only) WA R N I N G The UV sensor is very delicate instrument. Extreme care is required when handling and cleaning. The sensor window itself is constructed from quartz which is extremely fragile, be careful you do not chip or break this quartz window. Manufacturer’s warranty does not cover damage due to neglect or misuse. - Page 11 LAMP 4 LAMP 3 LAMP 5 LAMP 4 SHF-140/180 series control panel SHF-290 series control panel 5.1.1 Lamp Life Remaining (days) The controller tracks the number of days of operation of the lamp and the controller. The default screen will display the total lamp life remaining (in days).
- Page 12 The Hi-Flo Monitored series incorporate a UV sensor which detects the discrete 254 nm wavelength of the UV lamp. This information is relayed to the VIQUA controller and is the default display shown in “% UV output”. The system will display the UV output between 50 to 99 percent. When the system drops below 50%, a low UV warning is displayed as and alternately flashes (at 2 second intervals) back to the actual UV level.
- Page 13 Section 5.1.5 for explanation of this feature. Note: On the VIQUA systems, the audible tone provided for lamp failure is a continuous alarm, rather than the intermittent (1 second on, 1 second off) condition on the basic VIQUA systems. 5.2.5 Solenoid Output Please contact VIQUA Technical Support for assistance with solenoid valves.
-
Page 14: Troubleshooting
Troubleshooting Section 6 Troubleshooting Symptom Possible Cause Possible Solution Service pre-filtration Pressure Drop Sediment pre-filter clogged Note: Check source water supply as fluctuations may occur in source pressure Clean sleeves with scale cleaner and eliminate source of Quartz sleeves are stained or dirty staining problem (i.e, soften hard water, refer to Section 4.3) -
Page 15: Specifications
Hi-Flo Series Dose Chart Section 7 Hi-Flo Series Dose Chart SHF-290 @95%UVT SHF 180 @95%UVT SHF-140 @95%UVT E. Coli eradicated E. Coli eradicated E. Coli eradicated E. Coli eradicated E. Coli eradicated Cryptosporidium &Giardia Cryptosporidium &Giardia Cryptosporidium &Giardia Cryptosporidium &Giardia Cryptosporidium &Giardia... -
Page 16: Section 9 Manufacturer's Warranty
VIQUA warrants the electrical (controller) and hardware components to be free from defects in material and workmanship for a period of three (3) years from the date of purchase. During this time, VIQUA will repair or replace, at its option, any defective parts covered by the warranty. - Page 17 425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1 t. (+1) 519.763.1032 • tf. (+1) 800.265.7246 (US and Canada only) t. (+31) 73 747 0144 (Europe only) • f. (+1) 519.763.5069 e-mail: info@viqua.com www.viqua.com...
