Entour Haze Pro

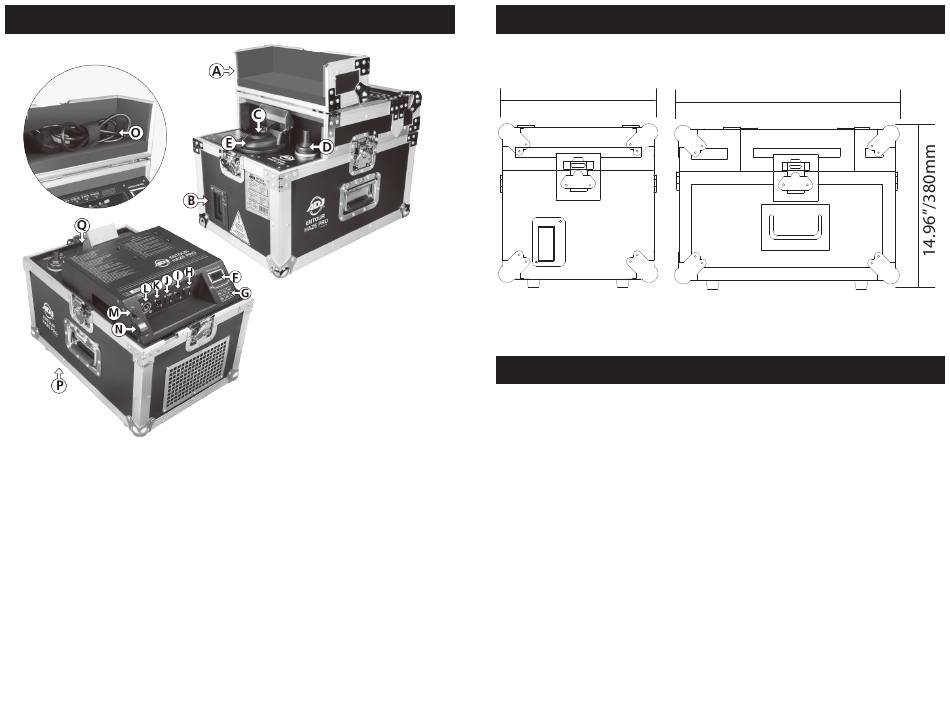

A. Flight case
B. Visible liquid level window with
blue LED
C. Smoke outlet (Liquid inlet)
D. Stopper
E. Direction turntable with magnet
F. LCD display
G. 6 Function Buttons
H. DMX 5 pin XLR output
ADJ Products, LLC - www.adj.com - Entour Haze Pro Instruction Manual Page 6
Layout
I.
DMX 5 pin XLR input
J. DMX 3 pin XLR output
K. DMX 3 pin XLR input
L. Power input (powerCON)
M. Fuse Holder
N. Power Switch
O. Wire storage belt
P. Drain valve
Q. Sponge
Entour Haze Pro
14.96"/380mm
Entour Haze Pro
1. Open the shipping carton and carefully remove the unit from the shipping
carton.
2. Be sure to remove all the packing material especially around the nozzle.
3. Set the haze machine on a flat dry surface and fill the fluid reservoir
through the haze outlet which also is the liquid inlet. Use American DJ
brand HAZE/G juice. DO NOT OVERFILL. Make sure the liquid level does
not exceed the maximum fluid level mark on the front of the haze.
4. Plug the unit in to a matching power supply.
5. Follow the operating instructions on the next pages for proper operation.
NOTE: When refilling, please wait 5 min. enabling all haze liquid to fill the
tank entirely prior to switching on.'
NOTE: When makiing short-range movement, please apply the supplied stopper
to prevent oil spill.
