Led Diagnostics; Terminal Identification - Altronix OLS180 Installation Instructions

Red (DC) Green (AC)
ON ON
ON OFF
OFF ON
OFF OFF
Terminal Legend
L, G, N
– DC +
AC FAIL
NC, C, NO
Low Battery
NC, C, NO
– BAT +
5A 250V
L
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
IIOLS180 - Rev. 010704

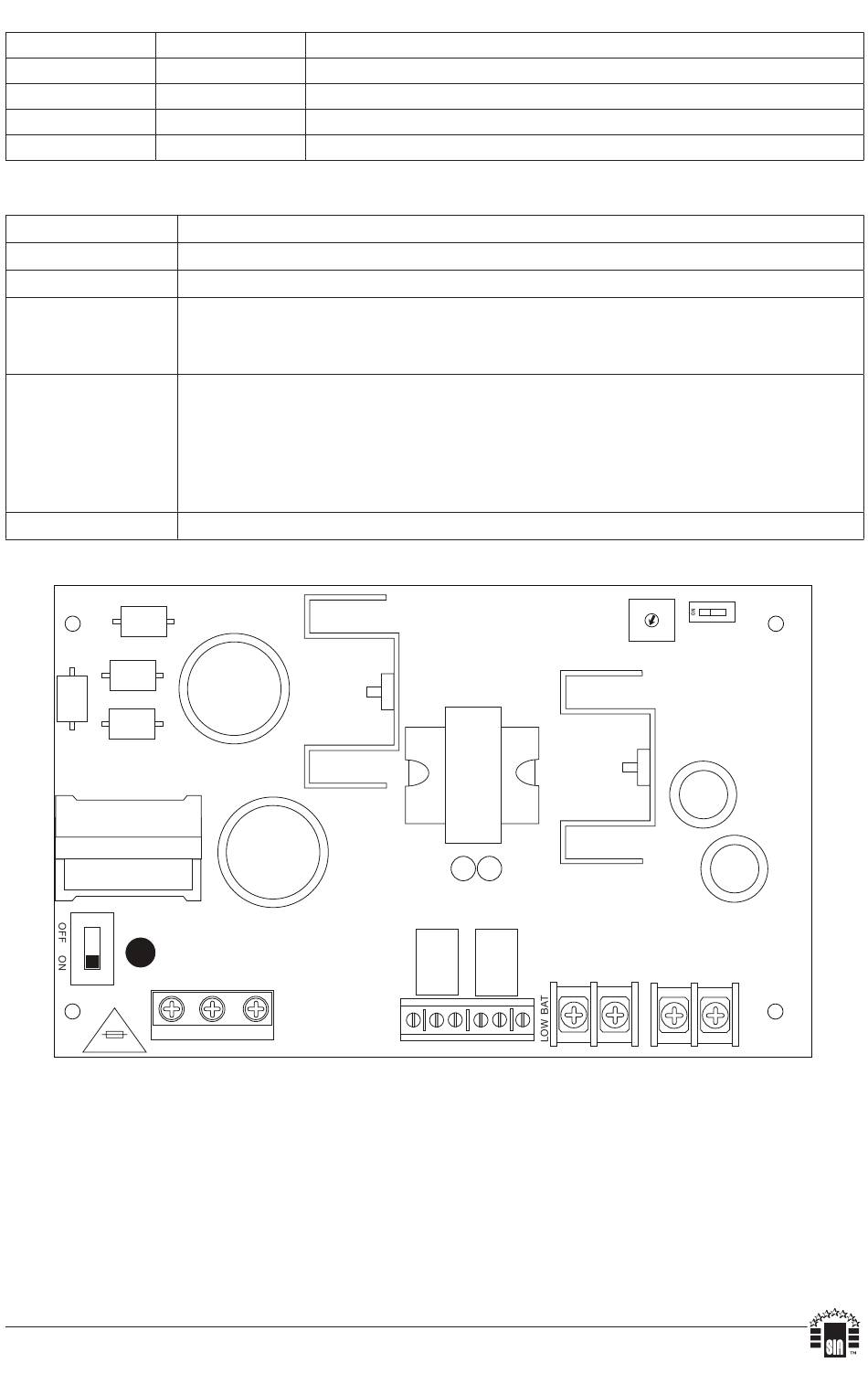

LED Diagnostics:

Power Supply Status
Normal operating condition.
Loss of AC. Stand-by battery is supplying power.
No DC output. Short circuit or thermal overload condition.
No DC output. Loss of AC. Discharged or no battery present.

Terminal Identification:

Function/Description
Connect 115VAC to these terminals: L to Hot, N to Neutral, G to ground.
12VDC / 24VDC @ 6A continuous supply current.
Used to notify loss of AC power, e.g. connect to audible device or alarm panel.
Relay normally energized when AC power is present.
Contact rating 1A @ 115VAC / 28VDC
Used to indicate low battery condition, e.g. connect to alarm panel. Relay normally
energized when DC power is present. Contact rating 1A @ 115VAC / 28VDC.
Low battery threshold:
12VDC output threshold set @ approximately 10.5VDC.
24VDC output threshold set @ approximately 21VDC.
Stand-by battery connections. Maximum charge rate 0.7A.
OLS180
G N
AC DC
AC FAIL
NC C NO NC C NO
B25S
OFF - 24V
ON - 12V
--- BAT + --- DC +
