DTH7500_en
4/07/03

Precautions and information before connecting

• Ensure that the mains supply in your house complies with that indicated on the identification
sticker located at the back of your device. Install your device horizontally, on a suitable base
(furniture), with enough space around it for ventilation (7-10 cm) • Ensure that the ventilation
slots, and the device itself, are not covered by objects such as a mat, newspapers, curtain, etc. • Do
not stack any other equipment on top of your DMR. Do not place the device on top of an
amplifier or any other equipment that gives off heat • The appliance should not be in contact with
liquids or exposed to the risk of dripping or splashing.Therefore be careful not to place any
object containing a liquid (vase, glass, bottle,...) on or near your appliance • The DMR must not be
near or exposed to a flame. For instance, do not place a candle on or near the device • Protect
the DMR from moisture and excess heat (e.g. fireplace) or equipment creating strong magnetic or
electric fields (i. e. speakers ...). Before moving the device, ensure the disc tray is empty. Switching
off the DMR to the stand-by mode does not disconnect the electricity supply. In order to
separate the device completely from the mains, it has to be disconnected by unplugging the mains
plug.When connecting, ensure that the plugs of the various cables are pushed securely into their
corresponding sockets.Your DMR is not intended for industrial use but for domestic purposes
only. Use of this product is for personal use only. Copying CDs or downloading music files for sale
or other business purposes is or may be a violation of copyright law.
Important notice: Please read the recommendations given on page 56.

Accessories provided

•
A Scart/Peritel cable (21 wired pins) – a remote control handset and 2 x AAA non
rechargeable batteries – a power supply cable – an aerial cable – infra red controller G. LINK
cable.

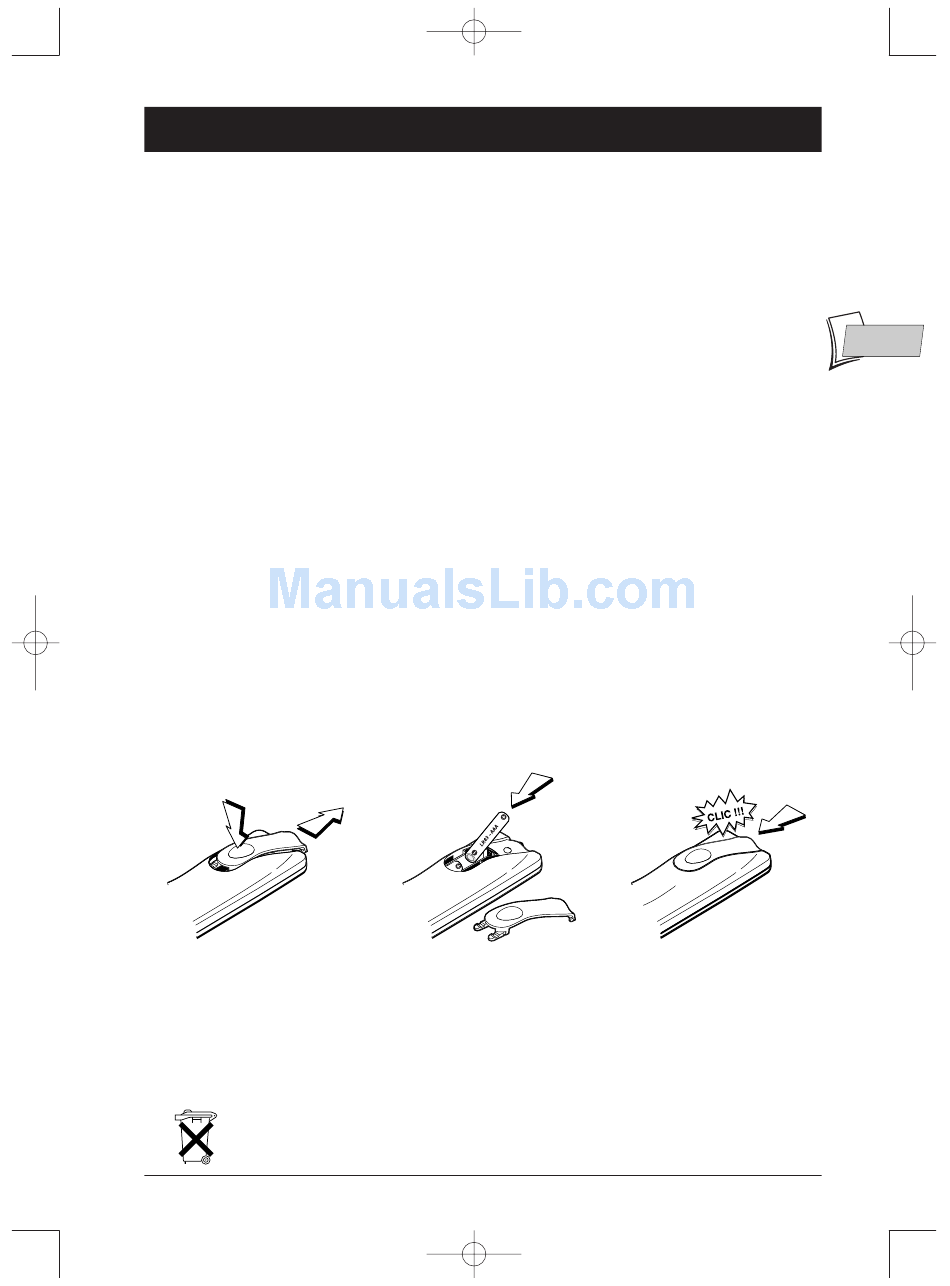

Inserting the batteries

1
Important information regarding the batteries
•
Do not mix different types of batteries or new and old batteries. Do not use rechargeable
batteries. In order to avoid any risk of explosion, observe polarities indicated inside the
battery compartment. Replace only with the type of batteries specified above. Do not throw
them into fire, do not recharge them. Remove the batteries from the remote control unit if
you are not going to use it for several weeks. Immediately remove any leaking batteries.Take
care in doing this, as leaking batteries may cause burns to the skin or other physical injury.
• Please respect the environment and prevailing regulations. Before you dispose of
batteries ask your dealer whether they are subject to special recycling and if he
accepts to take them back.
16:55
Page 1
2
Important
3
1
EN
EN
