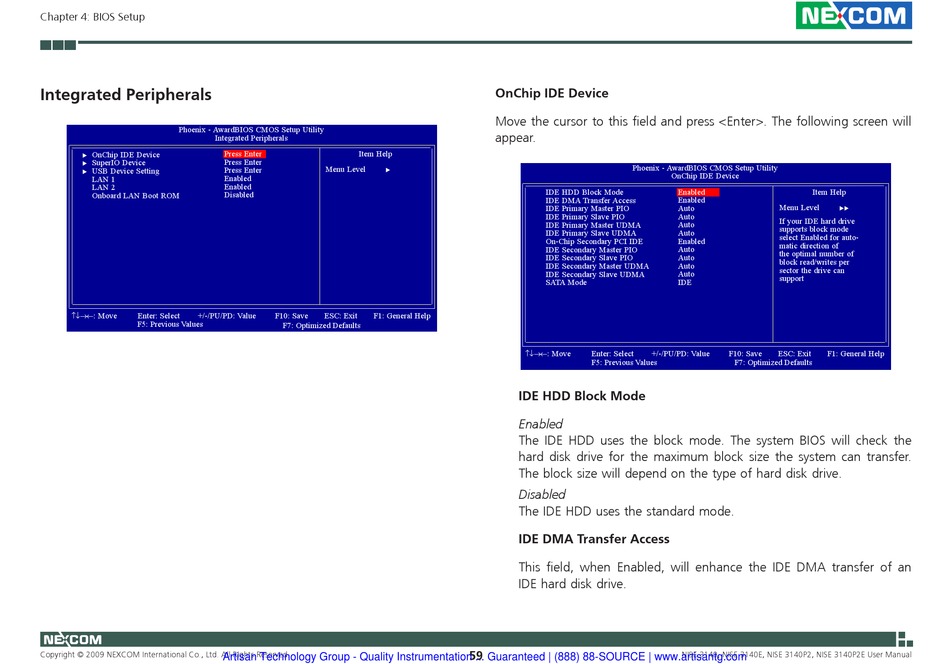

Chapter 4: BIOS Setup
Integrated Peripherals
Phoenix - AwardBIOS CMOS Setup Utility
Integrated Peripherals
OnChip IDE Device

SuperIO Device

USB Device Setting

LAN 1
LAN 2
Onboard LAN Boot ROM
: Move Enter: Select +/-/PU/PD: Value
↑↓→←
F5: Previous Values
Copyright © 2009 NEXCOM International Co., Ltd. All Rights Reserved.
Press Enter Item Help
Press Enter
Menu Level
Press Enter

Enabled
Enabled
Disabled
F10: Save ESC: Exit F1: General Help
F7: Optimized Defaults
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
OnChip IDE Device
Move the cursor to this field and press <Enter>. The following screen will
appear.
Phoenix - AwardBIOS CMOS Setup Utility
IDE HDD Block Mode
IDE DMA Transfer Access
IDE Primary Master PIO
IDE Primary Slave PIO
IDE Primary Master UDMA
IDE Primary Slave UDMA
On-Chip Secondary PCI IDE
IDE Secondary Master PIO
IDE Secondary Slave PIO
IDE Secondary Master UDMA
IDE Secondary Slave UDMA
SATA Mode
: Move Enter: Select
↑↓→←
F5: Previous Values
IDE HDD Block Mode
Enabled
The IDE HDD uses the block mode. The system BIOS will check the
hard disk drive for the maximum block size the system can transfer.
The block size will depend on the type of hard disk drive.
Disabled
The IDE HDD uses the standard mode.
IDE DMA Transfer Access
This field, when Enabled, will enhance the IDE DMA transfer of an
IDE hard disk drive.
59
OnChip IDE Device
Enabled Item Help
Enabled
Menu Level
Auto
Auto
If your IDE hard drive
Auto
supports block mode
Auto
select Enabled for auto-
Enabled
matic direction of
Auto
the optimal number of
Auto
block read/writes per
Auto
sector the drive can
Auto
support
IDE
+/-/PU/PD: Value F10: Save ESC: Exit F1: General Help
F7: Optimized Defaults
